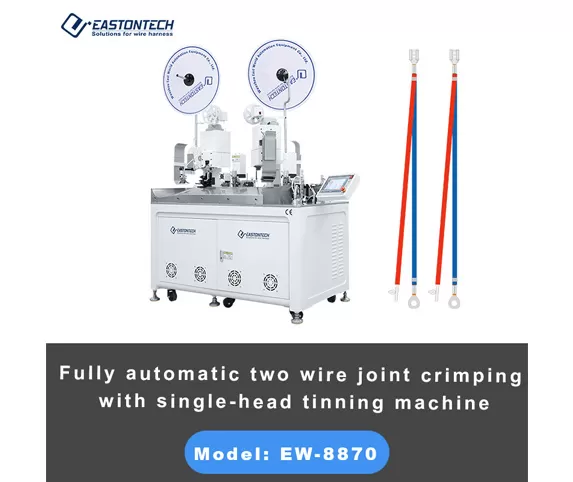

Name: EW-8870 Fully Automatic Two Wire Joint Crimping With Single Head Tinning Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8870 Fully Automatic Two Wire Joint Crimping With Single Head Tinning Machine

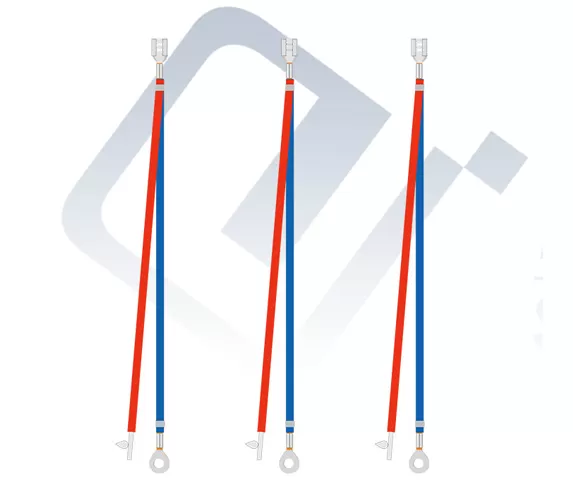

This fully automatic dual-wire terminal crimping machine features two independent wire feeding mechanisms and two terminal crimping stations, enabling simultaneous processing of two wires with different diameters and crimping of different terminals. The system performs wire cutting, stripping, and terminal crimping in a single automated workflow, with the capability to combine one end of two wires into a single terminal while independently processsing the other ends.

The versatile design prevents equipment idle time by enabling quick transitions between different product types. This adaptability makes it an ideal solution for manufacturers requiring efficient multi-wire hariness processing with consistent quality and high throughput capabilitiees.



Specifications of EW-8870 Fully Automatic Two Wire Joint Crimping With Single Head Tinning Machine

Model	EW-8870
Applicable wire range	AWG#26-AWG#16
Processing capacity	Wire length 50-100mm about 1300 sets/hour, special wire (ultra-fine soft wire) about 1000 sets/hour
Cutting accuracy	Wire length below 100mm error 0.2+(wire length x0.002), wire length above 100mm error 0.5+(wire length x0.002)
Processing length	Rubber in the middle 51mm-99999mm (can be shorter after modification)
Stripping length	Front end 0.5-8.0mm Back end 0.1-10.0mm
Cutter depth	Max. adjustment 5.50mm, resolution 0.01mm
Detection device	Low air pressure, wire presence or absence, crimping abnormality, wire entry abnormality
Power supply	Single phase AC200V~242V 50/60Hz 10A
Compressed air	0.5-0.8 MPa(5kgf/cm2) clean and dry gas
Machine dimensions	W800D1400H1800 mm
Machine weight	About 600KG
Pedal control	N/A

Features of EW-8870 Fully Automatic Two Wire Joint Crimping With Single Head Tinning Machine



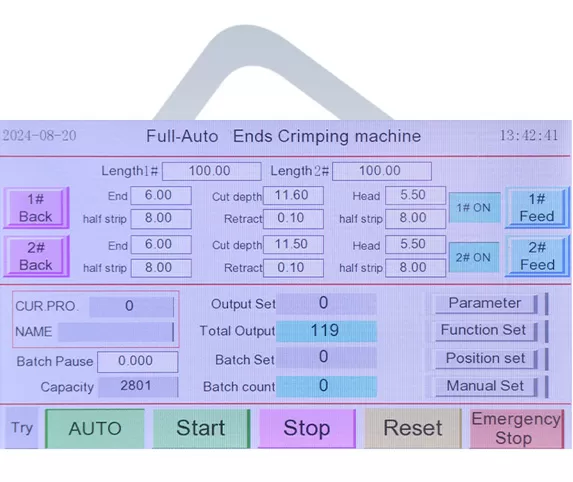

English LCD Screen

Full automatic LCD screen, easy operation, convenient adjustment(English-Chinese language)

01


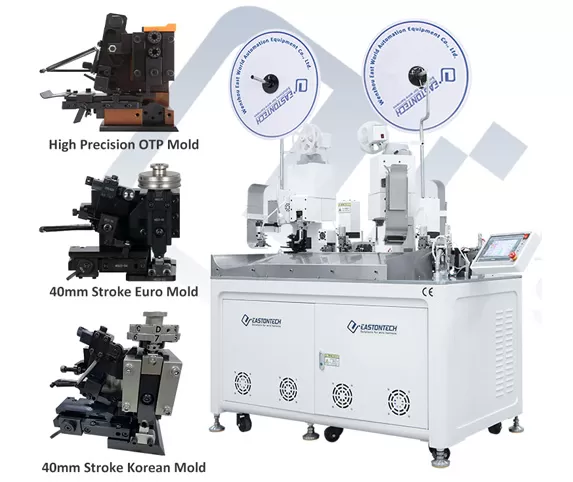

Applicator Mold

Quick and easy for applicator change. Precision wire cutting stripping and crimping, high efficiency, stable performance.

02


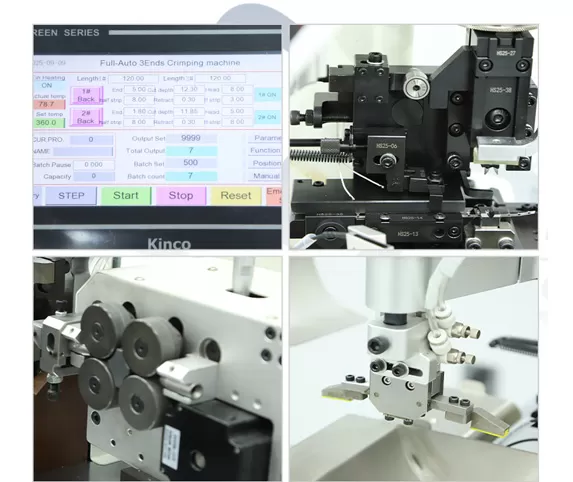

Four-wheel Synchronous Wire Feeder

The main machine has a built-in four-wheel synchronous wire feeder to maintain constant wire tension, it is equipped with an automatic terminal strip cutting device.

03


Line Straightener Components

Improved the quality and performance of the wire. Improve production efficiency and high precision. Correct and maintain the straightness of the wire. Ensure precise movement and stable performance.

04
