| Raw Material Diameter | Tube Cutting Head Max. 12.7 mm (0.5”) |
| Cable Cutting Head Max. 10 mm (0.39") | |
| Conductor Cross Section | Stranded Wire Max. 6 mm² (8 AWG) |
| Solid Wire Max. 4 mm² (12 AWG) | |
| Length Increment | 0.1 mm (0.004") |
| Feed Rate | Maximum 3.20 m/s (10.6 ft/s) |
| Interfaces | Standard: Prefeeder, Hotstamp, RS232, Foot pedal |
| Optional: Postfeed interface (CableCoiler 500) | |
| Options | Tube guides in 0.5 mm increments from 2.0 - 13 mm. Custom tube guides, custom blades |
| Noise Level | <70 dB (A) |
| Power Supply | 100 V, 115 V, 230 V or 240 V (50 - 60 Hz) |
| Dimensions (L x W x H) | 400 × 250 × 260 mm (15.7” x 9.8” x 10.2”) |
| Weight | 17 kg (38 lbs.) |

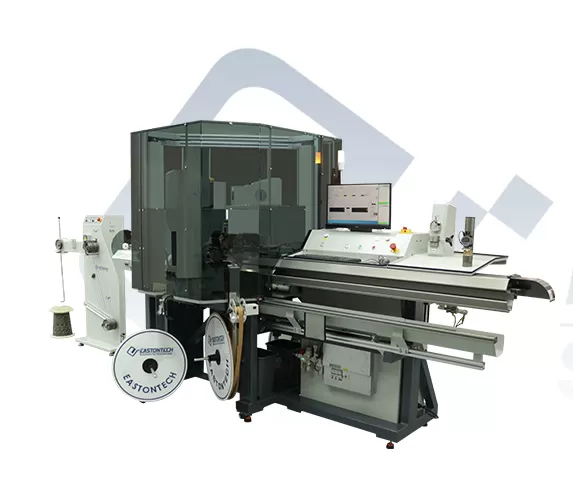

Utilizes imported high-precision Mitsubishi servo motors for wire feeding, stripping, rotation, and crimping, enabling direct programmatic control of crimp height.

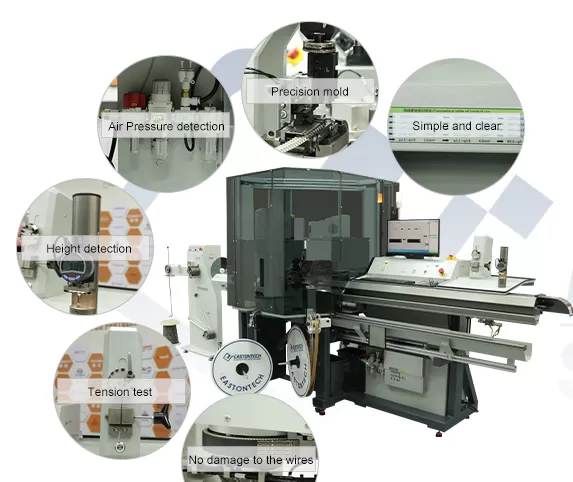

Real-time crimp force monitoring and curve analysis auto-alert and halt production if deviations occur, ensuring zero-defect output.

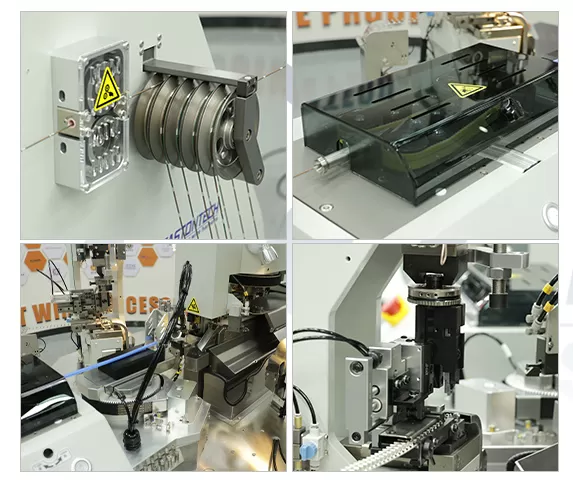

Patented synchronous belt feeding eliminates wire sheath indentation and enhances accuracy through increased contact area.
German CCD dual-lens vision system inspects stripping and crimping quality, automatically rejecting defective wires.
Rapid product changeovers: Swap crimping applicators/wire conduits via touchscreen commands, with all parameters stored in a database.
Optional dual-station waterproof plug insertion (single/double-ended) and customizable program modules for diverse wire configurations.
Windows-based HMI with intuitive graphical interface for ergonomic operation and parameter management.
Supports LAN/MES integration, QR code scanning for instant die-set parameter loading, and data traceability (e.g., optional QR printer/gun).
