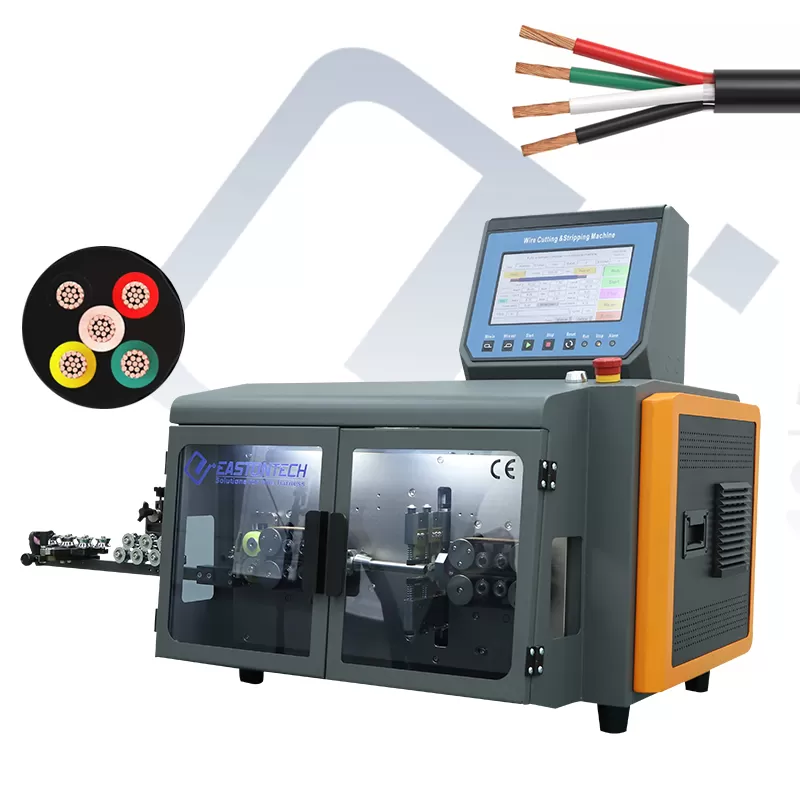

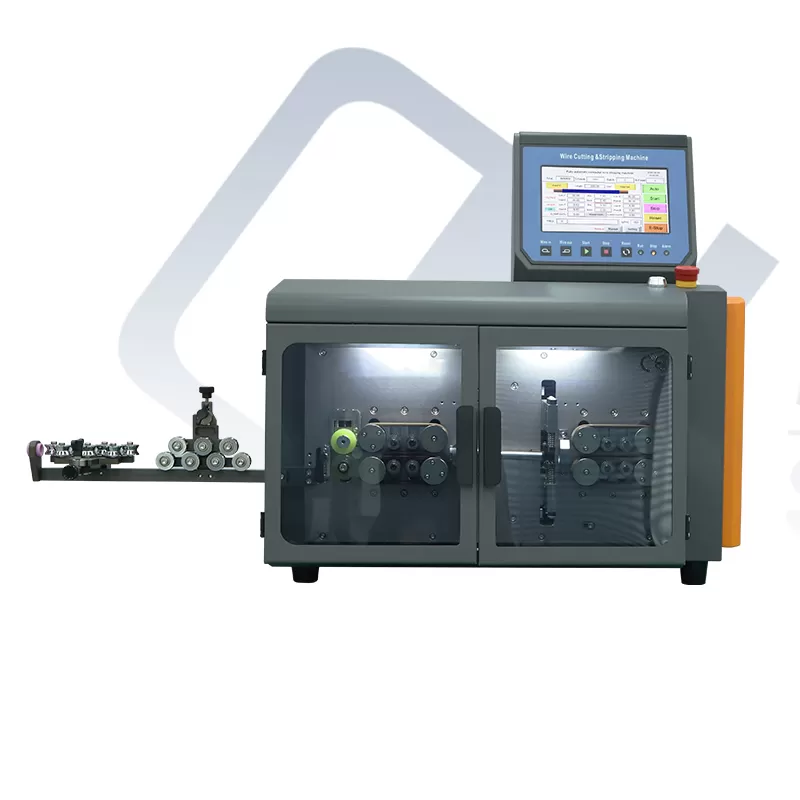

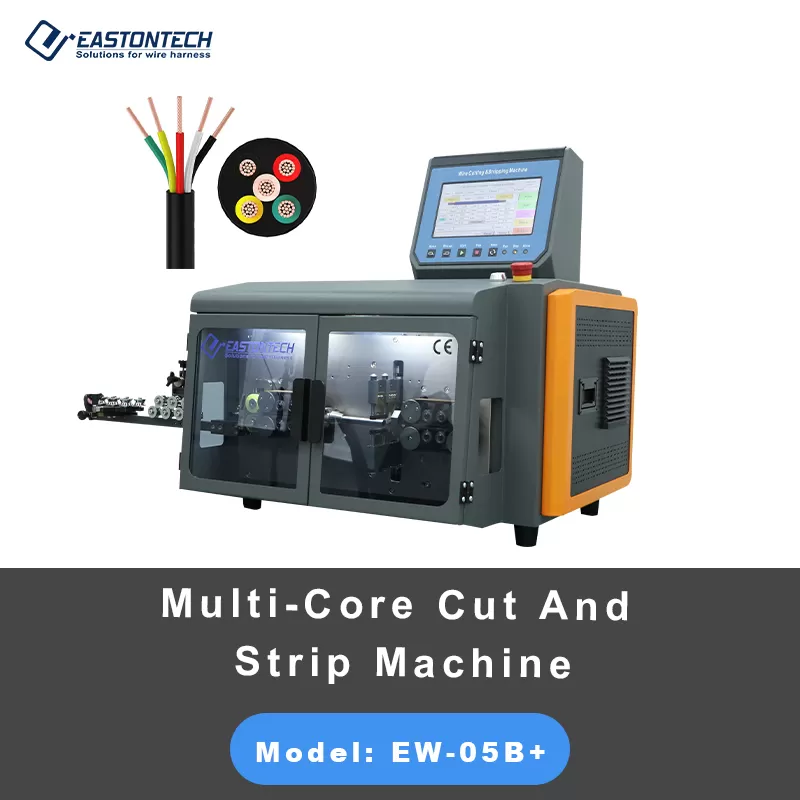

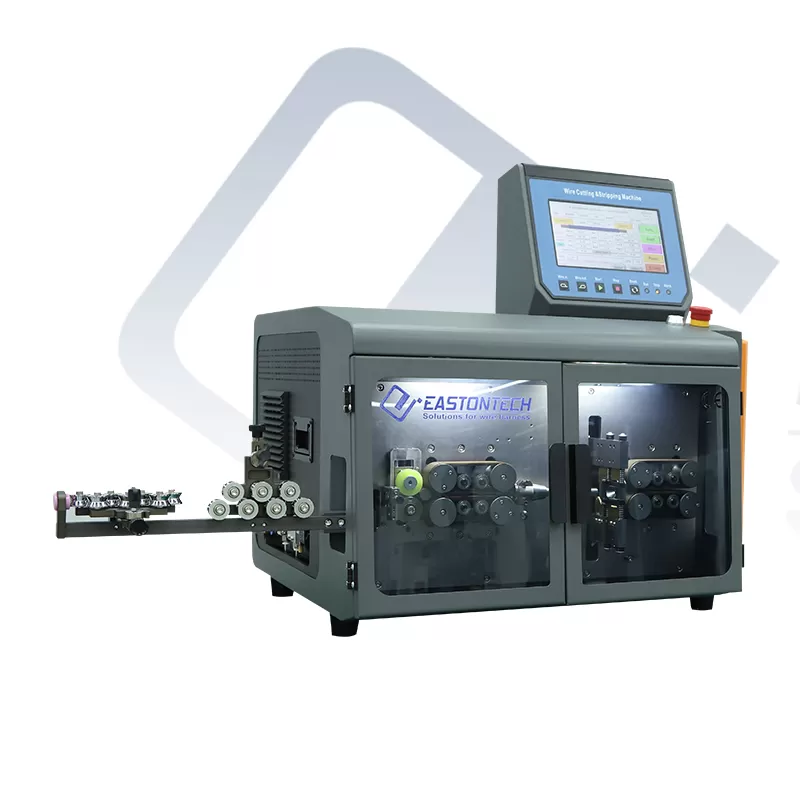

EW-05B+ Five-Wire Double-Head Crimping Machine

Conductor cross-section

0.75- 35 mm²

Core wire stripping

Sheathed cable with 10 cores or fewer

Cutting length

1 - 99999.9 mm

Cutting length tolerance

< 0.002 * L (L = cutting length)

Stripping length (side I)

Cable jacket
- Front strip: 1 - 200 mm
- Post strip: 1 - 100 mm

Core wire
- Front strip: 0.1 - 50 mm
- Post strip: 0.1 - 50 mm

Maximum guide tube diameter

Φ15

Productivity

3200 pcs./h
800 pcs./h (multi-conductor cable)

Blades material

Titanium Plated High Speed Steel

Encoder

Optional with Extra Cost

Display mode

10-inch touch screen

Driving mode

16-axis drive (feeding stepper motor, tool holder servo motor); optional servo feeding system available.

Feeding mode

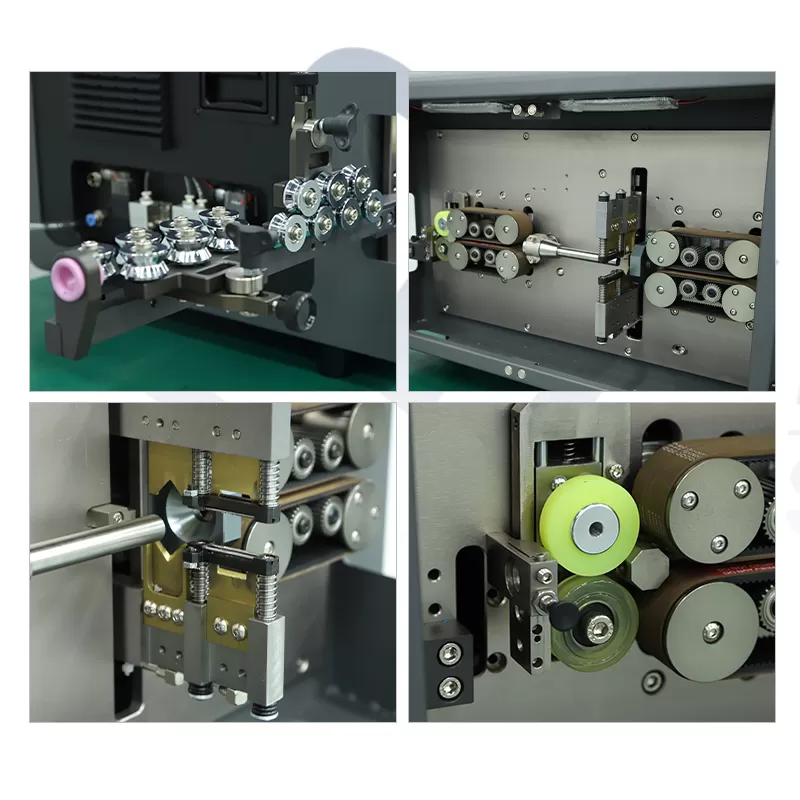

By belts Belt-driven wire feeding ensures the cable is free of indentations and scratches. (Includes stripping and crimping functions)

Power supply

110, 220 V (50 - 60 Hz)

Fault detection

Wire dispensing rack fault detection, material shortage detection, safety door detection, length error detection.

Compressed air connection

0.6 MPa

Weight

100 kg

Dimension

770* 660 * 780 mm

Remarks

Special application can be customized by sending samples

Function

① Automatic cutting and stripping of single-core wires, multi-core cables, and shielded cables;

② For multi-core sheathed wires, outer sheath stripping and inner core wire stripping and cutting are completed in one process.

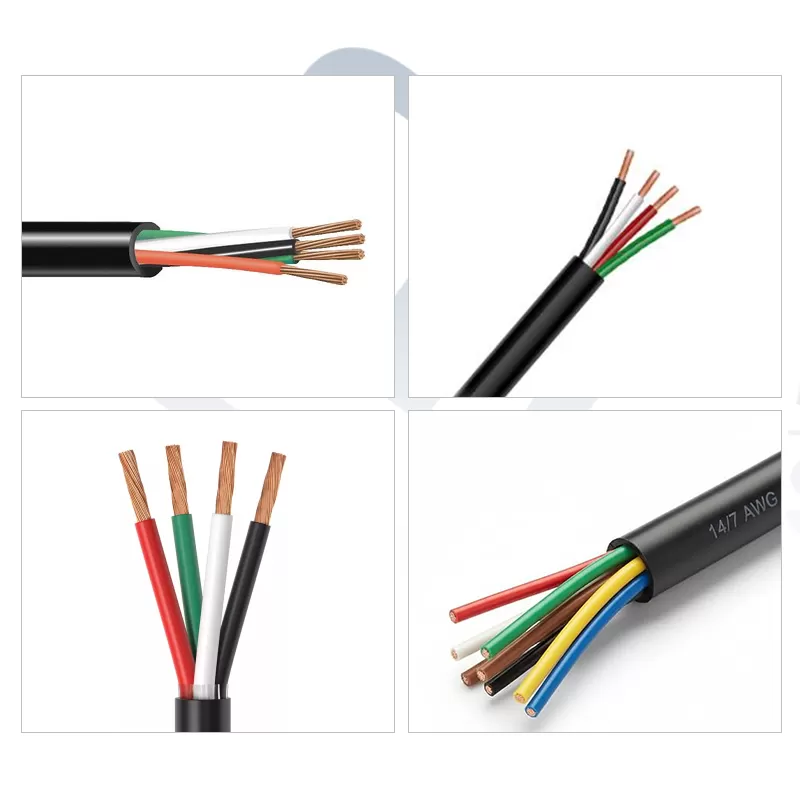

Wire type

Single-core wires, multi-core cables, sheathed wires, electrical wires, PVC, etc.

Minimum total peeling length

Total length - front stripping length - rear stripping length > 120mm

Cut length detection

An encoder is used to detect the wire length; if it exceeds the allowable error range, the machine will stop and an alarm will be triggered.

Lifting and lowering operation method

Digitally adjustable roller height

Program storage

100 program storage slots (expandable to a maximum of 1000)

External expansion

MES system, Internet of Things system, fixed-point inkjet printing function, fixed-point laser marking system, single-drum winding, double-drum winding, RS232 external communication, mid-strip function, external auxiliary equipment alarm;
