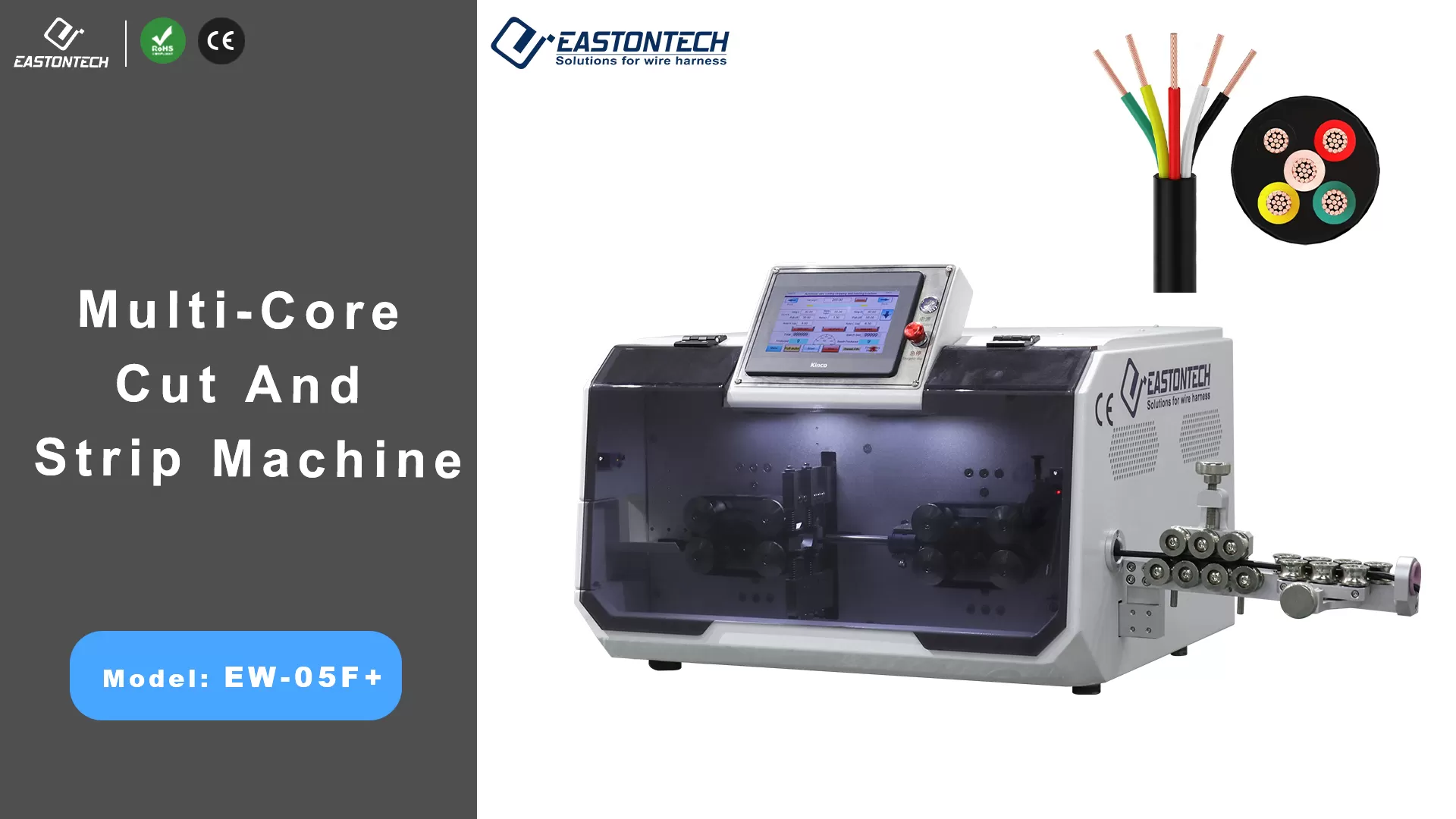

EW-05F+ Multi-conductor Cable Cutting & Stripping Machine

Conductor cross-section

0.75 - 30 mm²

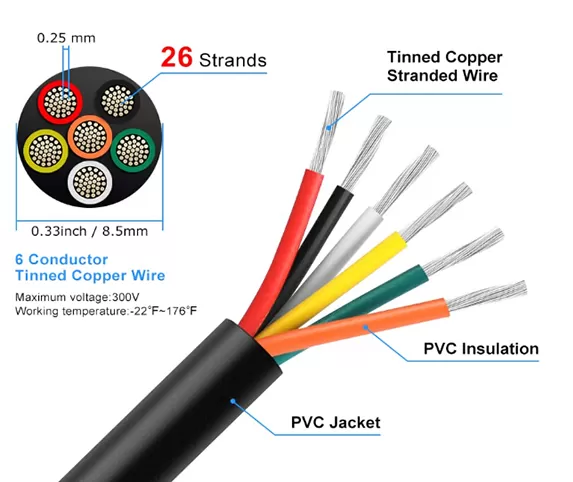

Cable

Single core cable,Multi-conductor cable,Sheathed cable,PVC cable etc.

Core wire stripping

2-10 cores

N/A

Cutting length

1 - 999,999.9 mm

Cutting length tolerance

< 0.002 * L (L = cutting length)

Stripping length (side I)

Cable jacket

- Full strip: 10 - 200 mm

- Half strip: 1 - 800 mm

Core wire

- Full strip: 1 - 50 mm

- Half strip: 5 - 200 mm

Full strip: 10 - 200 mm

Half strip: 1 - 800 mm

Stripping length (side II)

Cable jacket

- Full strip: 10 - 80 mm

- Half strip: 1 - 300 mm

Core wire

- Full strip: 1 - 50 mm

- Half strip: 5 - 80 mm

Full strip: 10 - 80 mm

Half strip: 1 - 300 mm

Maximum guide tube diameter

18 mm

Productivity

2000 pcs./h

900 pcs./h (multi-conductor cable)

2000 pcs./h

Blade material

Imported high speed steel

Display mode

7-inch touch screen

Driving mode

Servo motor cutting with 16 roller driving system

Feeding mode

Belts feeding with pressure stripping function.

Roller Gap

Digital program control

Power supply

110, 220 V (50 - 60 Hz)

Power

1.1 kW

Compressed air connection

0.5 - 0.7 MPa

Weight

95 kg

Dimension

680 * 605 * 520 mm

Remarks

Custom options by sending samples
