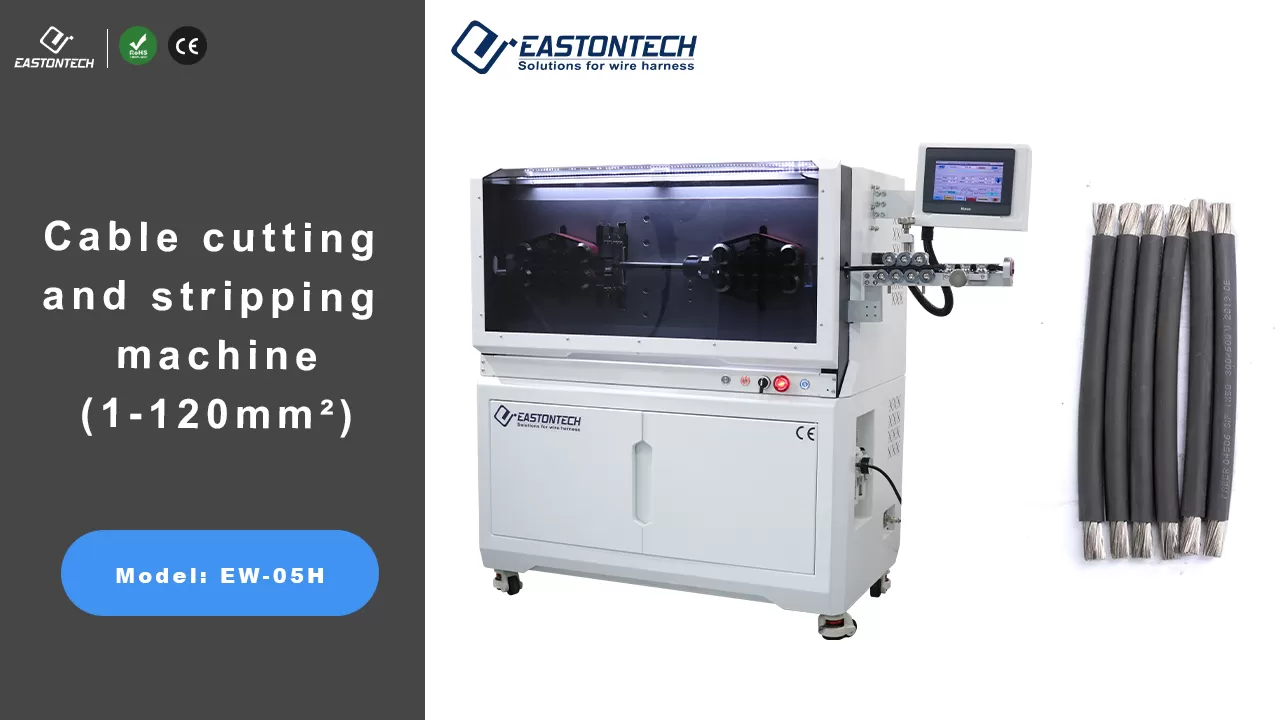

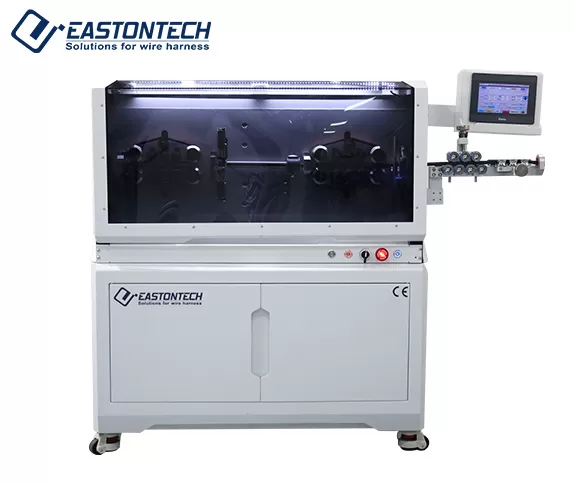

Model | EW-05H | EW-05H+ |
Conductor cross-section | 2.5 - 120 mm² | 2.5 - 120 mm² |
Core wire stripping | N/A | 2 - 10 cores |
Cutting length | 1 - 99999.9 mm | 1 - 99999.9 mm |
Cutting length tolerance | < 0.002 * L (L = cutting length) | < 0.002 * L (L = cutting length) |
Stripping length (side I) | - Full strip: 1 - 300 mm - Half strip: 1 - 1000 mm | Cable jacket - Full strip: 20 - 250 mm Core wire - Full strip: 1 - 50 mm |
Stripping length (side II) | - Full strip: 1 - 150 mm - Half strip: 1 - 500 mm | Cable jacket - Full strip: 20 - 200 mm Core wire - Full strip: 1 - 50 mm |
Maximum guide tube diameter | 30 mm | 27mm |
Productivity | 2000 pcs./h | 2000 pcs./h |
Blade material | Imported high speed steel | Imported high speed steel |
Display mode | 7-inch touch screen | 7-inch touch screen |
Driving mode | 24-wheel driving, servo tool holder | 24-wheel driving, servo tool holder |
Feeding mode | By belts | By belts |
Power supply | 110, 220 V (50 - 60 Hz) | 110, 220 V (50 - 60 Hz) |
Power | 2.25 kW | 1.85 kW |
Compressed air connection | 0.5 - 0.7 MPa | 0.5 - 0.7 MPa |
Weight | 260 kg | 260 kg |
Dimension | 1020 * 590 * 1140 mm | 1020 * 590 * 1140 mm |
Remarks | Custom options in accordance with samples | |
Handles wires from 2.5 to 120 mm², including shielded cables and complex multi-core configurations, with zero surface damage thanks to its belt-driven feed system.
Achieves cutting tolerances within ±0.002×L and supports multi-stage stripping (front/rear, full/half) with lengths up to 1,000 mm, ensuring consistent quality for critical applications.

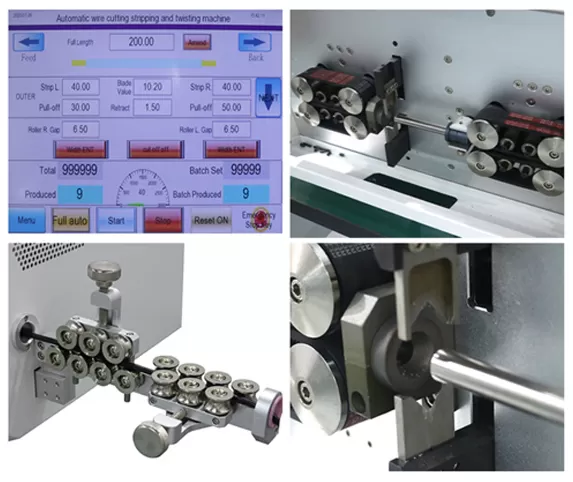

Features 24-wheel drive with servo motors, step-motor lifters, and pneumatic tube positioning for smooth, high-speed operation. Optional servo feeding enhances efficiency.
Offers IoT/MES connectivity, optional spray marking, mid-stripping functions, and custom non-standard solutions. Modular interfaces enable easy integration with peripherals and future upgrades.
