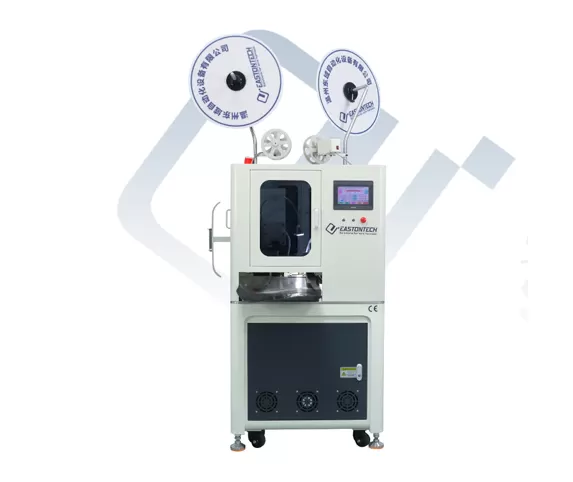

Name: EW-2105 Full Automatic Terminal Machine Press Machine (Double Head)
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

ew 2105 full automatic terminal machine press machine double head video

ew 2105 full automatic terminal machine press machine double head china

ew 2105 full automatic terminal machine press machine double head factory

ew 2105 full automatic terminal machine press machine double head suppliers

ew 2105 full automatic terminal machine press machine double head manufacturers

ew 2105 full automatic terminal machine press machine double head cost



Specifications of EW-2105 Full Automatic Terminal Machine Press Machine (Double Head)

Model	EW-2105
Applicable wire range	AWG28-AWG12
Stripping length	0-10mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	45-9999mm
Capacity	3000-4500pcs/hour
Crimping force	2.0T

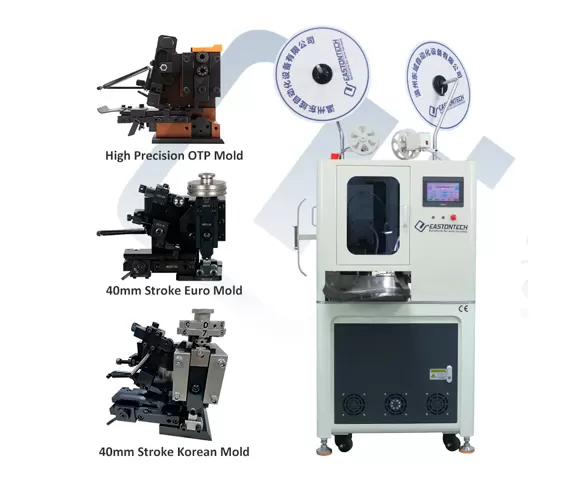

Applicators	30mm or 40mm strokes for optional
Air pressure	0.4-0.6Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	7008001500mm
Weight	358Kg
Power cord plug	European, USA, Chinese plug

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile Glass Braiding

Tefzel®

PUR

PVC

Processing Capabilities

Full Strip

Discrete Wire Crimping

Crimp to Crimp (Closed Barrel)

Crimp to Crimp
