Name: EW-21F
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-21F

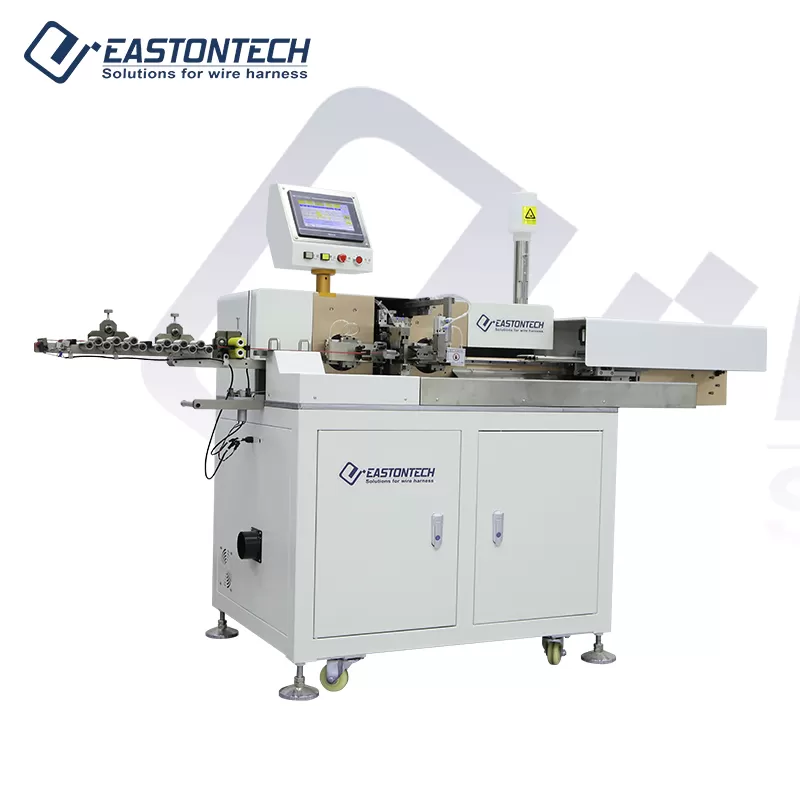

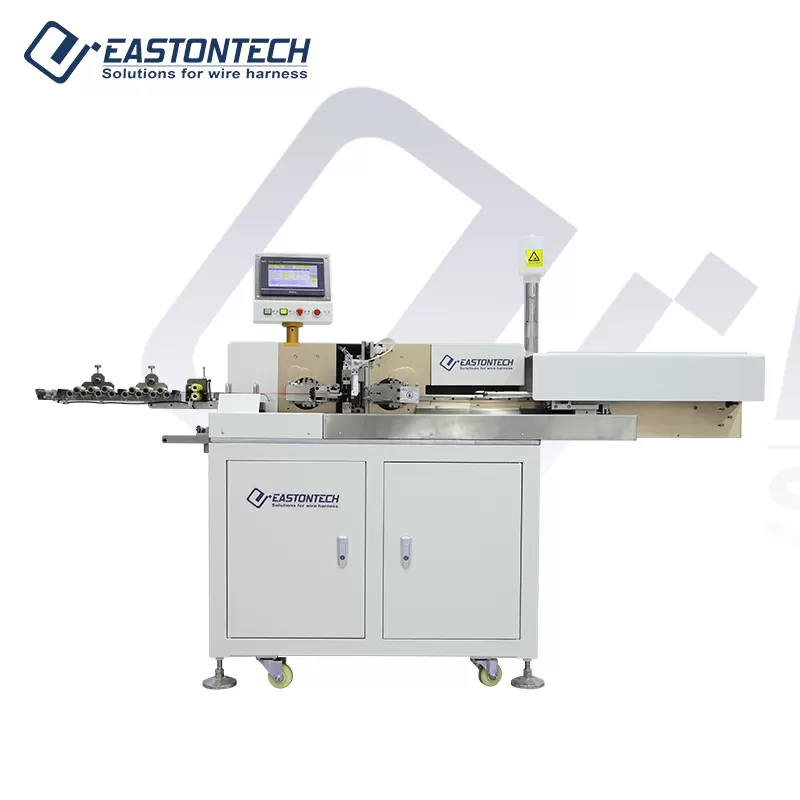

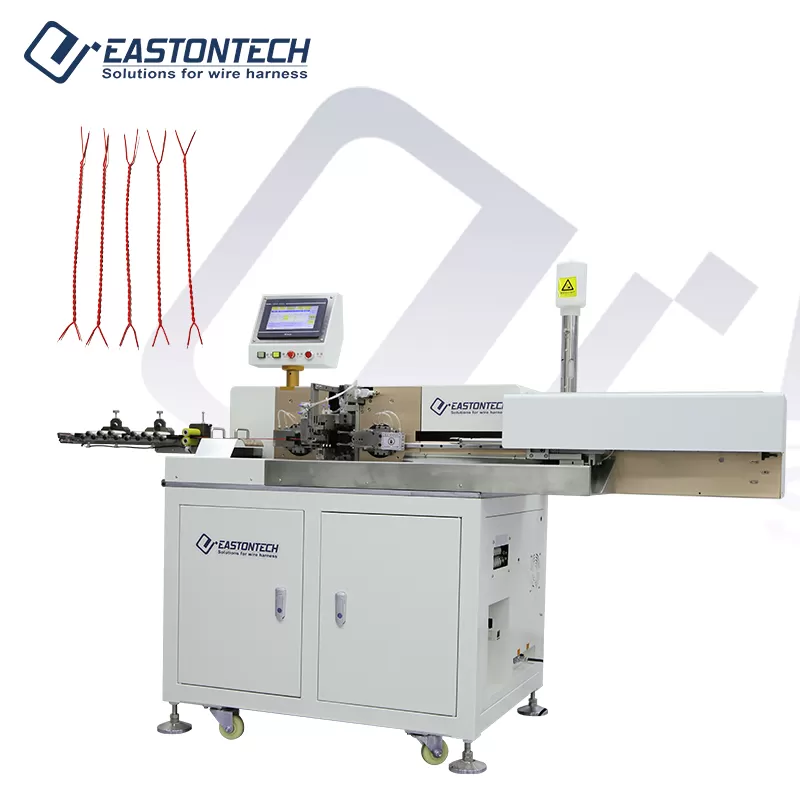

This automatic double side wire tinning/soldering machine integrates compreheensive wire processing capabilities, including dual-end stripping, dual-end semi-stripping, dual-end twisting, and dual-end tinning functions. The machine simultaneously outputs 8 wires, significantly enhancing production efficiency in industrial wire harness manufacturing,we can also customize the machine to process ribbon cables and multi-core flat cables.



Specifications of EW-21F

Model	EW-21F
Applicable wire range	AWG24-AWG32
Stripping length	0.1-6mm
Cut precision	±(0.2+0.02*L) mm
Cutting length	50-400mm

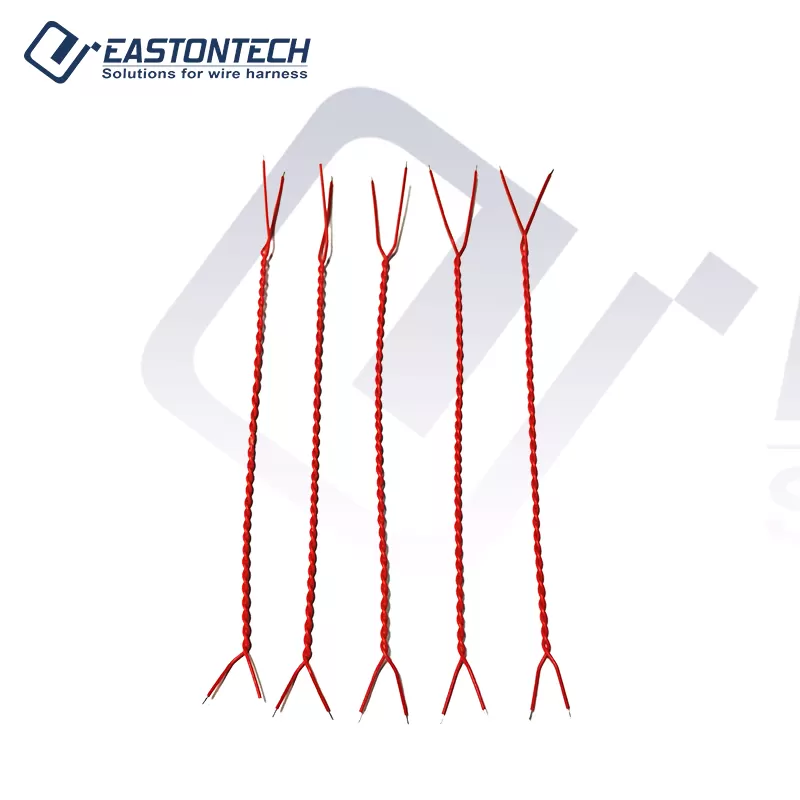

Twisting length	3-5mm
Strand length	30-400mm
Capacity	1200-1800pcs/hour
Power	220V/110V/50/60HZ
Air pressure	0.5-0.7Mpa
Driving motor	Mitsubishi servo, industrial computer control
Weight	430Kg
Options	CCD visual Inspection; CFM

Features of EW-21F



English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)

01


Servo Control

The whole machine adopts servo control 90tin dipping uniformity and depthtrue.

02


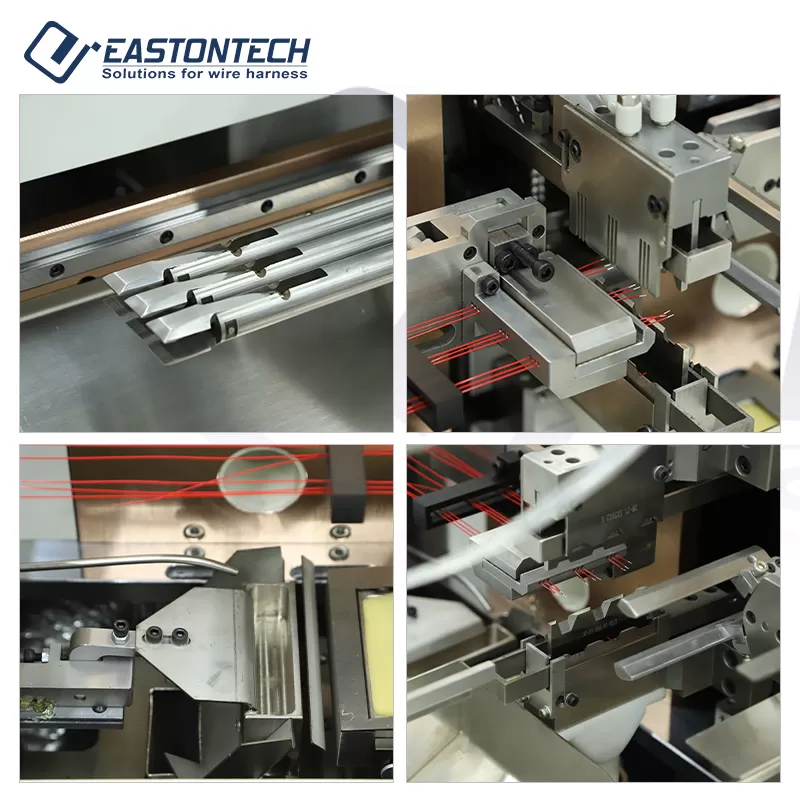

Precision Tool Holder

Imported tungsten steel blades with high precision: wire cutting is smoother and more beautiful, with high work efficiency and longer service life.

03


Air Pressure Regulating Valve

This Durable and corrosion-resistant, higher precision and longer life.
