Model | EW-21G | EW-21G-2 |
Wire range | AWG20-32 (Two wheel feeding) | AWG18-14(Four wheel feeding) |
Cutting length | 13(Full length)-99999mm | 13(Full length)-9999mm |
Stripping length | Side A:0-10mm/ Side B: 0-15mm | Side A:0-10mm/ Side B: 0-15mm |
Twisting length | 15mm | |
Tinning length | 15mm | 15mm |
Capacity | 3000-3600 pcs./h (100-600mm, tinning without twisting) | 2200-2300 pcs./h (100-600mm, tinning and twisting) |
Length accuracy | 1mm ± (0.02 * L) mm | 0.2mm ± (0.02 * L) mm |
Air pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
Crimping force | 2.0T | 2.0T |
Display | Touch Screen | Touch Screen |
Options | CCD visual Inspection; CFM | CCD visual Inspection; CFM |

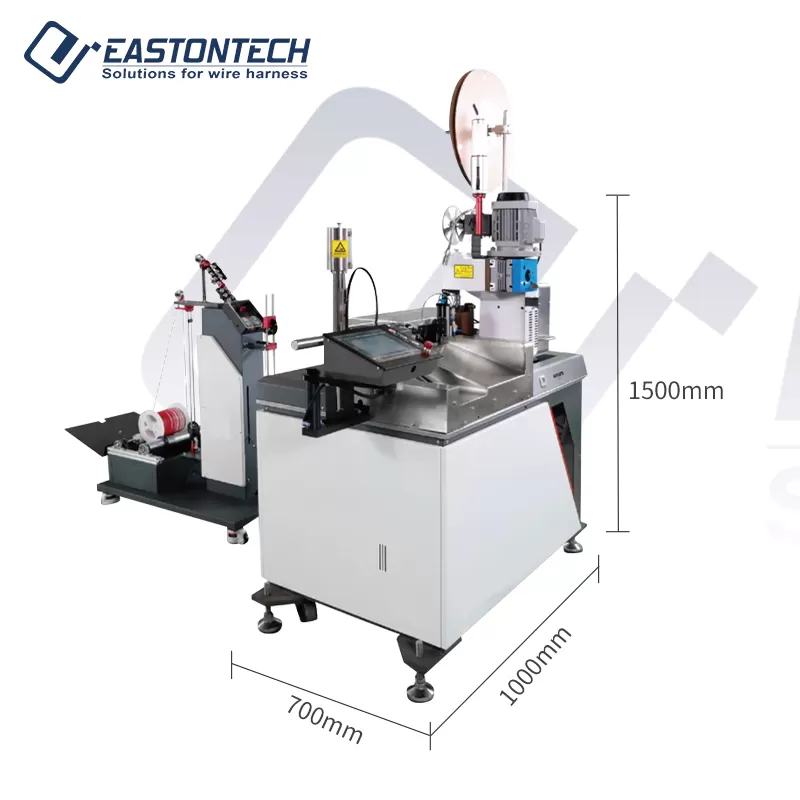

Dimension | 1000*700*1550mm | 1000*700*1550mm |
Weight | 450Kgs | 450Kgs |

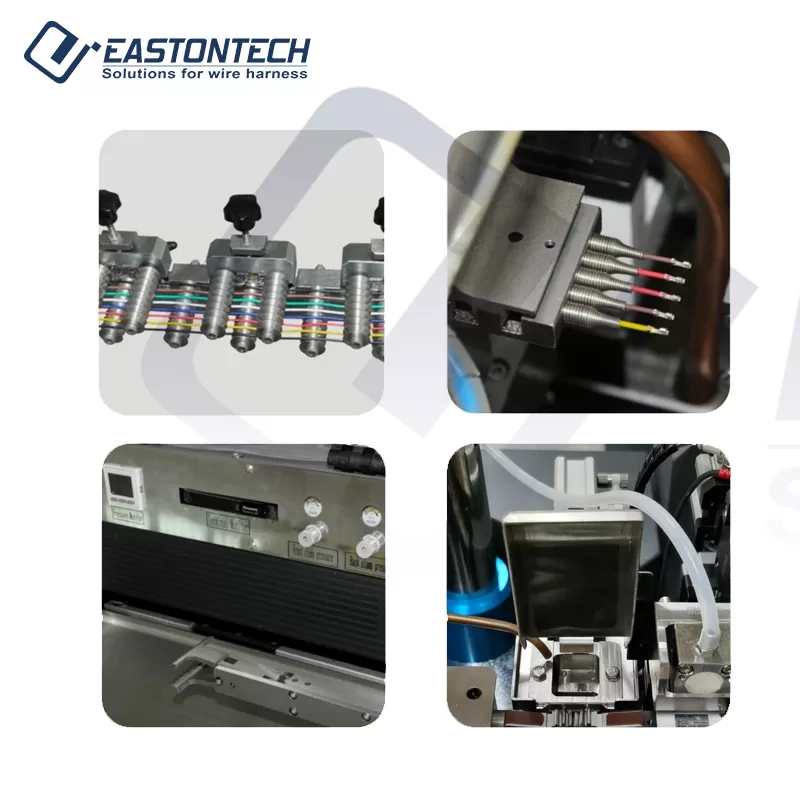

Quick and easy for applicator change

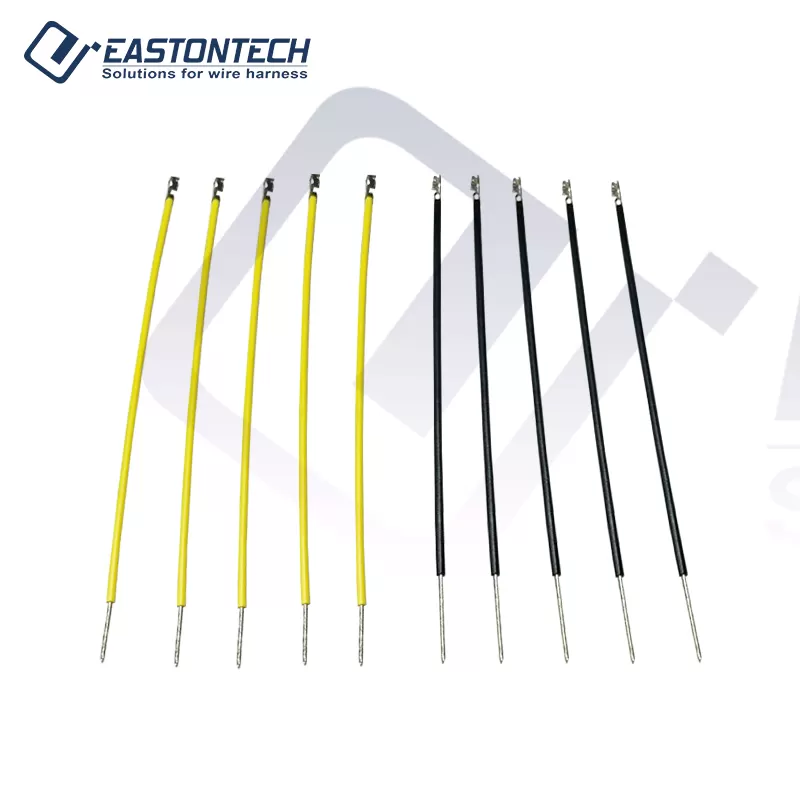

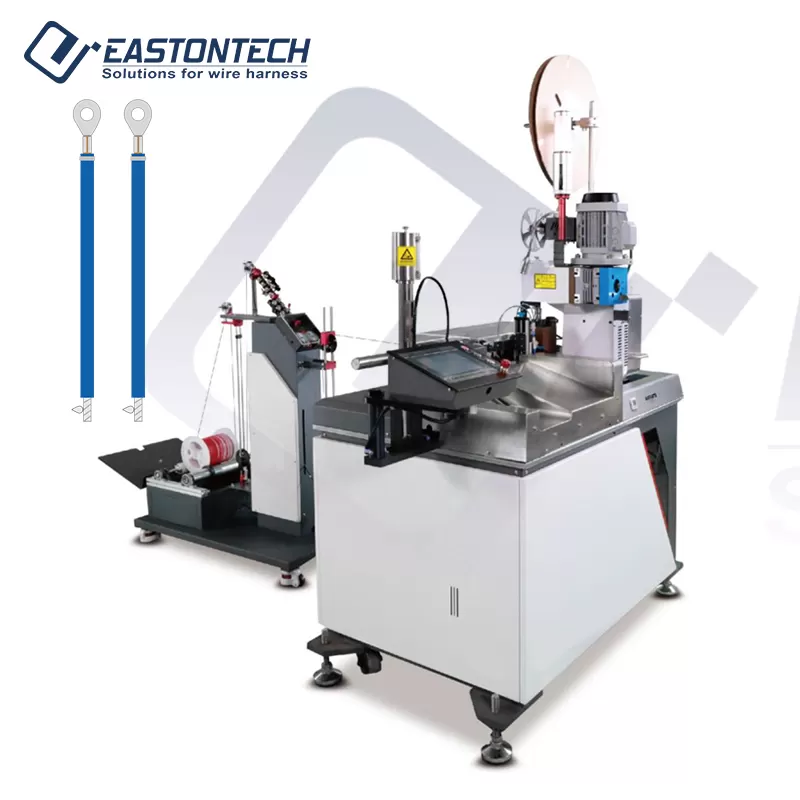

Precision wire cutting stripping and crimping
Full servo screw, high precision, improve efficiency, stable performance
Automatic tin dppneumatic regulating valve.
Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)
