Name: EW-21T
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-21T

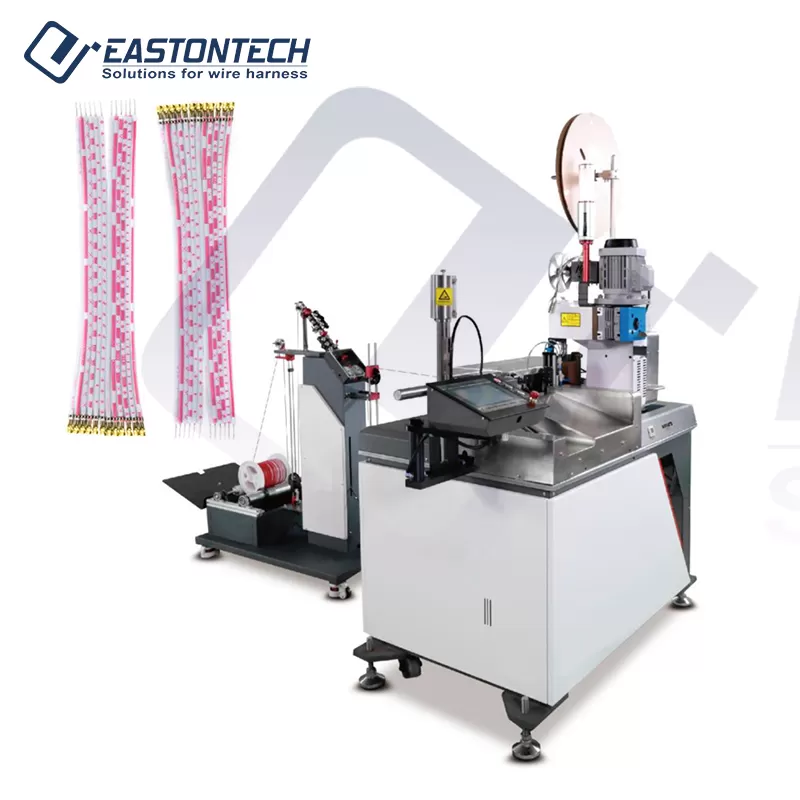

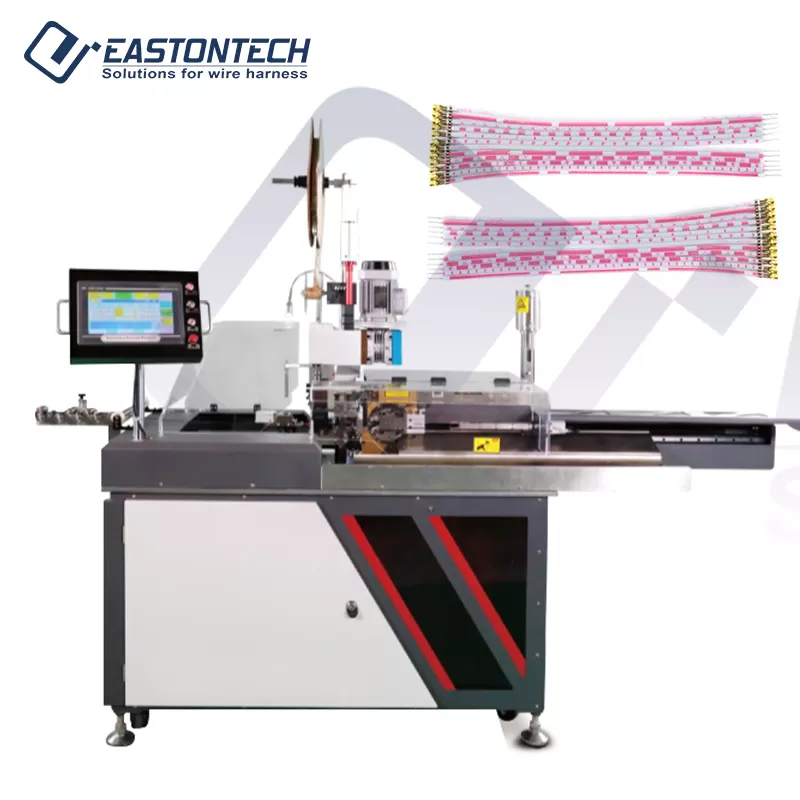

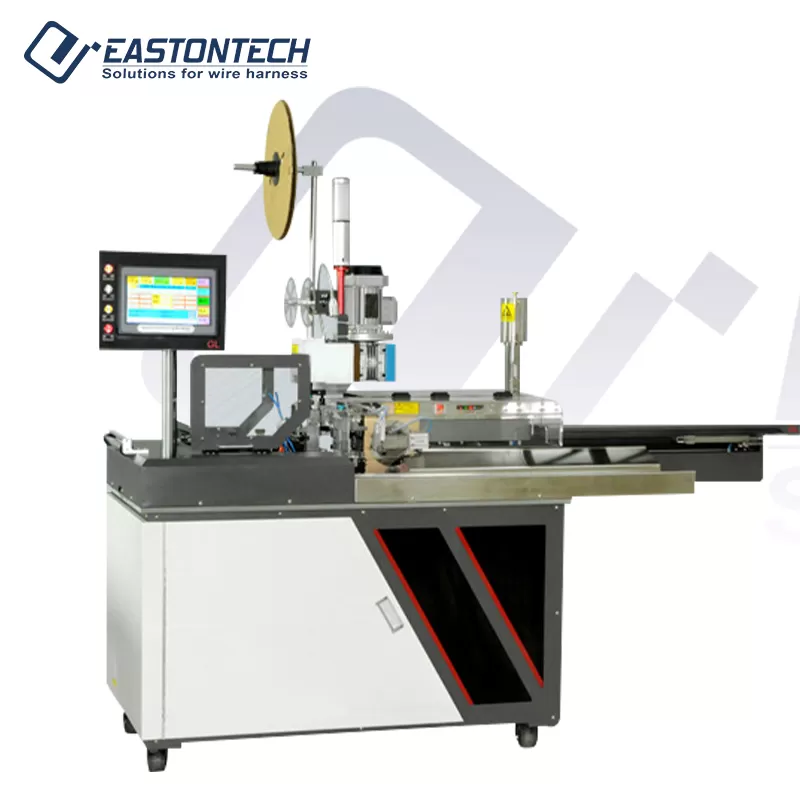

This fully automatic ribbon cable crimping and tinning machine is specifically engineered for high-precision processing of flat ribbon cables.The integrated system seamlessly combines ribbon cable cutting, stripping, crimping, and tinning operations to deliver complete cable assemblies in a single automated process.

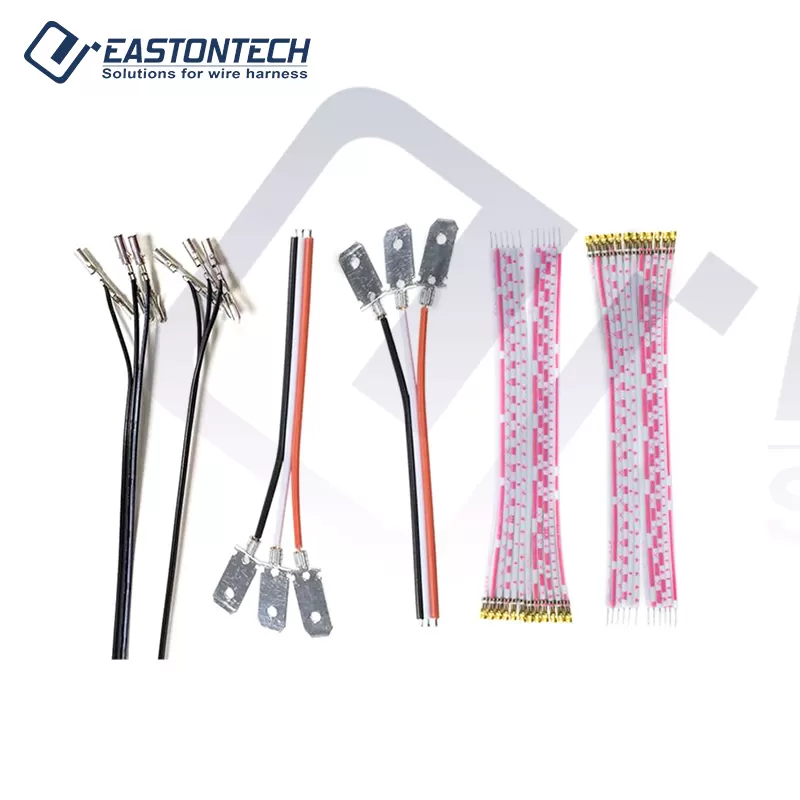

Designed for ribbon cable applications in electronics manufacturing, this crimping and tinning solution handles both flat ribbon cables and standard electronic wires. The advanced crimping mechanism ensures reliable terminal connections while the precision tinning process creates perfectly prepared wire ends for superior solderability.



Specifications of EW-21T

Model	EW-21T
Wire range	OD 0.7-2.0mm, 2P-20P
Cutting length	30-1000mm
Stripping length	0-7mm(7-15mm can be customized)
Twisting length	0-7mm(7-15mm can be customized)
Terminal type	1.5/2.0/2.54/3.96 horizontal molds(some vertical molds)
Capacity	750 pcs./h(L=300mm, 2P/3P/4P can process multiple pieces at the same time)
Length accuracy	1mm ± (0.02 * L) mm
Air pressure	0.5-0.7Mpa
Crimping force	2.0T
Display	Touch Screen
Options	CCD visual Inspection; CFM
Dimension	10007301500mm
Weight	600Kgs

Features of EW-21T



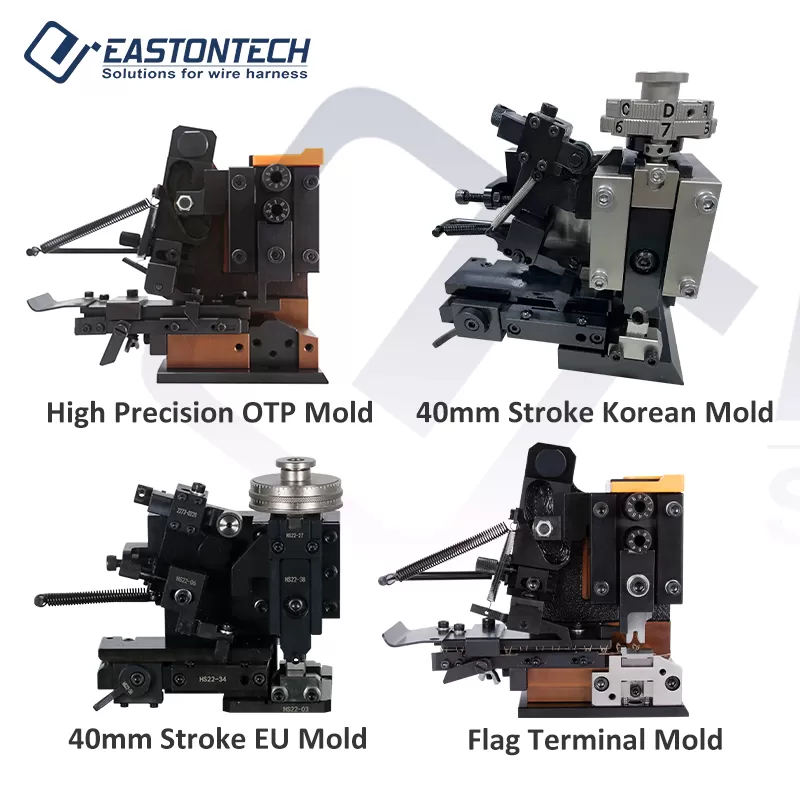

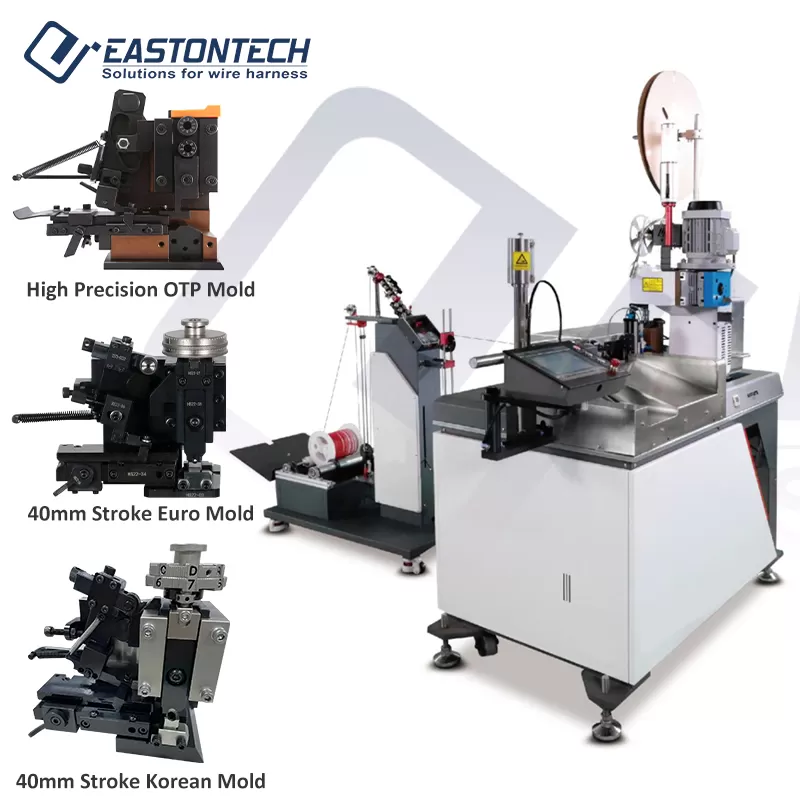

Applicator/Mold

Quick and easy for applicator change.
Precision wire cutting stripping and crimping.
Full servo screw, high precision, improve efficiency, stable performance.

01


English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)
