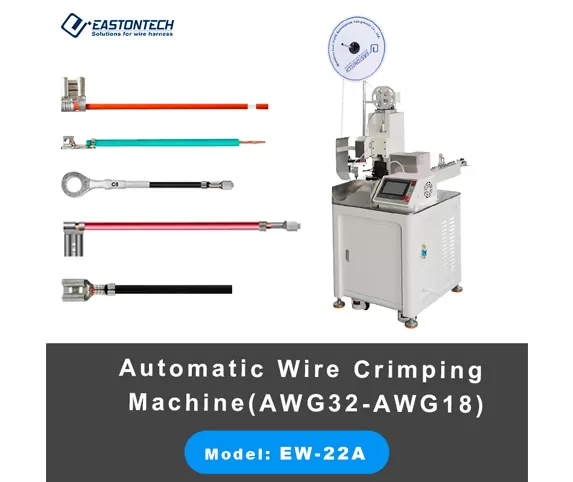

Model | EW-22A | EW-22A-1 |
Applicable wire range | AWG32-AWG18 | AWG32-AWG18 |
Stripping length | 1-10mm | 1-10mm |
Cut precision | ±(0.2+0.02*L) mm, L=cut length | ±(0.2+0.02*L) mm, L=cut length |
Cutting length | 8-9999mm | 20-9999mm(With twist) |
Capacity | 3800-5000pcs/hour | 3800-5000pcs/hour |
Twisting function | N/A | Yes |
Twisting length | 3-12mm | |
Crimping force | 2.0T | 2.0T |
Applicators | 30mm or 40mm strokes for optional | 30mm or 40mm strokes for optional |
Air pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Dimension | 650*700*1500mm | 650*700*1500mm |
Weight | 240Kg | 240Kg |
Power supply | 220V/110V/50HZ/60HZ | 220V/110V/50HZ/60HZ |

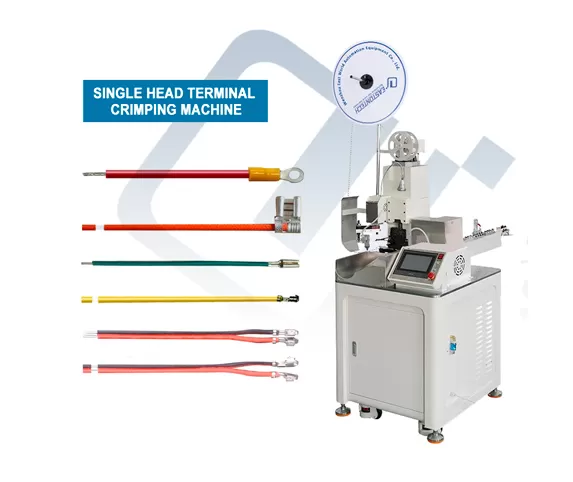

Integrates cut-strip-crimp to reduce touchpoints and operator time. Standard cut length 8–9,999 mm (EW-22A); with twisting (EW-22A-1) 20–9,999 mm. Designed for stable volume output in shift-long production (typ. 3,800–5,000 pcs/h).

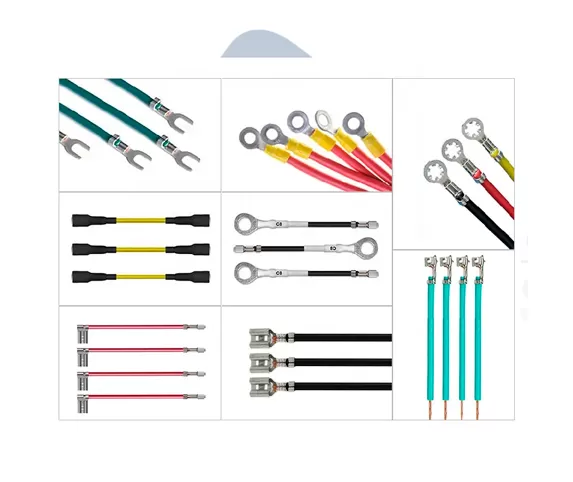

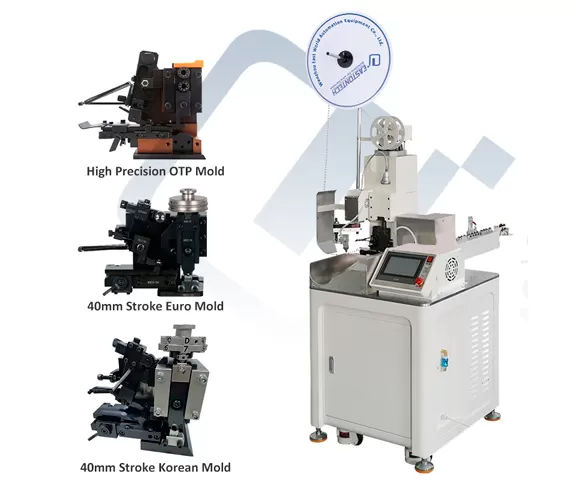

Cut-to-length accuracy ±(0.2 + 0.02×L) mm, strip length 1–10 mm, and a 2.0-ton press deliver repeatable open-barrel/closed-barrel terminations, ensuring reliable crimp and seal performance. Compatible with 30 mm or 40 mm-stroke applicators to match different terminal families and crimp heights.
Intuitive color touch HMI with bilingual interface stores product programs for one-touch recall. Quick-change applicator design shortens setup time between wire sizes, terminals, and strip/twist requirements.
Standard detection covers wire run-out, low air pressure, and terminal errors; optional CFM provides real-time force-curve monitoring with automatic alarms. The result is traceable process control and fewer defects from the first piece to the last.
