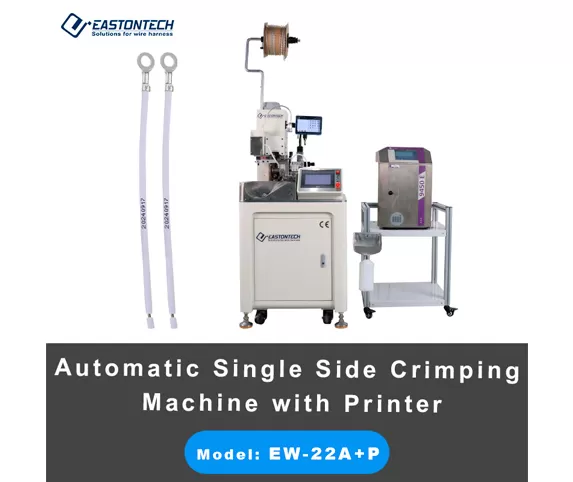

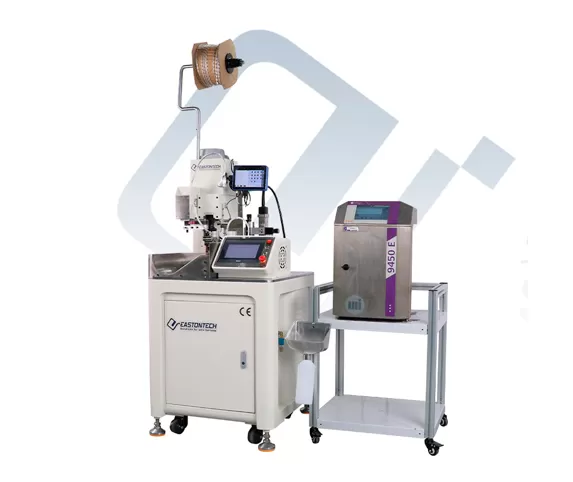

EW-22A+P Automatic Single Side Terminal Crimping with Printing

Eliminate a standalone marking station. The integrated inkjet module prints IDs, logos and lot/date codes during the feed cycle, reducing handling, preventing mix-ups and preserving the machine's nominal throughput, which is critical for lean crimp and seal production workflows.

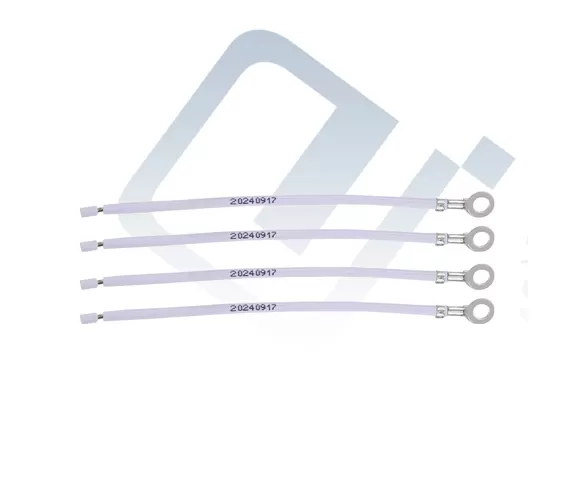

Industrial inkjet technology produces high-contrast characters on typical wire jackets (e.g., PVC, PE, XLPE, fluoropolymer, silicone). Supports fixed and variable data so each harness can carry traceable information from the first piece to the last.

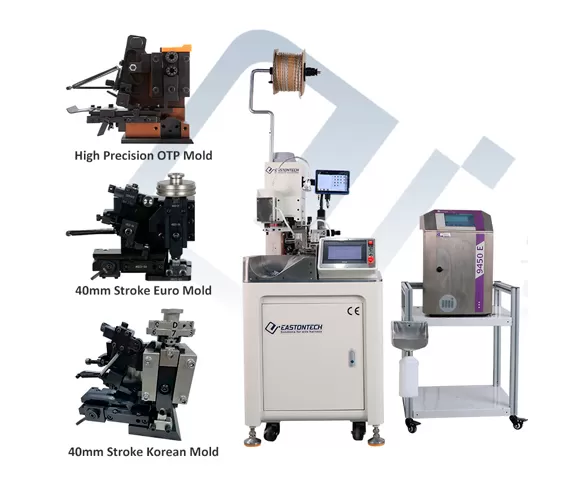

The color touch HMI stores wire/terminal parameters together with the correct print template for one-touch recall. Quick-change applicator design (30/40 mm stroke) shortens changeovers across wire sizes and terminal families.

Cast-iron structure, multi-wheel feeding and triple straighteners ensure dimensional stability: cut length 8–9,999 mm with ±(0.2+0.02×L) mm accuracy and 1–10 mm strip length. Standard alarms plus optional CFM provide real-time process monitoring and force-curve analysis for compliant, auditable crimp quality.
