Model | EW-22B | EW-22B-1 |
Applicable wire range | 20-32AWG | 14-22AWG |
Feeding mode | Two rollers feeding | Four rollers feeding |
Stripping length | Side A: 0-6mm; Side B: 0-10mm | Side A: 0-6mm; Side B: 0-10mm |
Cutting length | 13-9999mm | 13-9999mm |
Cut precision | ±(1+0.002*L) mm, L=cut length | ±(1+0.002*L) mm, L=cut length |
Crimping force | 2.0T | 2.0T |
Applicators | 30mm or 40mm strokes for optional | 30mm or 40mm strokes for optional |
Air pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) | |
Machined wires | Fluorine-resistant braided wire (compression thread) | |
Power | 220V/110V/50/60HZ | 220V/110V/50/60HZ |
Weight | 450Kg | 450Kg |
Dimension | 1400*800*1500mm | 1400*800*1500mm |
Power cord plug | European, USA, Chinese plug | European, USA, Chinese plug |
Cut, full-/half-strip, and crimp both ends in one pass. High throughput on short leads eliminates downstream bottlenecks while the wide length window covers micro-jumpers to extra-long leads, delivering a highly versatile crimp and seal solution.

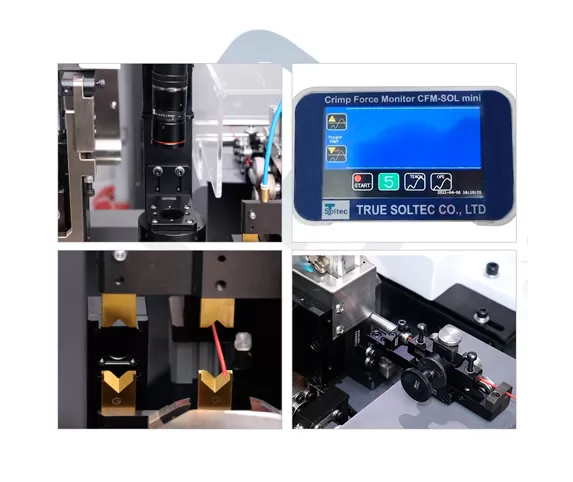

Supports direct (OTP) and transverse applicators with quick-change tooling. Stable press control and optional crimp-force monitoring help sustain capability on fine terminals and reduce pull-test failures.

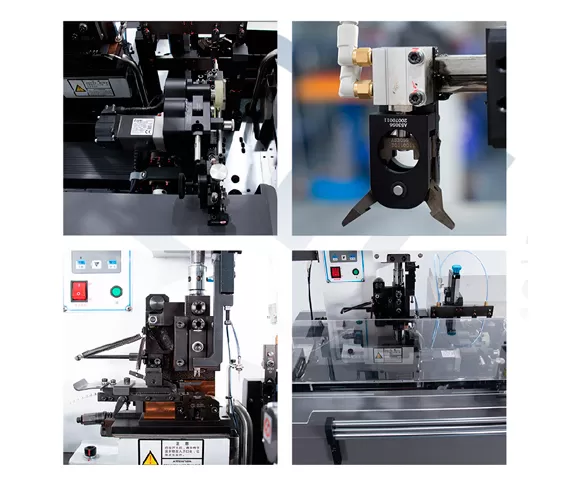

Rigid frame, servo-driven axes, precision guides/ball screws, and high-durability alloy blades keep strip faces clean and dimensional variation low—especially on small-gauge and heat-resistant insulation.
Touchscreen recipes with digital parameter tuning; wire/terminal presence and air-pressure checks trigger alarms before defects escape. A clear safety cover protects operators while preserving visibility for rapid changeovers.
