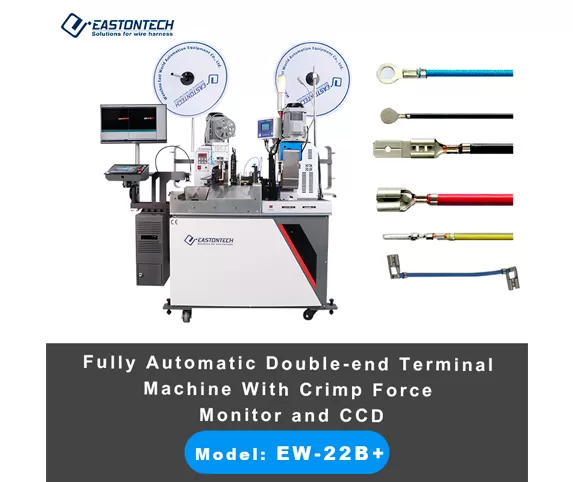

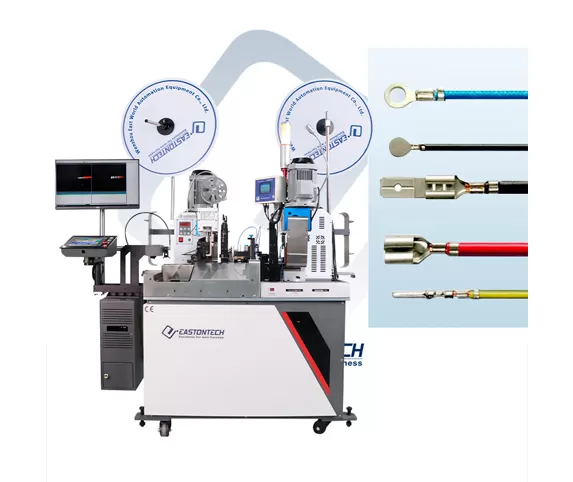

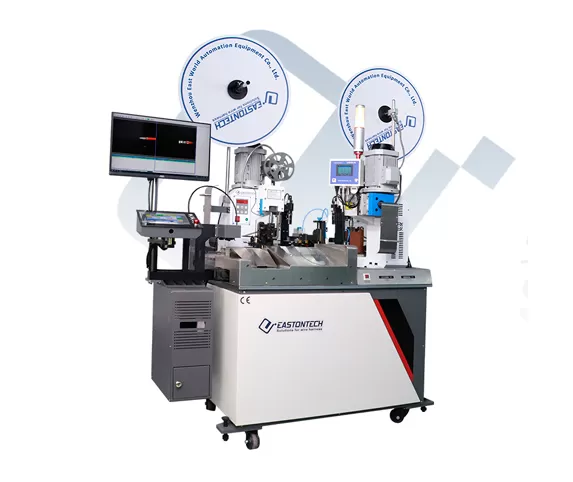

Model | EW-22B+ | EW-22B+1 |
Applicable wire range | 20-32AWG | 14-22AWG |
Feeding mode | Two rollers feeding | Four rollers feeding |
Stripping length | Side A: 0-6mm; Side B: 0-10mm | Side A: 0-6mm; Side B: 0-10mm |
Cutting length | 13-9999mm | 13-9999mm |
Cut precision | ±(1+0.002*L) mm, L=cut length | ±(1+0.002*L) mm, L=cut length |
Crimping force | 2.0T | 2.0T |
Applicators | 30mm or 40mm strokes for optional | 30mm or 40mm strokes for optional |
Air pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) | |
Machined wires | Fluorine-resistant braided wire (compression thread) | |
Power | 220V/110V/50/60HZ | 220V/110V/50/60HZ |
Weight | 450Kg | 450Kg |
Dimension | 1400*800*1500mm | 1400*800*1500mm |
Optional | CFM+CCD device | CFM+CCD device |

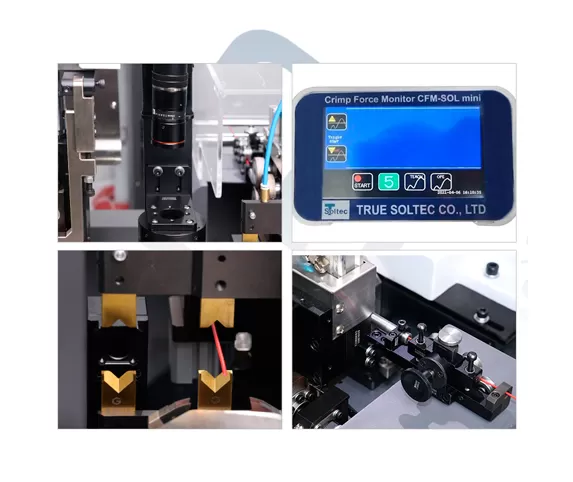

Closed-loop crimp force monitoring records the force signature of every crimp and rejects out-of-tolerance parts, while CCD vision checks strip lengths, conductor brush, terminal position/orientation, and presence. Together they deliver 100% in-process verification with traceable results, a standard supported by precision automatic strip cutter systems.
High-stability motion with precision tooling produces clean strip faces and consistent conductor brush on ultra-fine wires. Supports full-strip and half-strip at both ends, with optional twisting to tame loose strands on miniature conductors.

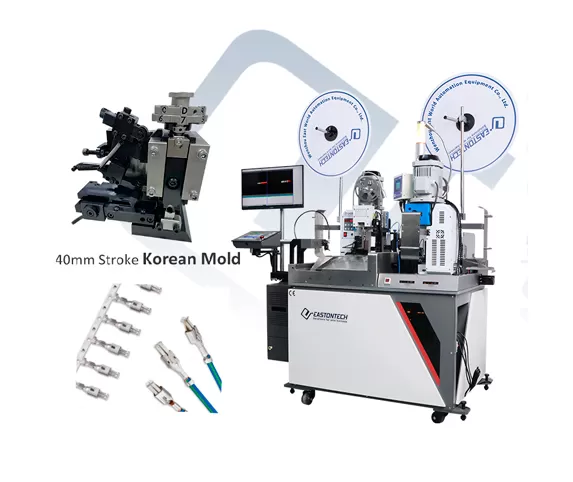

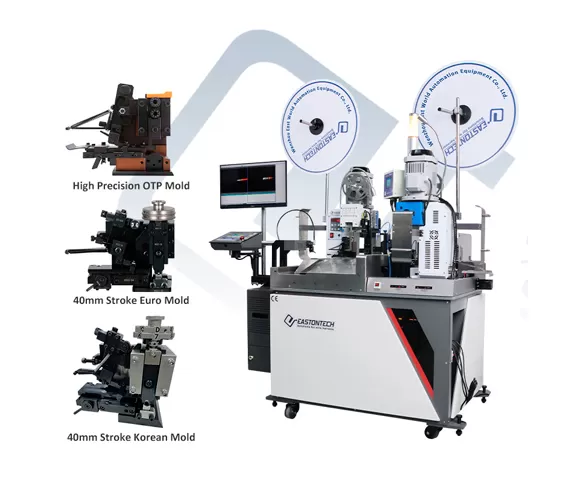

Accepts direct (OTP) and transverse applicators with quick-change dies. Job recipes store all parameters—cut length, strip lengths, crimp settings, twist—so operators can recall setups quickly for high-mix production.
Touchscreen interface enables one-time parameter entry and recipe management; automatic fault detection pinpoints causes for fast troubleshooting. Wire/terminal/air-pressure monitoring and a clear safety cover protect both operator and process while maintaining visibility.
