Model | EW-22C |
Applicable wire range | AWG32-AWG18 |
Stripping length | 0-10mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 20-9999mm(with twist); 8-9999mm(without twist) |
Capacity | 6100pcs/hour (L=100mm) |
Crimping force | 2.0T |
Twisting length | 3-12mm |
Air pressure | 0.5-0.7Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Display language | Chinese/English |
Dimension | 650*700*1500mm |
Weight | 240Kg |
Power cord plug | European, USA, Chinese plug |
Horizontal blade geometry plus ±0.1 mm cut accuracy enable reliable processing of ultra-short wires; with twisting off, leads as short as ~10 mm are feasible for tight assemblies.
Cuts/strips both ends and twist-crimps one end in the same cycle, with on/off twisting by recipe. This consolidates stations and boosts takt time to ~6.5k pcs/h for 100 mm leads, leveraging the speed and precision of an advanced automatic strip cutter.
A four-wheel drive feed with quick gap adjustment and dual straighteners keeps wire straight before processing, improving strip quality and crimp height consistency.

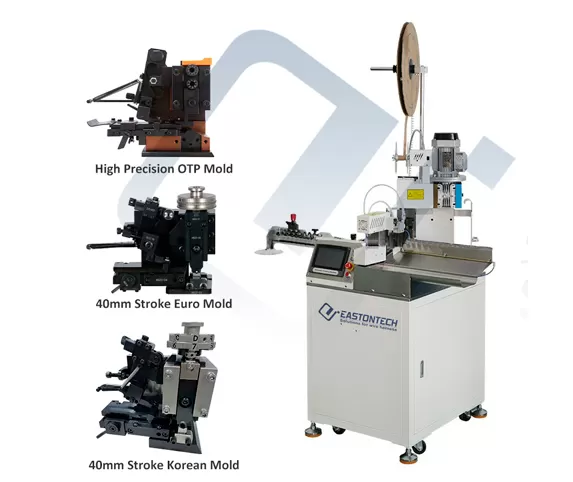

Intuitive touch-screen HMI, full-digital parameter setting, multi-recipe memory, and built-in alarms (wire/terminal feed, tangles, faults). Quick applicator swaps plus automatic scrap handling minimize downtime.
