Name: EW-22D Automatic Double Heads Plastic Shell Terminal Crimping and Twisting Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

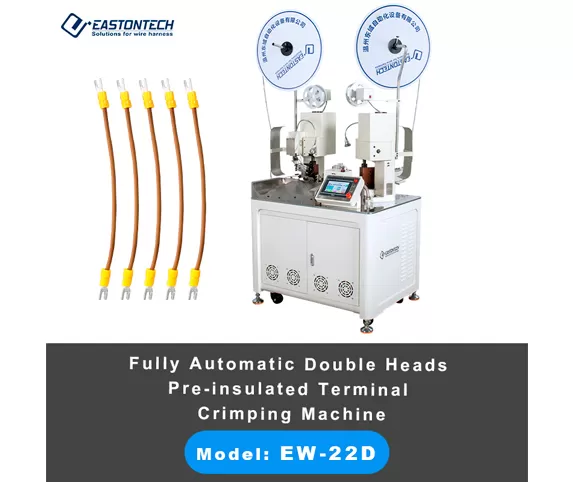

EW-22D Automatic Double Heads Plastic Shell Terminal Crimping and Twisting Machine

EW-22D integrates cutting, stripping and crimping on a single platform to drive high-throughput, stable wire-lead production. It accepts side-feed (cross-feed), straight-feed and flag terminals, with bulk feeding via an integrated vibratory bowl. An English LCD HMI streamlines setup, while hardened knurled feed wheels, , a wire straightener and a precision crimping applicator/die set deliver consistent dimensions without insulation damage, ensuring the performance of its integrated automatic strip cutter. Optional in-line quality controls—crimp-force monitoring (CFM) and CCD vision—provide real-time defect detection with automatic alarms/stops. Recipe memory, quick-swap wire inlet guides and applicators enable fast changeovers across appliance, automotive, aerospace and general harness builds. An optional networked controller supports MES connectivity for remote parameter management, job dispatch and production data traceability.

ew 22d automatic double heads plastic shell terminal crimping and twisting machine manufacturers

ew 22d automatic double heads plastic shell terminal crimping and twisting machine cost

ew 22d automatic double heads plastic shell terminal crimping and twisting machine companies

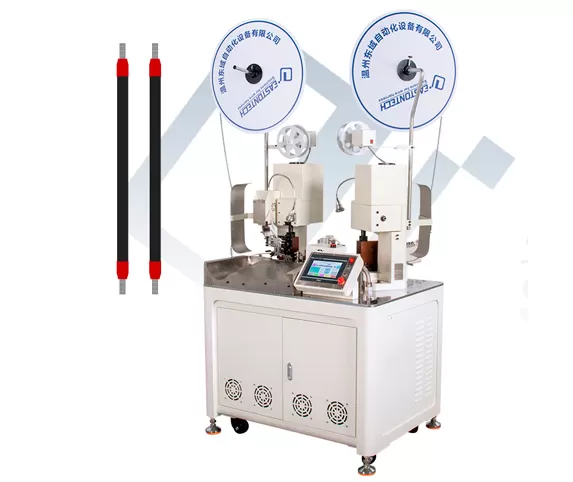

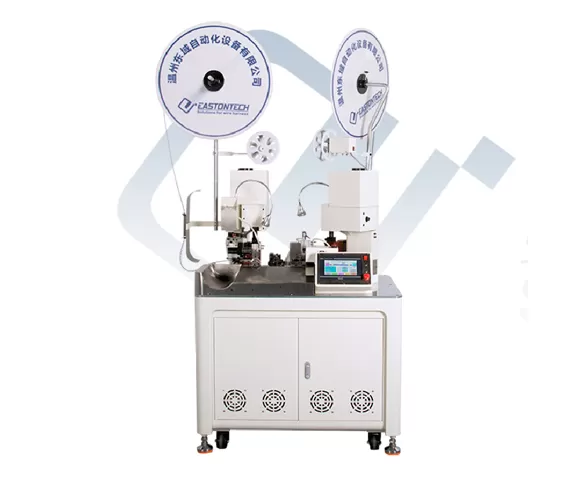

ew 22d automatic double heads plastic shell terminal crimping and twisting machine company

ew 22d automatic double heads plastic shell terminal crimping and twisting machine factories



Specifications of EW-22D Automatic Double Heads Plastic Shell Terminal Crimping and Twisting Machine

Model	EW-22D
Applicable wire range	AWG28-AWG14
Stripping/Twisting length	7-12mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	50-9999mm
Capacity	800-900pcs/hour(Length less than 300mm)
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	4-6KGF
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	7008001500mm
Weight	358Kg
Power cord plug	European, USA, Chinese plug

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile Glass Braiding

Tefzel®

PUR

PVC

Processing Capabilities

Full Strip

Discrete Wire Crimping

Crimp to Crimp (Closed Barrel)

Crimp to Crimp

Crimp to Crimp (Ferrule Crimping)

Features of EW-22D Automatic Double Heads Plastic Shell Terminal Crimping and Twisting Machine



One-Pass Productivity

Fully integrated cut-strip-crimp flow with bowl-fed terminals shortens cycle time and minimizes handling, improving takt time and line balance.

01


Built-In Quality Assurance

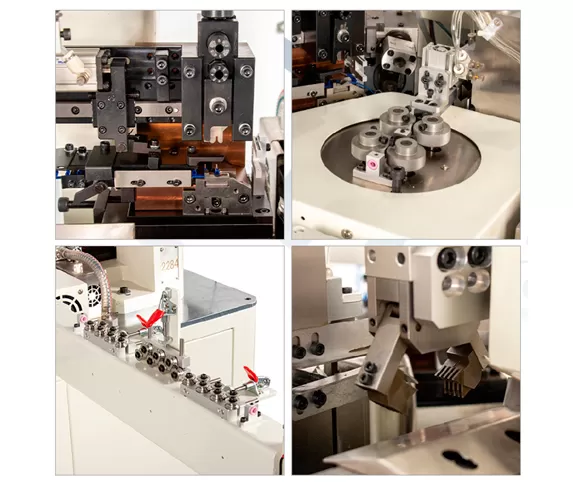

Precision applicator/die set, hardened feed wheels and a wire straightener ensure repeatable crimp height and pull strength; optional CFM and CCD vision add real-time monitoring, auto-stop and automated visual verification.

02


Fast Changeover, Wide Compatibility

Processes side-feed, straight-feed and flag terminals on one machine. Quick-swap applicators and wire inlet guides plus recipe recall cut setup time for high-mix production.

03


Industry 4.0 Ready

Optional network interface links to MES for remote recipe control, job assignment and complete production/QA data capture, enhancing traceability and uptime.

04
