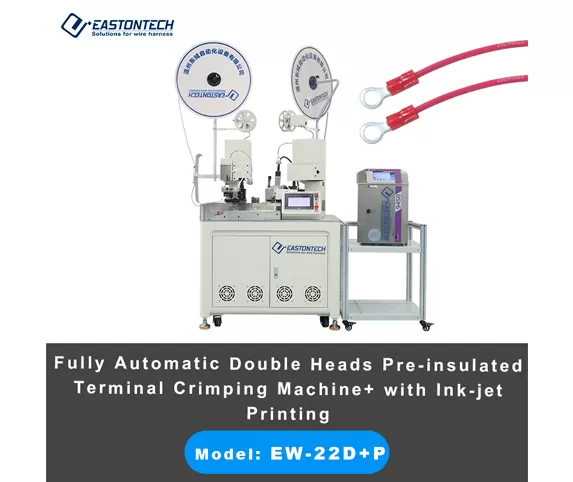

Model | EW-22D+ |
Applicable wire range | AWG28-AWG14 |
Stripping/Twisting length | 7-12mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 50-9999mm |
Capacity | 800-900pcs/hour(Length less than 300mm) |
Crimping force | 2.0T |
Applicators | 30mm or 40mm strokes for optional |
Air pressure | 4-6KGF |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Display language | Chinese/English |
Dimension | 700*800*1500mm |
Weight | 358Kg |
Power cord plug | European, USA, Chinese plug |

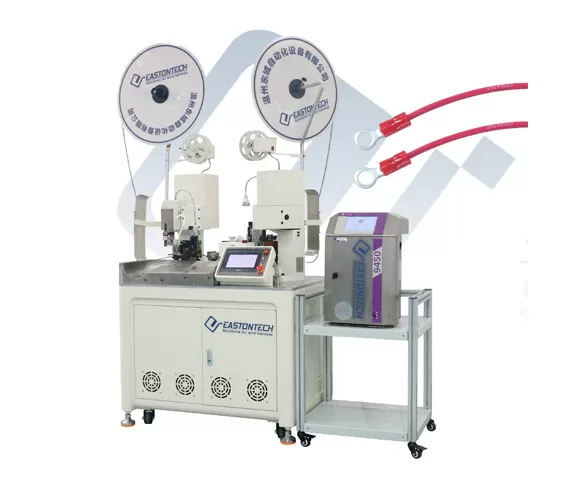

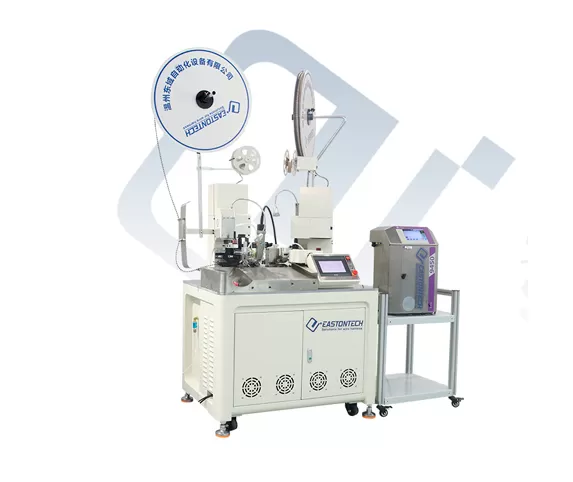

Cut–strip–print–crimp in one continuous flow. On-the-fly inkjet marking places clear circuit IDs, part numbers, date/lot codes or length marks before crimping, reducing handling, WIP and labeling cost.
Non-contact marking for PVC, XLPE, TPE, PTFE/FEP and heat-shrink sleeves. Supports multi-line alphanumeric text and variable data (date/time, shift, counters); 1D/2D codes and logo graphics are available as options. Encoder-synchronized printing keeps characters sharp and consistent at production speeds.

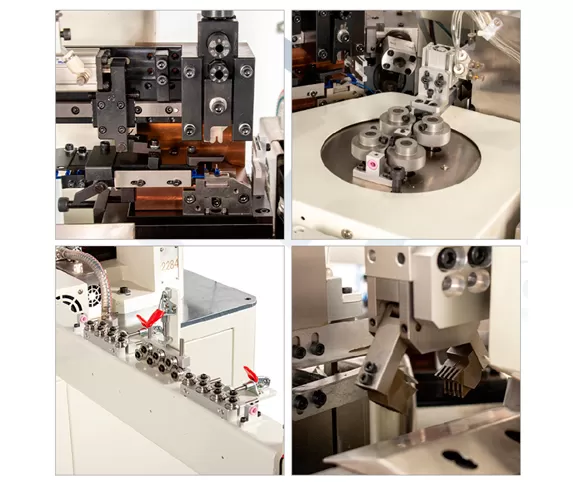

Precision applicator/die set, wire straightener and hardened feed wheels protect the insulation and stabilize crimp height and pull strength. Optional CFM and vision inspection provide real-time detection of crimp or print anomalies, with auto-alarm/stop for reliable quality.
Job recipes link process parameters with the correct applicator and print template for one-touch recall. Optional MES connectivity enables remote parameter control, job assignment, production/QA data logging and traceability across appliance, automotive, battery/grounding and control-cabinet harness lines.
