Name: EW-22D+S Ferrules Crimping Machine with Intelligent Control System
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

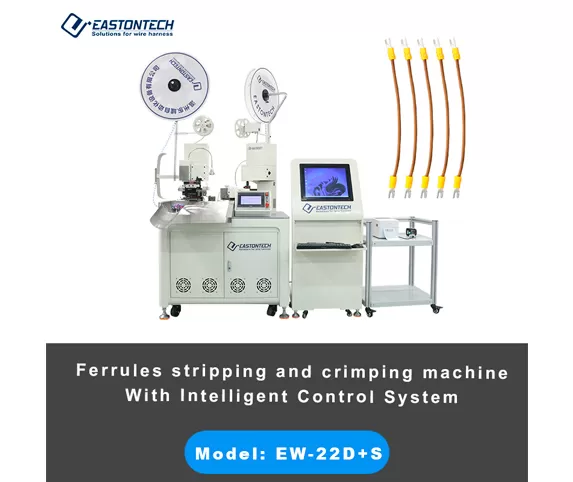

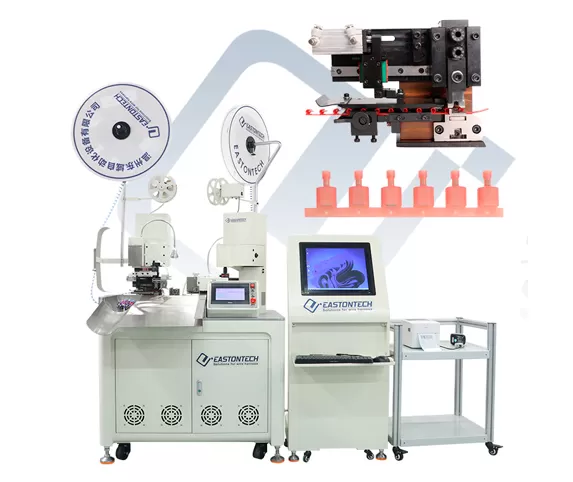

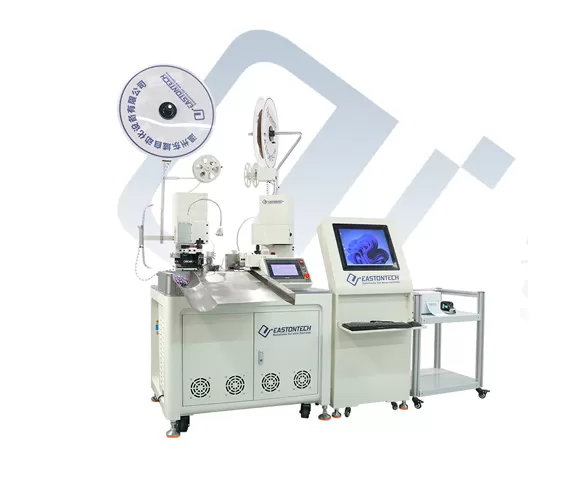

EW-22D+S Ferrules Crimping Machine with Intelligent Control System

EW-22D+S builds on the EW-22D platform and adds barcode/QR-code scanning with error-proofing (Poka-Yoke) and Excel/CSV job import. In one continuous pass the system cuts, strips and crimps, while the scanner verifies that the wire, terminal and applicator match the active recipe before the first cycle—preventing mixed materials and wrong-gauge setups. Its reliable performance is anchored by the precision of its integrated automatic strip cutter. It supports side-feed, straight-feed and flag terminals with vibratory-bowl feeding, and uses an English HMI with recipe memory for rapid changeovers. Optional crimp-force monitoring (CFM) and CCD vision inspection close the loop on quality, and an optional network connection enables MES/ERP integration for full traceability.

ew 22d s ferrules crimping machine with intelligent control system price

ew 22d s ferrules crimping machine with intelligent control system for sale

ew 22d s ferrules crimping machine with intelligent control system wholesale suppliers

ew 22d s ferrules crimping machine with intelligent control system wholesale manufacturers

ew 22d s ferrules crimping machine with intelligent control system supplier



Specifications of EW-22D+S Ferrules Crimping Machine with Intelligent Control System

Model	EW-22D+S
Applicable wire range	AWG28-AWG14
Stripping/Twisting length	7-12mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	50-9999mm
Capacity	800-900pcs/hour(Length less than 300mm)
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	4-6KGF
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	7008001500mm
Weight	358Kg
Power cord plug	European, USA, Chinese plug

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile Glass Braiding

Tefzel®

PUR

PVC

Processing Capabilities

Crimp to Crimp (Ferrule Crimping)

Features of EW-22D+S Ferrules Crimping Machine with Intelligent Control System



Barcode-Driven Error-Proofing

Handheld/fixed scanner reads material labels (wire spec, terminal lot, applicator ID) and cross-checks them against the job recipe. Mismatches trigger alarm/stop, eliminating mixed terminals, wrong wire gauges and setup errors.

01


Digital Job Dispatch & Fast Changeover

Batch-load work orders via Excel/CSV, queue multiple SKUs, and auto-recall the correct parameters, lengths and crimp profiles. Quick-swap inlet guides and applicators cut setup time for high-mix/low-volume harness builds.

02


Precision Termination Platform

Hardened knurled feed wheels, a wire straightener and a high-precision applicator/die set stabilize dimensions without damaging the insulation, delivering repeatable crimp height and pull strength on side-feed, straight-feed and flag terminals.

03


Closed-Loop Quality & Traceability (Industry 4.0 Ready)

Optional CFM and CCD vision detect crimp and positioning defects in real time with auto-stop. Scan events, lot numbers and operator IDs are logged; optional MES connectivity enables remote recipe control, job assignment and end-to-end data records.

04
