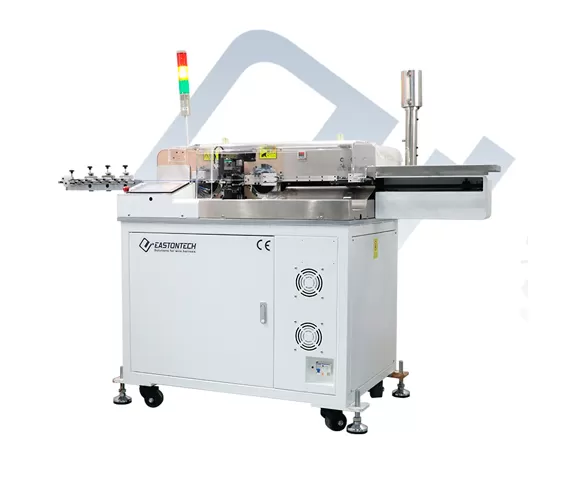

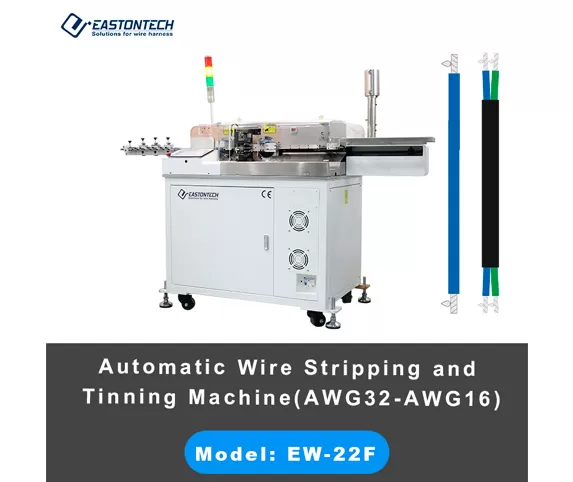

Name: EW-22F Automatic Wire Stripping and Tinning Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-22F Automatic Wire Stripping and Tinning Machine

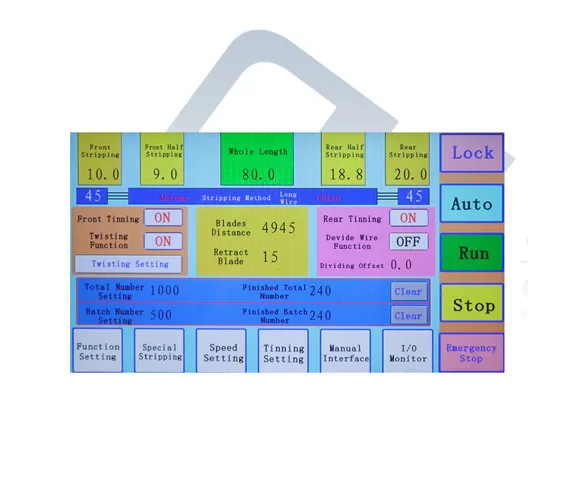

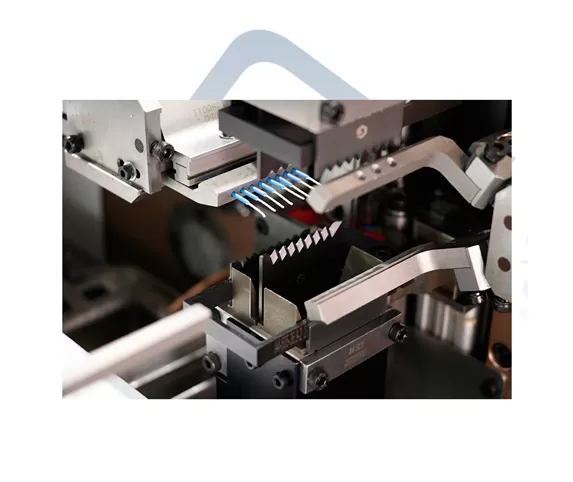

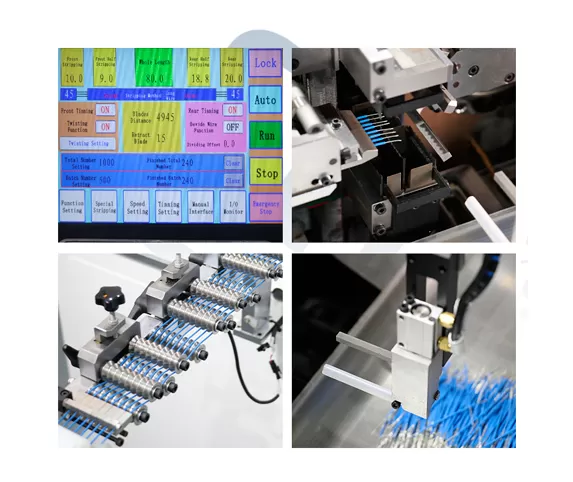

EW-22F is a fully-automatic dual-head cut/strip/tin machine designed for high-volume lead preparation. In a single pass it handles wire cutting, single- or dual-end stripping (including semi-strip), dual-end twisting, and single- or dual-end tin dipping. The high precision of its integrated automatic strip cutter enables these capabilities. Eight leads are processed in parallel, with all parameters—cut length, strip dimensions, twist length, and tinning depth—set digitally on a 7-inch HMI. Motorized, computer-controlled blade positioning eliminates shim changes, while a flat-bottom titanium solder pot offers clean, stable tinning and easy maintenance. Typical output reaches 7,000–13,000 leads/hour, significantly reducing touch time on harness pre-assembly.

ew 22f automatic wire stripping and tinning machine companies

ew 22f automatic wire stripping and tinning machine company

ew 22f automatic wire stripping and tinning machine factories

ew 22f automatic wire stripping and tinning machine wholesale supplier

ew 22f automatic wire stripping and tinning machine wholesale manufacturer



Specifications of EW-22F Automatic Wire Stripping and Tinning Machine

Model	EW-22F
Wire range	AWG32-AWG16
Stripping length	0-20mm
Cut precision	±(1+0.02*L) mm
Cutting length	10-600mm (600-1500 can be customized)
Twisting length	3-20mm
The min. cutting length with double side tinning	11mm
Capacity	9000-11000pcs/hour (AWG22-AWG32, 1-8 wires one time) 4000-5500pcs/hour(AWG20-AWG18, 1-5 wires one time) 2700-3000pcs/hour(AWG18-AWG16, 1-3 wires one time)
Power	220V/110V/50/60HZ
Air pressure	0.5-0.7Mpa
Machine size	12107701380mm
Weight	430Kg
Options	CCD visual Inspection; CFM

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile Glass Braiding

Tefzel®

PUR

PVC

Processing Capabilities

Full Strip

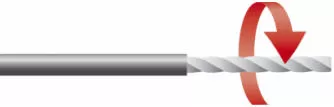

Twisting Function

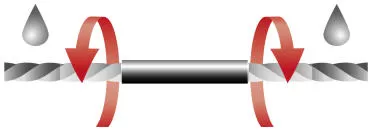

Twist / Tin Both Ends

Features of EW-22F Automatic Wire Stripping and Tinning Machine



8-Up Throughput, True Dual-Head Processing

Processes eight wires simultaneously and completes cutting, stripping, twisting, and single/dual-end tinning in one cycle—ideal for feeder lines to crimping or sub-assembly.

01


All-Digital Setup & Shimless Tooling

Recipe-driven control of cut length, strip lengths, twist and tin depths; servo-driven blade positioning removes shim swaps, shortens changeover, and improves repeatability.

02


Clean, Consistent Tinning

Corrosion-resistant titanium solder pot with flat base promotes uniform wetting and fast dross removal; precise thermal control supports stable solder quality and easy daily clean-out.

03


Built for Accuracy & Uptime

Industrial-grade servo motion, ball-screw feed and linear guideways deliver smooth wire transport and long service life; integrated safety and housekeeping features support continuous shifts with minimal operator intervention.

04
