EW-22G+T

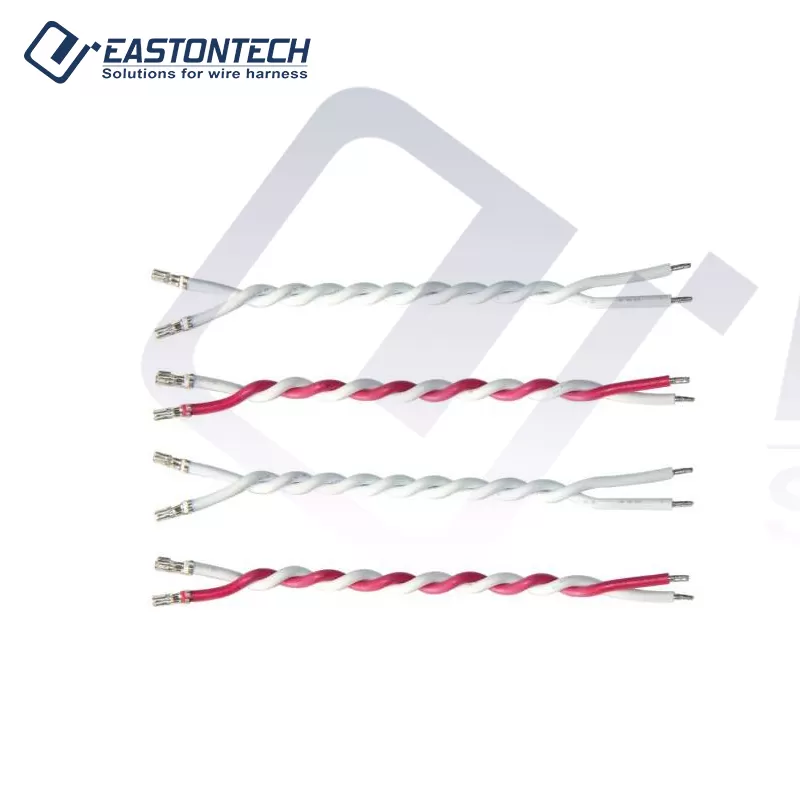

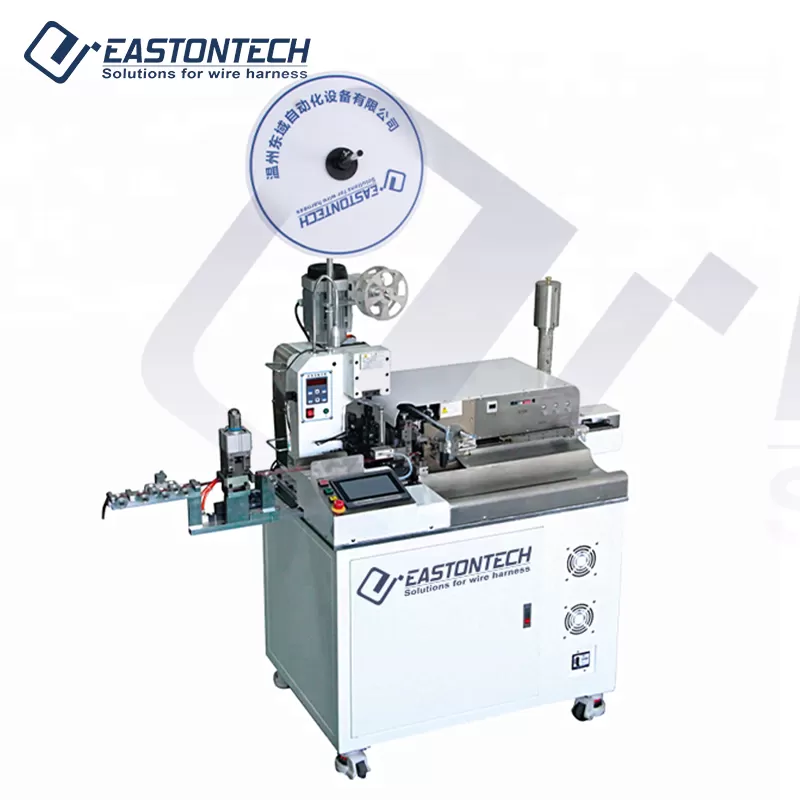

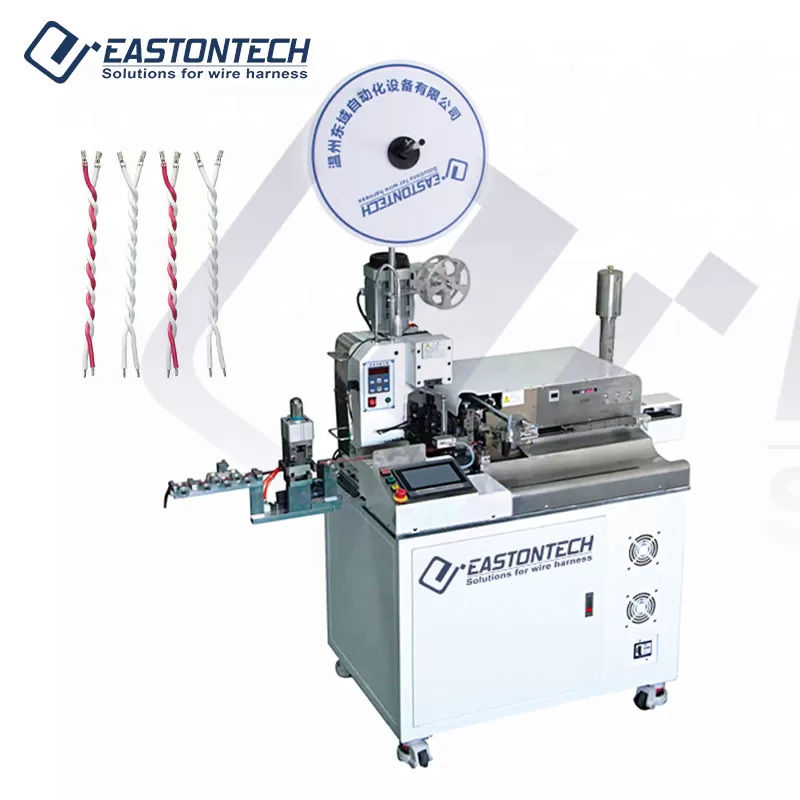

This multifunctional dual-end tinning and crimping machine combines the features of two separate systems into one compact solution. It supports dual-end wire twisting with tinning as well as one-end tinning with the other end crimping, giving manufacturers the flexibility to handle diverse production needs without switching equipment.

The dual-functionality design allows operators to choose betweeen two processing modes: complete dual-end tinning for applications requiring soldered connections on both sides, or hybrid processing witth tinning on one end and terminal crimping on the other end for versatile wire harness assembly requirements.



Specifications of EW-22G+T

Model	EW-22G+T
Applicable wire range	AWG34-AWG18
Stripping length	0.1-6mm (7-20mm can be customized)
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	50-400mm
Capacity	1200pcs/hour
Crimping force	2.0T
Twisting length	2-7mm (7-20mm can be customized)
Air pressure	0.5-0.7Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is optional)
Power	220V/110V/50/60HZ
Applicators	30mm or 40mm strokes for optional
Dimension	12107701370mm
Weight	480Kg
Power cord plug	European, USA, Chinese plug

Features of EW-22G+T



Applicator/Mold

Quick and easy for applicator change.
Precision wire cutting stripping and crimping.
Full servo screw,high precision, improve efficiency, stable performance.

01


English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)
