Name: EW-22S-1
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-22S-1

Comprehensive and flexible functions

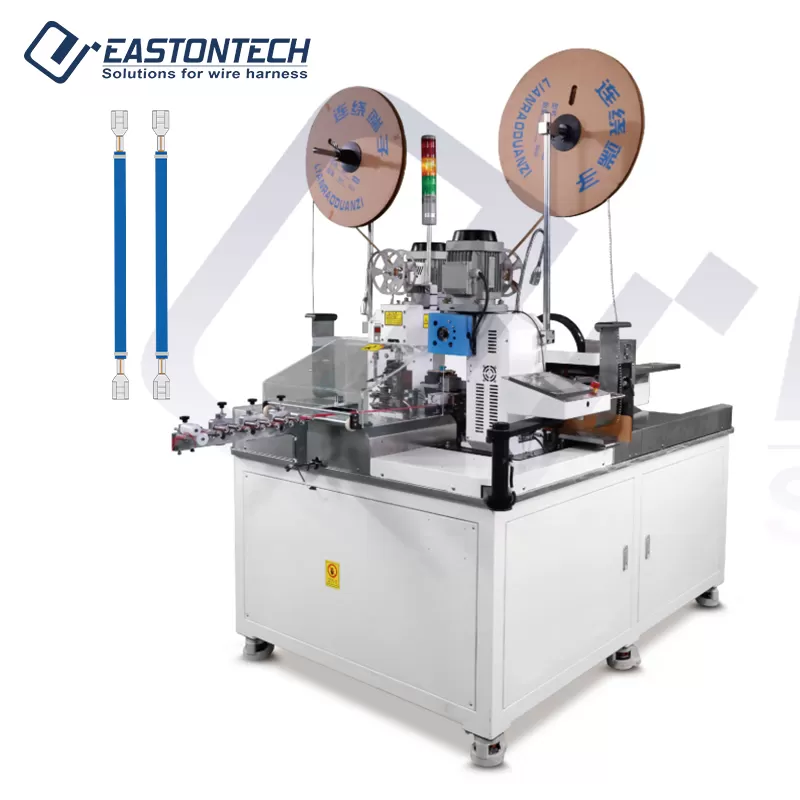

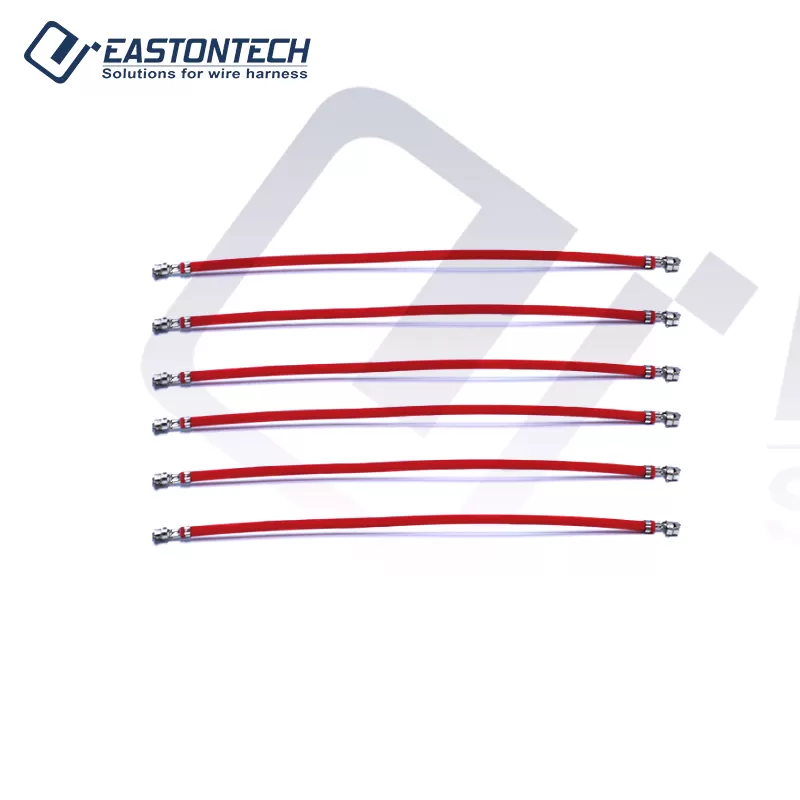

This advanced five-wire high-speed automatic terminal crimping machine integrates multiple functions including cut strip double crimp,double-strip,double half-strip,double-twist,single crimp,single-twist,can shift among all function,computerized easy for worker operating.Designed for high-volume production, the system can simultaneously process 5 wires with exceptional efficiency and precision, making it ideal for complex wire harness manufacturing applications.

Equipped with advanced servo-driven technology and electronic precision positioning, the machine operates with reduced noise and energy consumption compared to traditional terminal crimping equipment.

Specifications of EW-22S-1

Model	EW-22S-1
Wire range	AWG30-AWG16
Stripping length	0.1-14mm
Cut precision	±(0.2+0.02*L) mm
Cutting length	50-950mm
Crimping force	2.0T
Air pressure	0.4-0.6Mpa
Capacity	15000-20000pcs/hour
Power	220V/110V/50/60HZ
Detection function	Non-wire,crimp detect,pressure detect(to be installed with press sensor)

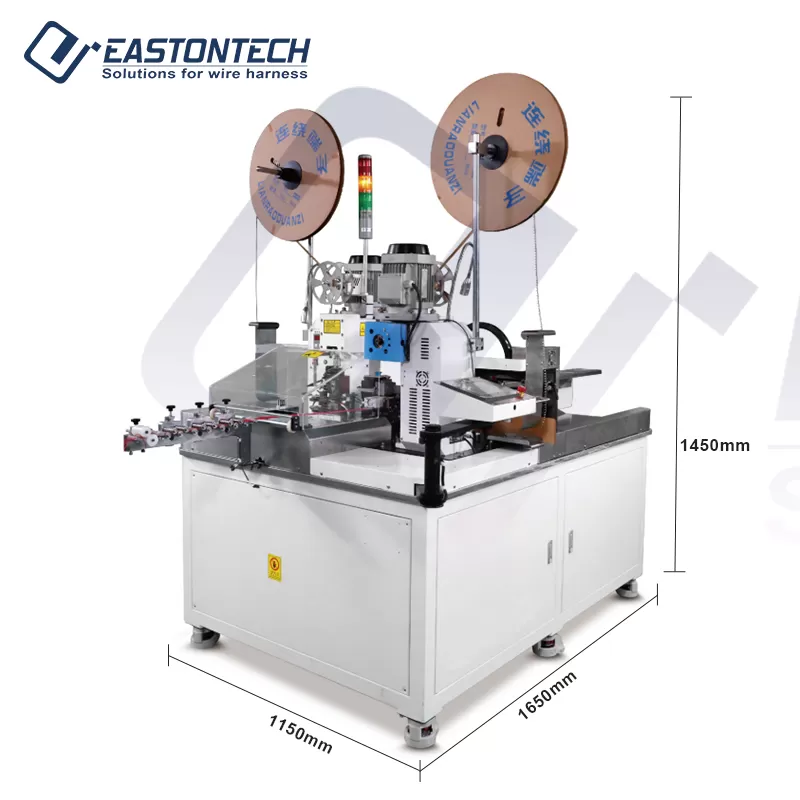

Machine size	230012001550mm
Weight	450Kg
Options	CCD visual Inspection; CFM

Features of EW-22S-1



Applicator/Mold

Quick and easy for applicator change.
Precision wire cutting stripping and crimping.
Full servo screw, high precision, improve efficiency, stable performance.

01


Optional Device

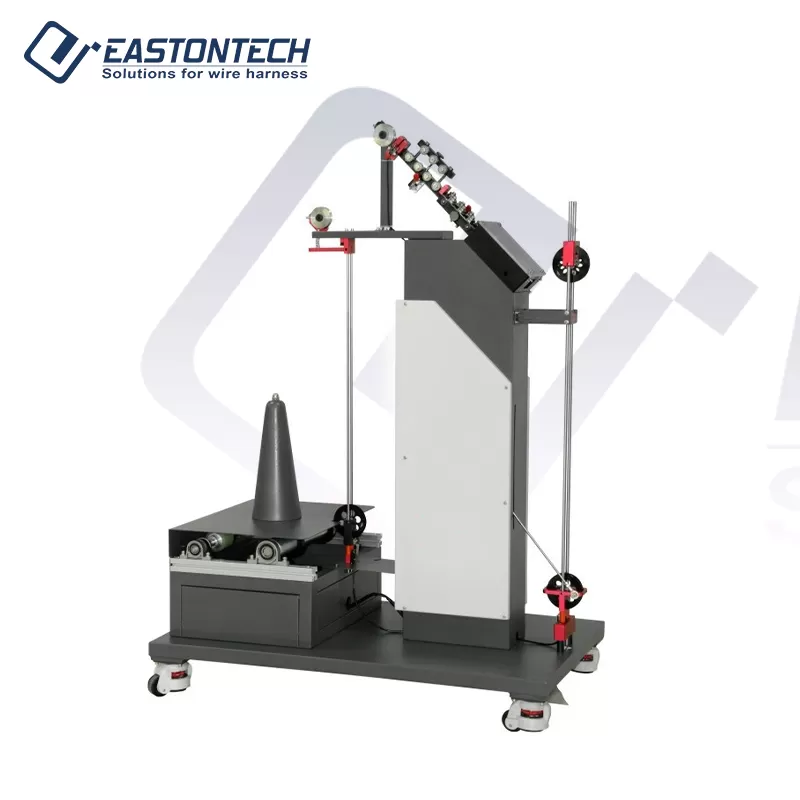

This Optional of wire prefeeder (motorized type) and conveyor (for long wires).

02


English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)

03
