Name: EW-2635 Electric Terminal Tensile Testing Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-2635 Electric Terminal Tensile Testing Machine

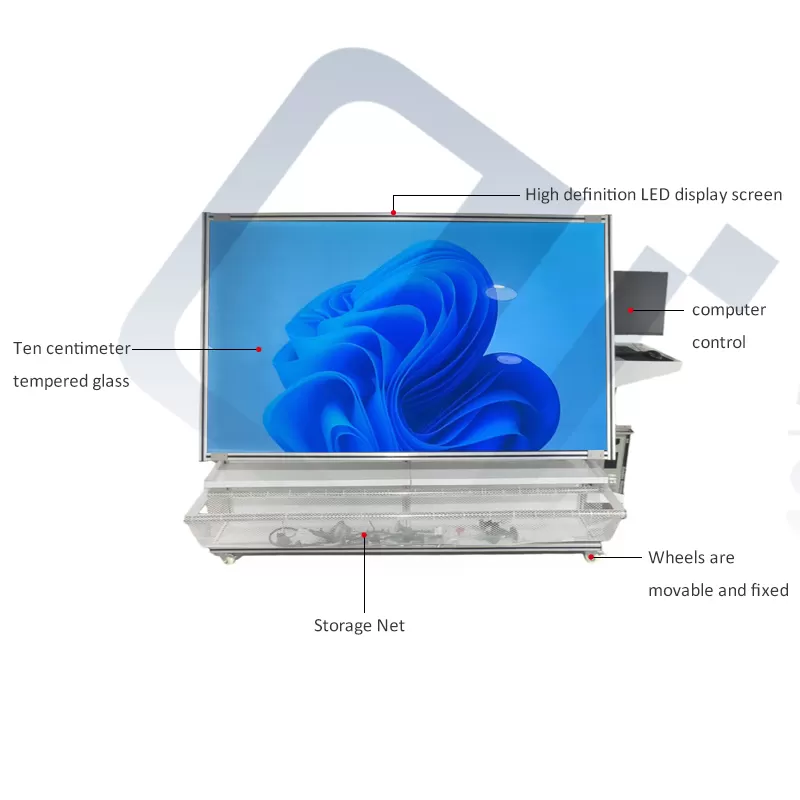

*Electric support module

The module is equipped with an electric frame that allows for adjustment of the display screen's position and angle, enabling it to be adjusted to a suitable operating angle.

*Easy to operate

After engineers complete the wiring information for the assembly components, they can import the wiring information into the assembly station's microcomputer.Operators can simply use a mouse or keyboard to output the wiring information to the LCD screen.



Specification

Model	EW-2635
Screen Size	85-inch model (customizable upon request)
External Dimensions	Length 2040 * Width 740 * Height 1600m
Weight	750kg
WiFi/Bluetooth	The computer supports WiFi and Bluetooth.
Power Supply	AC210V-AC240V
Graphics Card	3080 and above
Monitor	27 inches and above
Memory Operation	16G
Store	512G
Processor	I5-12400
Operating System	Windows 11

显示屏尺寸	85寸型号（可根据需求定制）
外型尺寸	长2040宽740高1600m
重量	750kg
WiFi/蓝牙	电脑支持WiFi与蓝牙
电源	AC210V-AC240V
显卡	3080以上
显示器	27寸以上
内存运行	16G
储存	512G
处理器	I5-12400
操作系统	Windows11

Features



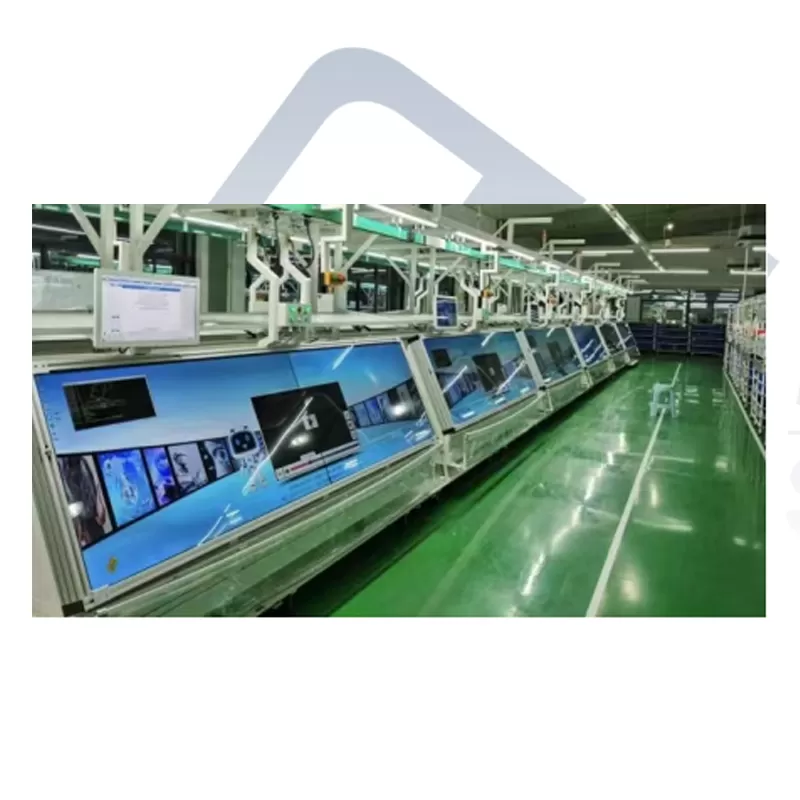

Connect Multiple Modules

*Multiple modules can be connected together to form a larger system
*Up to 6 screens can be connected; the workbench length for a 65" screen can reach 9 meters, and the workbench length for an 85" screen can reach 10 meters
*Quickly Obtain Necessary Information

01


Improve Production Efficiency

*Simplify wire harness production processes and shorten changeover and production times
*Clear instructions reduce operator training time
*Quickly access necessary information

02


Optimize Workshop Area

*Capable of assembling hundreds of different wire harnesses on a single system
*No longer requires storing wooden boards

03


Improving Quality

*Achieving repeatable assembly methods through predefined steps
*Reducing human error through step-by-step and vision-assisted methods
*Optimal traceability for verification and control of the entire assembly process

04
