Model | EW-3010+P |
Function | Wire cutting, double-end stripping, middle stripping |
Wire range | 0.1-6mm² (AWG30-12) |
Cutting length | 0.1mm-99999.9mm |
Stripping length | Stripping head:0.1-250mm Stripping tail: 0.1-70mm |
Stripping accuracy | Silent hybrid stepper motor 0.01mm |
Intermediate strip | 16 (can be customized) |
Capacity | 3000-8000 / h |
Blade material | Imported tungsten steel / high speed steel |
Power | AC110V/220V 50/60HZ |
Dimension | 470mm * 450mm * 350mm |
Weight | 31.5kg |
Remark function | Automatic entry / exit, timing start, jog adjustment |
Remarks | Special application can be customized by sending samples |
Combines servo-driven precision cutting, double-end/intermediate stripping (≤16 points), and direct software-controlled inkjet coding in one streamlined process, delivering the integrated functionality expected of a modern industrial wire stripping machine and eliminating manual handling.
Industrial control system supports bulk import of wire lengths/coding data from Excel tables. LAN-enabled for remote task assignment, parameter adjustment, and MES integration.

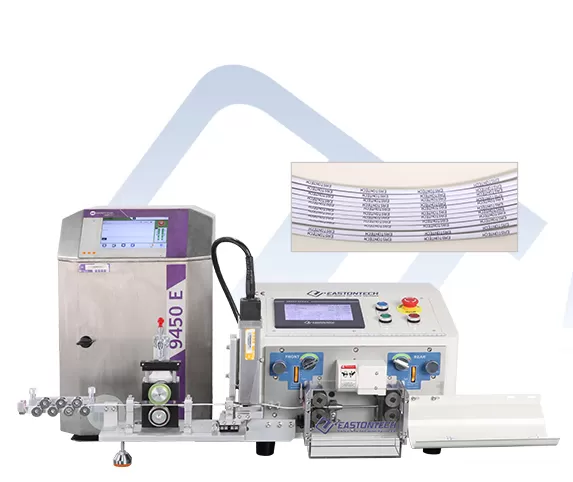

Equipped with French Imes 9450 printer (white/black ink option) for permanent markings. Coding content is defined entirely within the machine’s software—no external printer interfaces required.
Optional barcode scanners + receipt printers auto-generate job reports/QR codes (custom templates). Software supports non-standard customization and can extend coding functionality to other wire processing systems (e.g., 300mm²/multi-core strippers).
