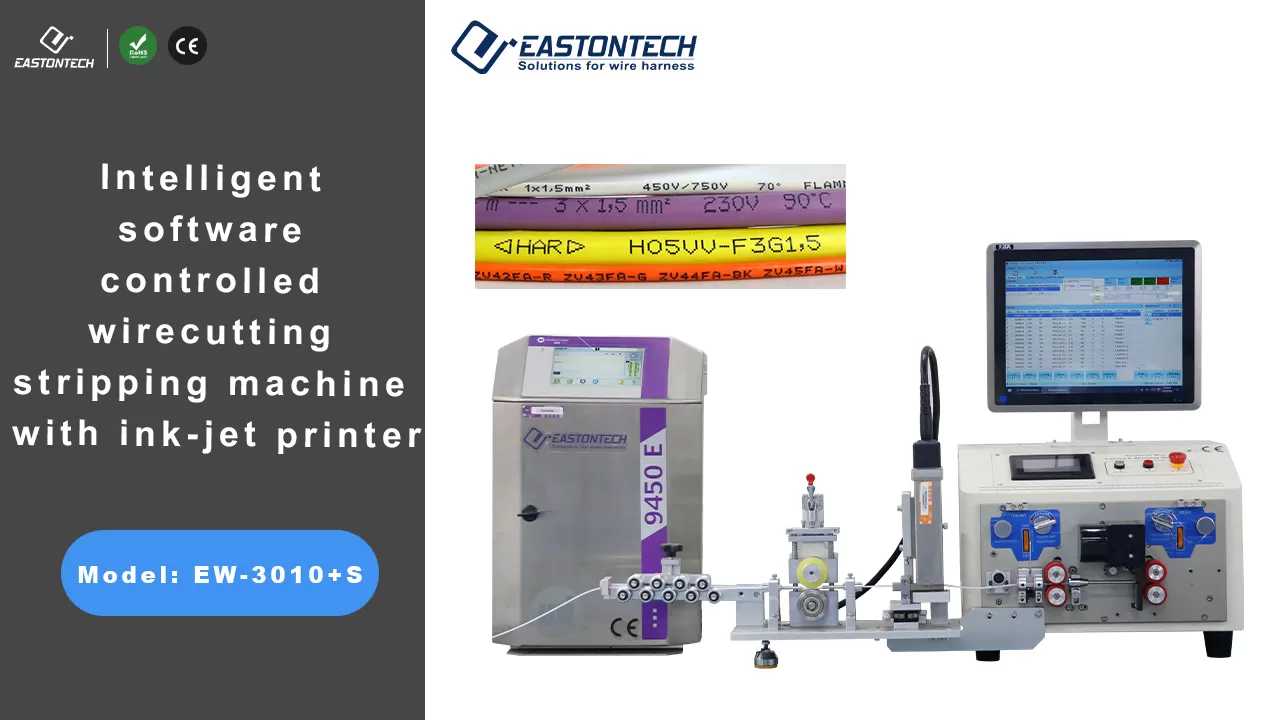

Name: EW-3010+S Intelligent Software Controlled Wire Cutting Stripping Machine With Ink-Jet Printer(0.1-6mm²)
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-3010+S Intelligent Software Controlled Wire Cutting Stripping Machine With Ink-Jet Printer(0.1-6mm²)

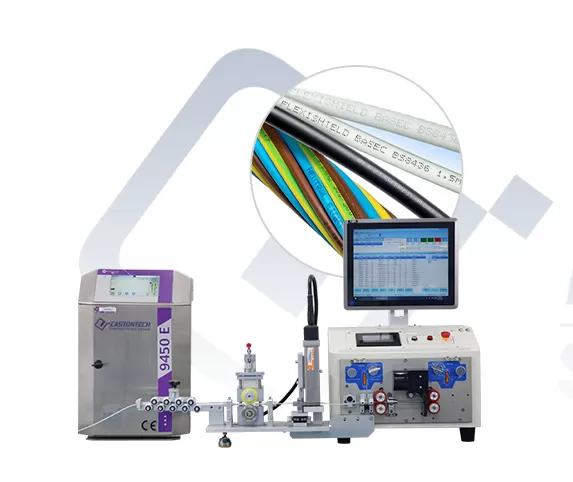

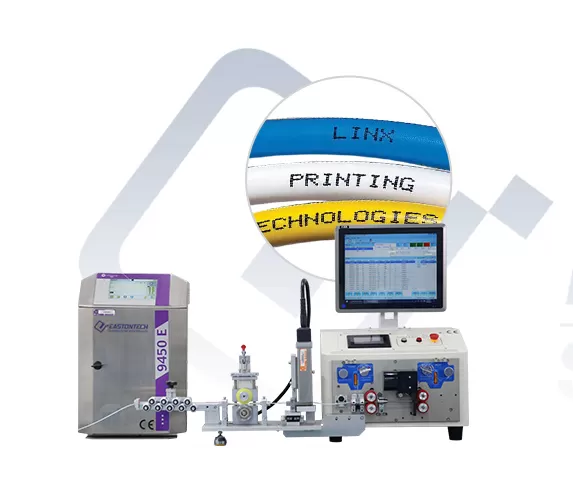

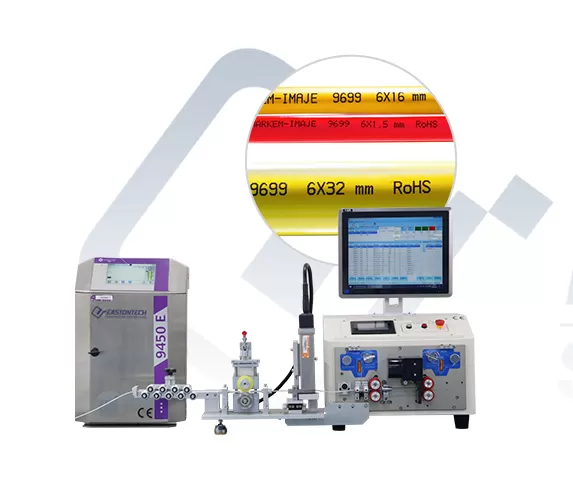

The EW-3010+P is an advanced servo-driven automation platform integrating precision wire cutting, stripping, and coding functions. Engineered for complex wire processing, it handles wires from 0.1mm² to 6mm² (AWG 30-12) with exceptional cutting accuracy (0.1mm - 99,999.9mm) and multi-point stripping (ends: 0.1–250mm head / 0.1–70mm tail; up to 16 customizable intermediate strips). Its core features include a Windows-based industrial control system for direct Excel batch data import and LAN/MES connectivity, plus a French Imes 9450 inkjet printer (white/black ink) seamlessly controlled via software. Optional traceability tools (receipt printer, barcode scanner) enable parameter retrieval and job data printing. With high-speed capacity (3,000–8,000 pcs/h), imported tungsten steel blades, and non-standard customization support, it adapts to diverse applications—including coding for large-gauge (300mm²) and multi-core wires.

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 video

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 for china

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 china

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 price

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 cost

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 buy

ew 3010s intelligent software controlled wire cutting stripping machine with ink jet printer 0 1 6mm2 for sale



Specifications of EW-3010+P Wire Cut Strip Machine with Ink-Jet Printer

Model	EW-3010+S
Wire material	PVC, fiberglass wire etc.
Conductor cross-section	0.1 - 6 mm²
Cutting length	1 - 100,000 mm
Cutting length tolerance	± 0.0001 * L
Stripping length	Side I: 0 - 250 mm Side II: 0 - 70 mm
Maximum guide tube diameter	5 mm
Driving mode	By rollers
Blade material	High speed steel
Productivity	5000 - 6000 pcs./h
Power supply	110, 220 V (50 - 60 Hz)
Weight	50 kg
Dimension	470 * 450 *350 mm
Special requirement	Can be used with any stripping machine and terminal machine

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile glass braiding

Tefzel®

PUR

PVC

Processing Capabilities

Full Strip

Printing Marking

Jacket Stripping of Multi Conductor Cables

Features of EW-3010+S Intelligent Software Controlled Wire Cutting Stripping Machine With Ink-Jet Printer(0.1-6mm2)



Custom Traceability & Scalable Platform

Optional barcode scanners + receipt printers auto-generate job reports/QR codes (custom templates). Software supports non-standard customization and can extend coding functionality to other wire processing systems (e.g., 300mm²/multi-core strippers), further enhancing the automation potential of the industrial wire stripping machine.

01


Integrated Cutting-Stripping-Coding Automation

Combines servo-driven precision cutting, double-end/intermediate stripping (≤16 points), and direct software-controlled inkjet coding in one streamlined process, eliminating manual handling.

02


Smart Industrial Control & Network Integration

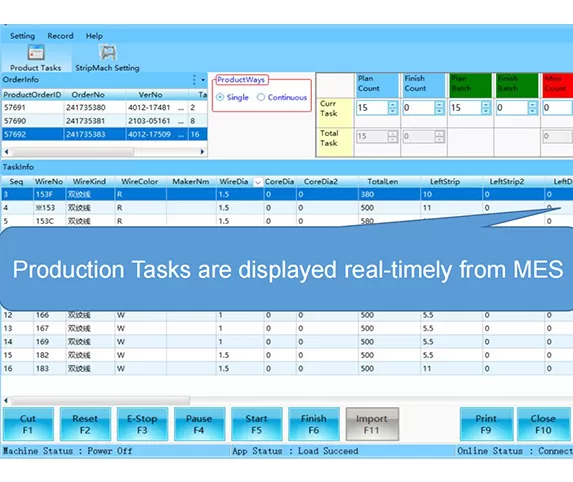

Windows OS with Excel batch import for mass-producing wires with variable lengths/codes. Supports LAN/MES connectivity for remote task assignment, parameter adjustment, and real-time production monitoring.

03


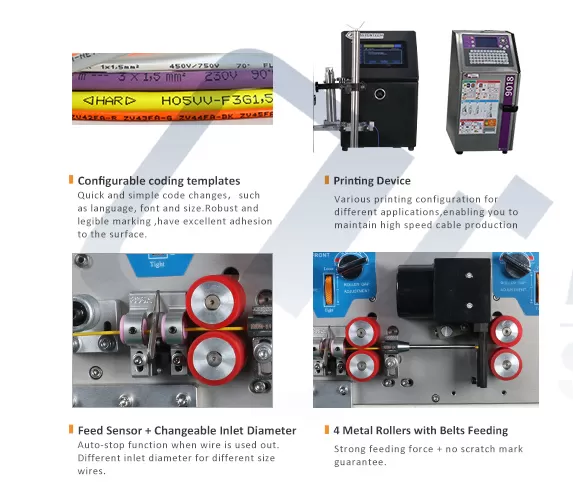

High-Fidelity Inkjet Coding System

Equipped with French Imes 9450 printer (white/black ink option) for permanent markings. Coding content is defined entirely within the machine’s software—no external printer interfaces required.

04
