Model | EW-3035+L |
Function | wire cutting, double-end stripping,middle stripping |
Wire range | 1-16mm² |
Max diameter | 10mm |
Cutting length | 0.1mm-99999.9mm |
Stripping length | stripping head:0.1-250mm,stripping tail: 0.1-70mm |
Stripping accuracy | silent hybrid stepper motor 0.01mm |
Intermediate strip | can be customized |
Capacity | 2000-5000 / h |
Blade material | imported tungsten steel / high speed steel |
Power | AC110V/220V 50/60HZ |
Body size | 470mm*450mm*350mm |
Body weight | 36.5kg |
Remark function | Automatic entry / exit, timing start, jog adjustment |
UV laser | 5W |
Laser wavelength | 355nm |
Modulation frequency range | ≤100 kHz |
Maximum speed | 7000mm/s |
Best resolution | 0.001mm |
Minimum character height | 0.2mm (depending on material) |
Cooling method | Water cooling |
Manual lifting mechanism | Vertical height adjustable within 500mm |
Air supply | 0.5-0.7Mpa |
Foot pedal | N/A |

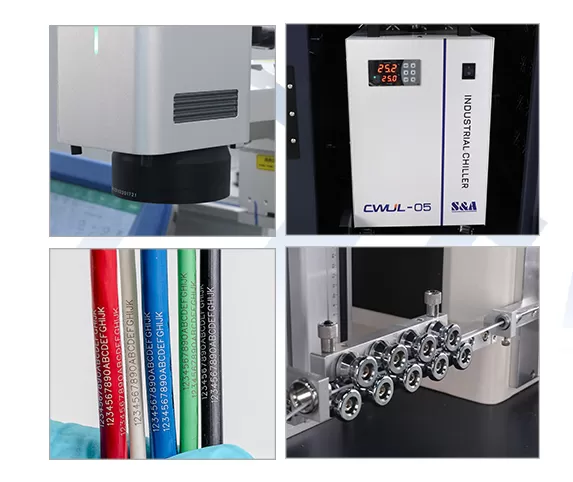

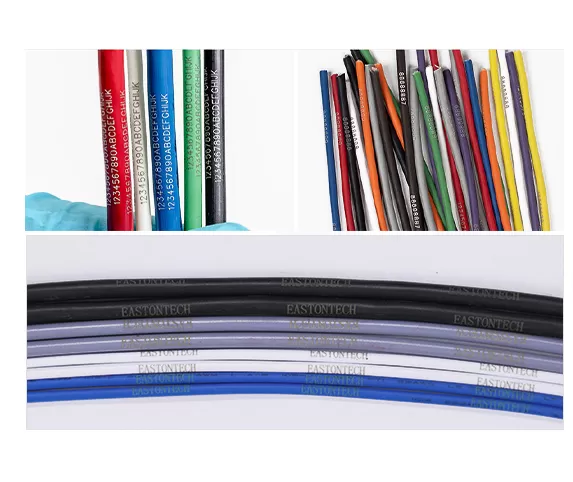

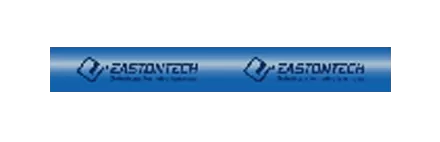

Features an advanced imported laser marking device that applies customizable codes/text before the wire is cut or stripped. This capability represents a significant technological advancement for the modern industrial wire stripping machine. Marking content is easily modified via the industrial computer settings to meet specific production requirements, ensuring fast, stable, and consumable-free operation.
Equipped with an all-metal wire straightener featuring one-key press operation for straighter wire feeding. Utilizes servo motors for precise control of the wire entry wheel, exit wheel, and the tool holder (made with imported, heat-treated materials) for accurate cutting and stripping.
Capable of automatic cutting, full stripping, half stripping, and laser marking in one integrated operation. Handles a wide range of wire types including electronic wire, silicone wire, Teflon wire, glass fabric, and insulated lines, significantly saving labor and improving efficiency.

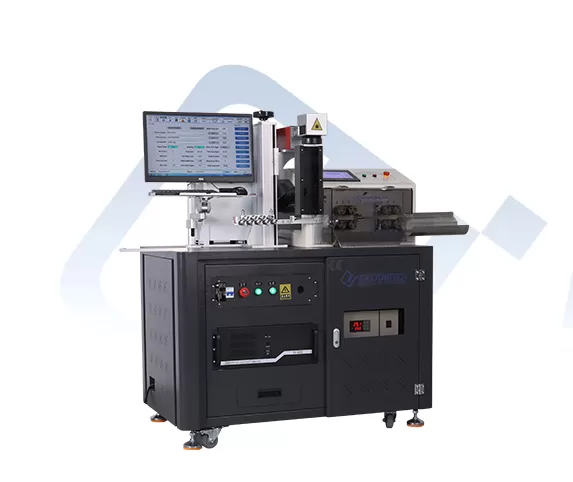

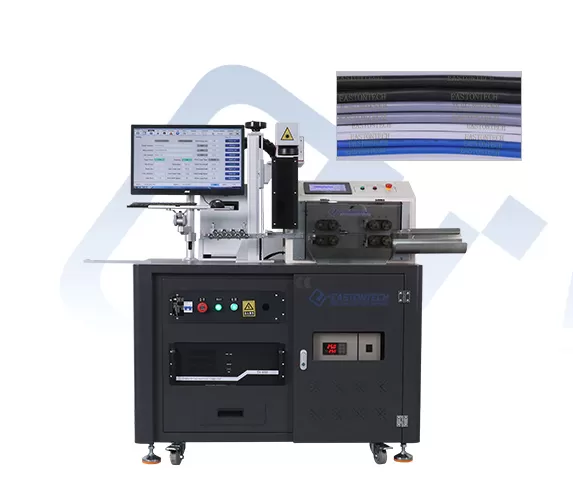

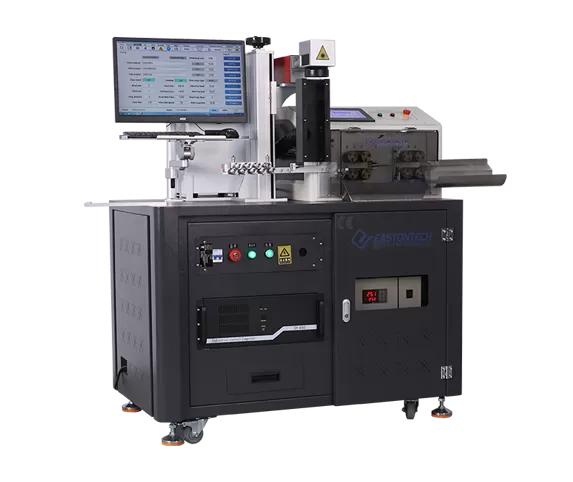

Operated via a dedicated industrial computer host paired with a 21.5-inch display, providing centralized control and easy adjustment of all stripping parameters and laser marking settings for consistent, high-precision results.
