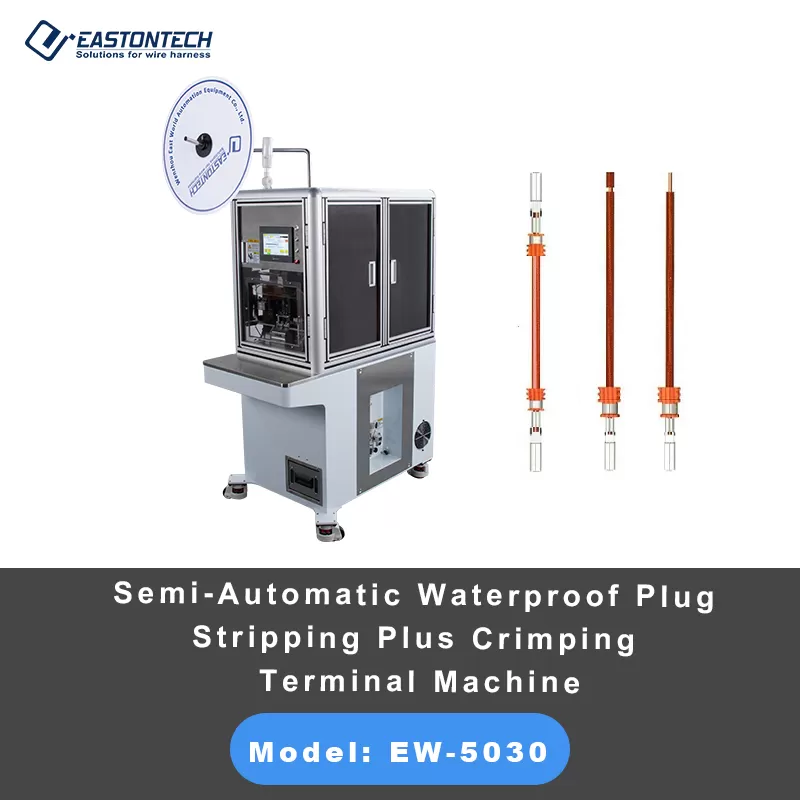

Model | EW-5030 |
Applicable wire range | 0.2-2.5mm² |
Stripping length | 0.1-10mm |
Cut precision | ±0.02 mm |
Stroke | 40mm |
Crimp capacity | 3.0T |
Power | 220V/110V/50/60HZ |
Display language | Chinese/English |
Compressed air | 0.5-0.7MPA |
External dimensions | 850mm*880mm*1300mm (length, width and height) |
Weight | 300KG |
CFM | Optional |
Waterproof plug size | ≤10*10mm |

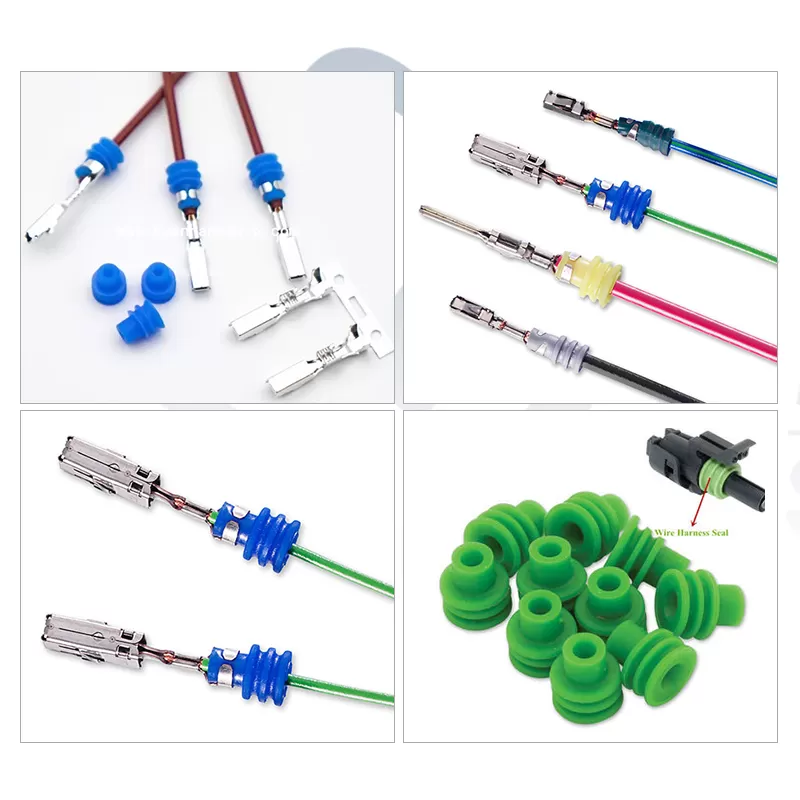

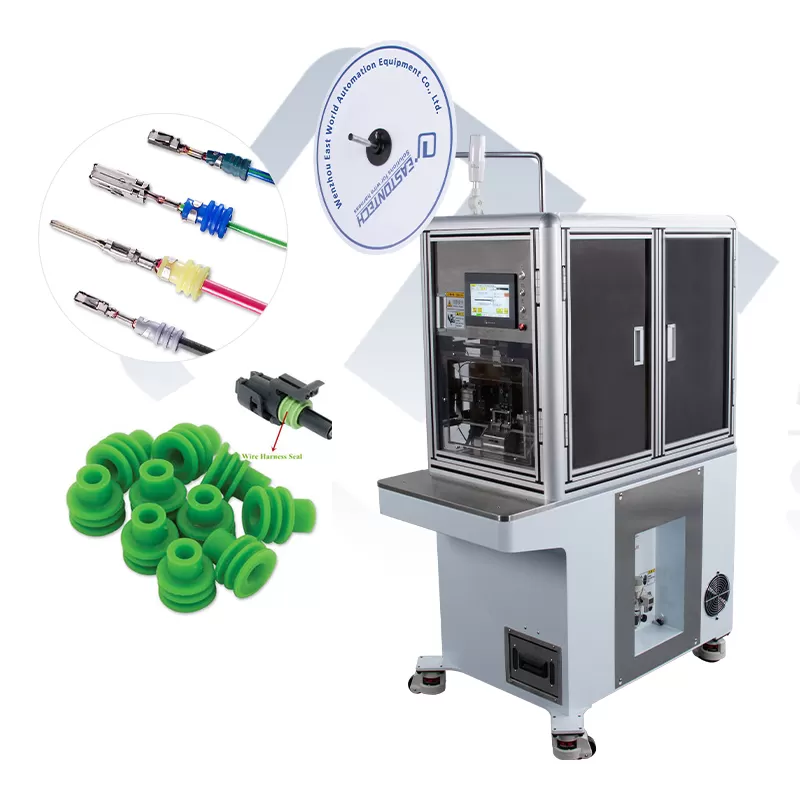

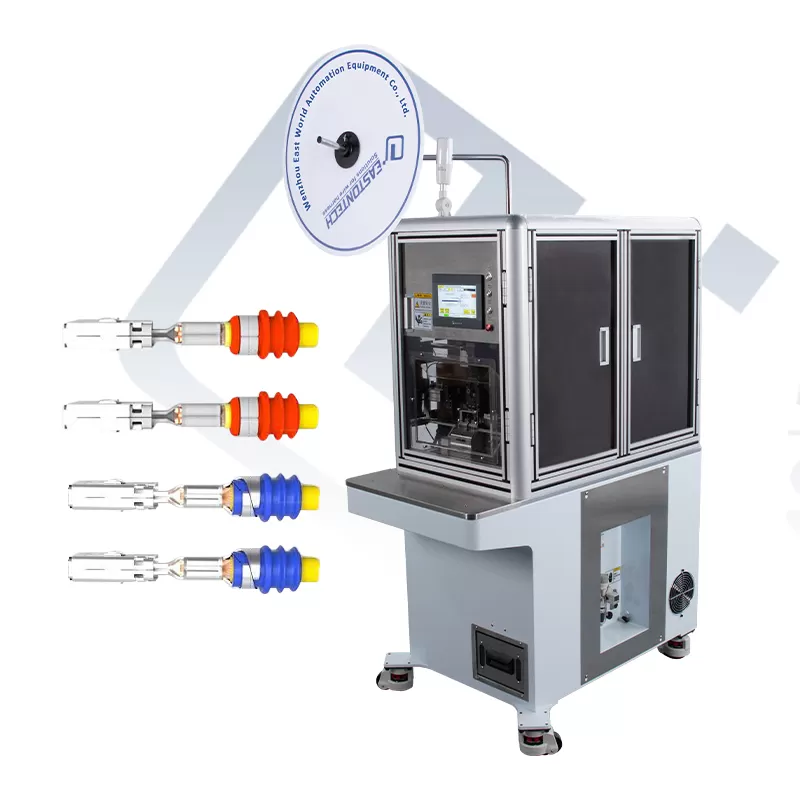

The machine completes three key wire harness processes in one cycle: waterproof seal insertion, wire stripping, and terminal crimping. This integrated design reduces manual handling, improves efficiency, and ensures consistent processing quality.

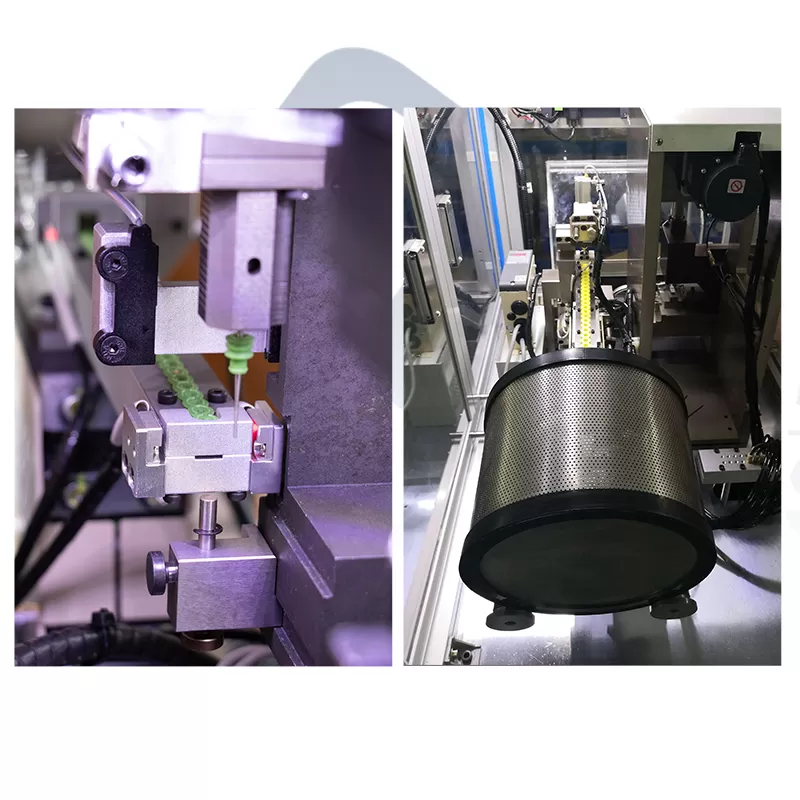

The stripping slide mechanism uses lead screw transmission, guaranteeing precise positioning and accurate stripping length control, which is critical for maintaining correct seal positioning and crimp integrity.

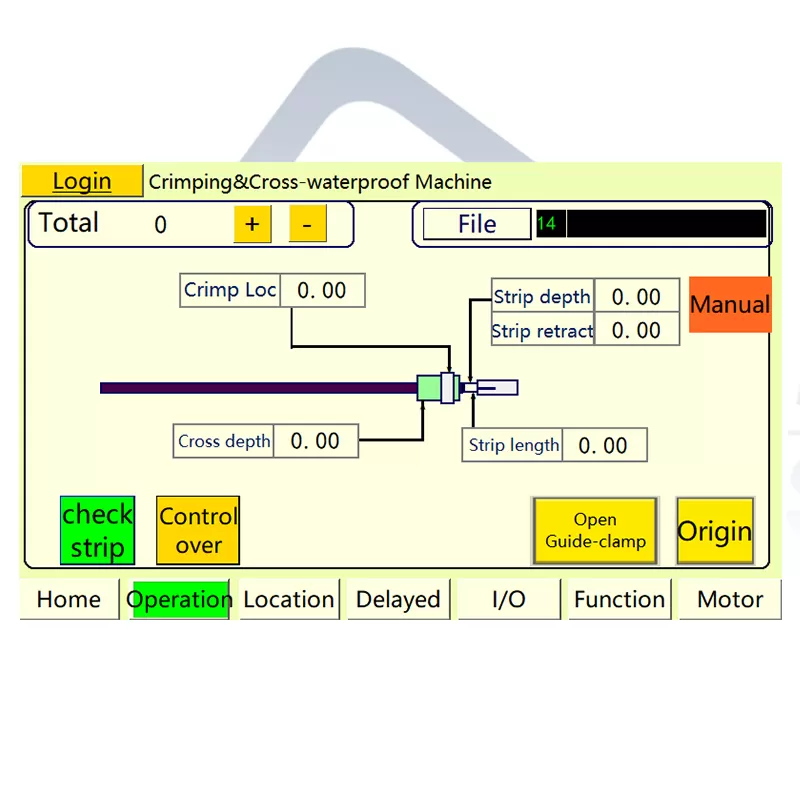

Operators can easily adjust stripping length, seal insertion depth, and crimping insulation grip position via digital settings, allowing the machine to adapt quickly to multiple wire harness configurations and production requirements.
