Name: EW-5040-2 Full Automatic Terminal Machine Press Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock



Specification

Model	EW-5040-2	EW-5040-3	EW-5040-4
Motor Power	750W	1100W	1500W
Crimping Force	20KN	30KN	40KN
Crimping Stroke	30mm/40mm	30mm/40mm	30mm/40mm
Voltage	110V/220V/50Hz/60Hz	110V/220V/50Hz/60Hz	110V/220V/50Hz/60Hz
Dimension	250280650mm	250280650mm	260300710mm
Weight	70kgs	72kgs	78kgs

Features



Speed Adjustable

Tailor crimping speed to match your production needs.

01


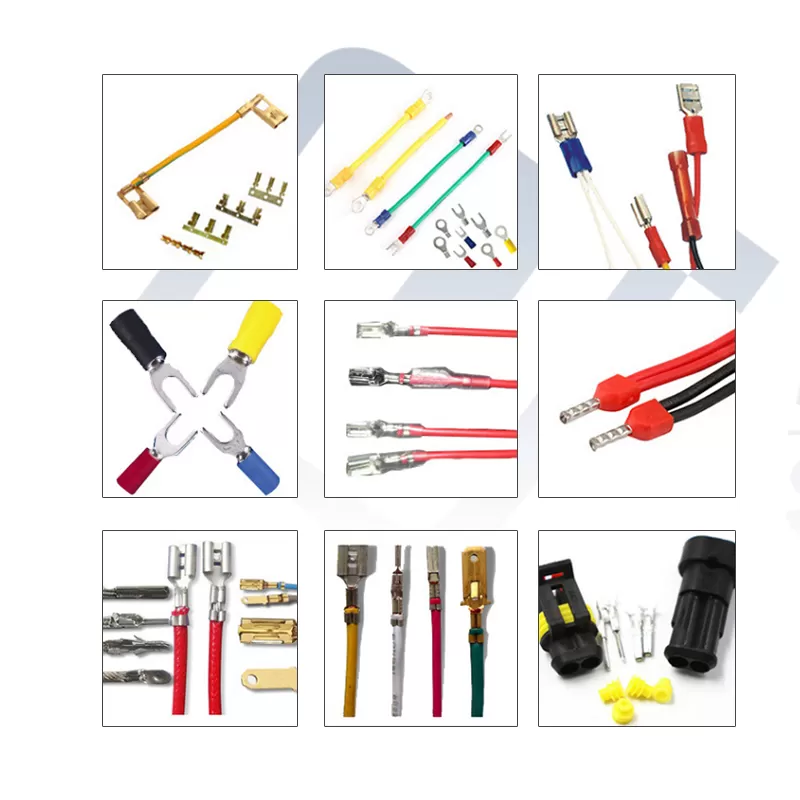

Multi-Terminal Compatibility

One machine handles diverse terminal types, reducing equipment costs.

02


Robust Construction

Reinforced design for heavy-duty industrial use.

03
