Name: EW-50A Wire Stripping and Crimping Machine (side feeding)
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

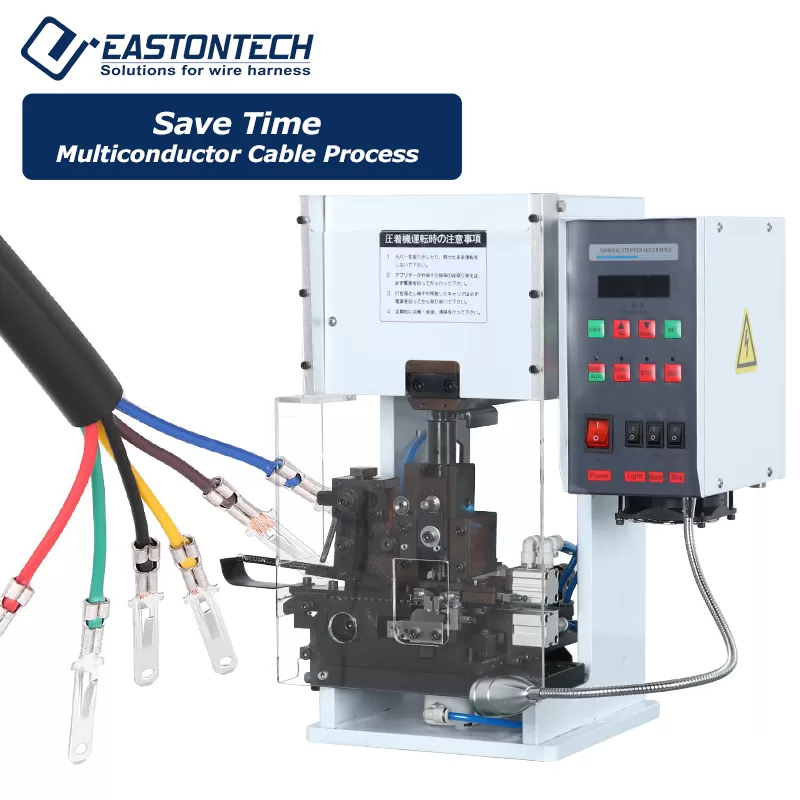

EW-50A Wire Stripping and Crimping Machine (side feeding)

This is a wire stripping and crimping terminal machine. It can work when plugged in. It is suitable for crimping various side feeding terminals. After the wire end is placed in the crimping position, the machine will automatically strip the wire and then crimp it. The process of terminal connection, stripping and crimping terminals can be combined to effectively reduce labor costs, and product consistency can also be improved. It is especially suitable for stripping and crimping terminal operations of sheathed core wires. With its efficient performance and affordable terminal crimping machine price, this model offers excellent value for businesses seeking to automate their wire processing operations without significant capital investment.



Specifications of EW-50A

Model	EW-50A-1	EW-50A-2	EW-50A-3
Applicable wire diameter	AWG36-AWG20	AWG36-AWG16	AWG26-AWG16

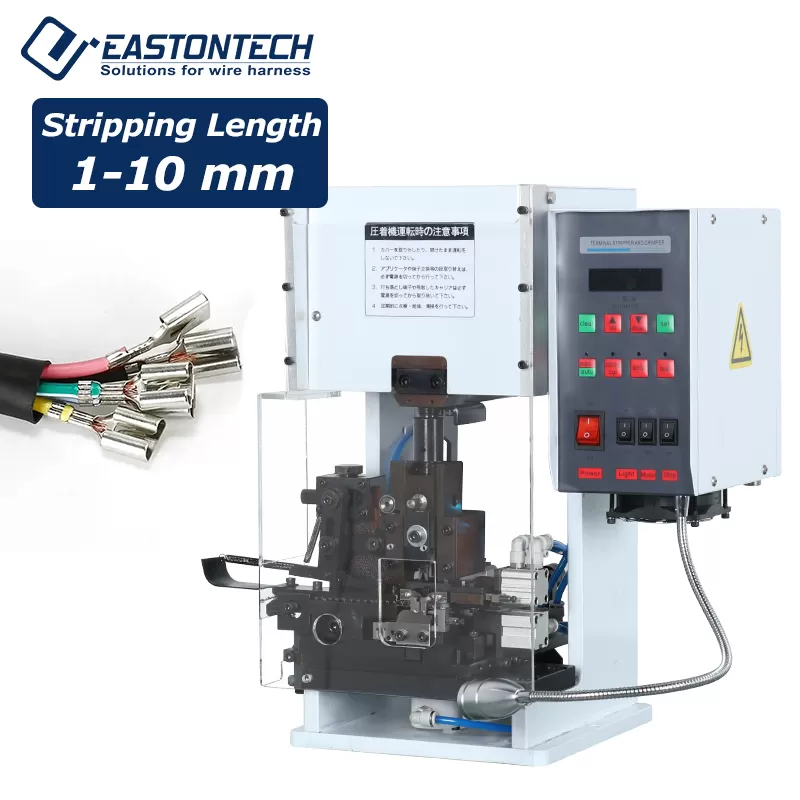

Stripping length	1-10mm	1-10mm	1-10mm
Stroke	20mm	20mm	30mm
Crimping force	1.5T	2T	3T
Motor rate	400W	750W	1100W
Machine rate	750W	1500W	1500W
Air pressure	0.3-0.4mpa	0.3-0.4mpa	0.3-0.4mpa
Power	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ
Start Mode	Pedal/keyboard	Pedal/keyboard	Pedal/keyboard
N.W	80kg	80kg	120kg
Dimension	530400830mm	530400830mm	5004501000mm

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Processing Capabilities
