Name: EW-5270 Full Automatic Terminal Machine Press Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

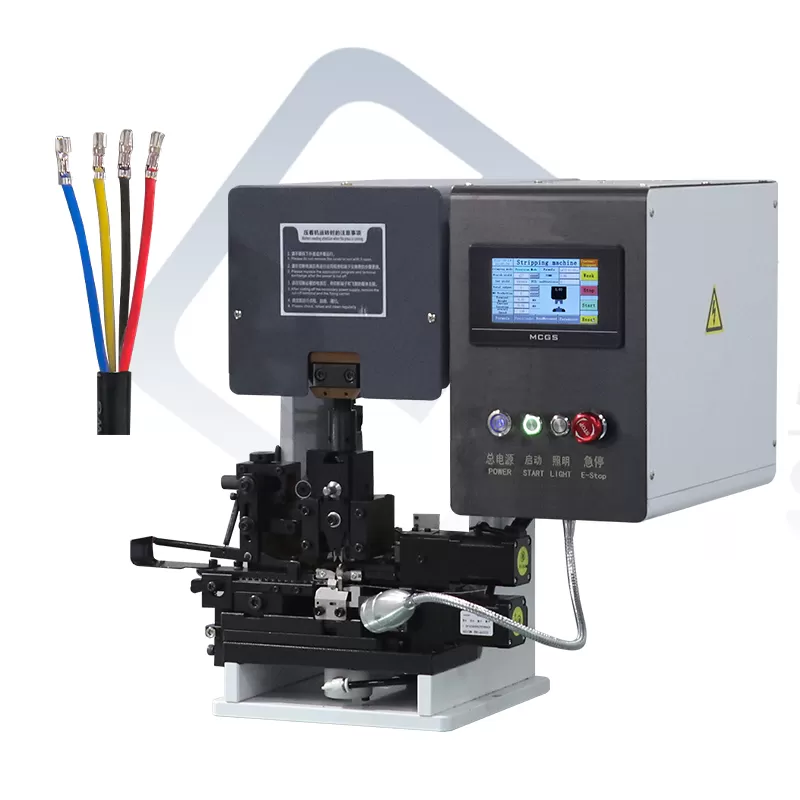

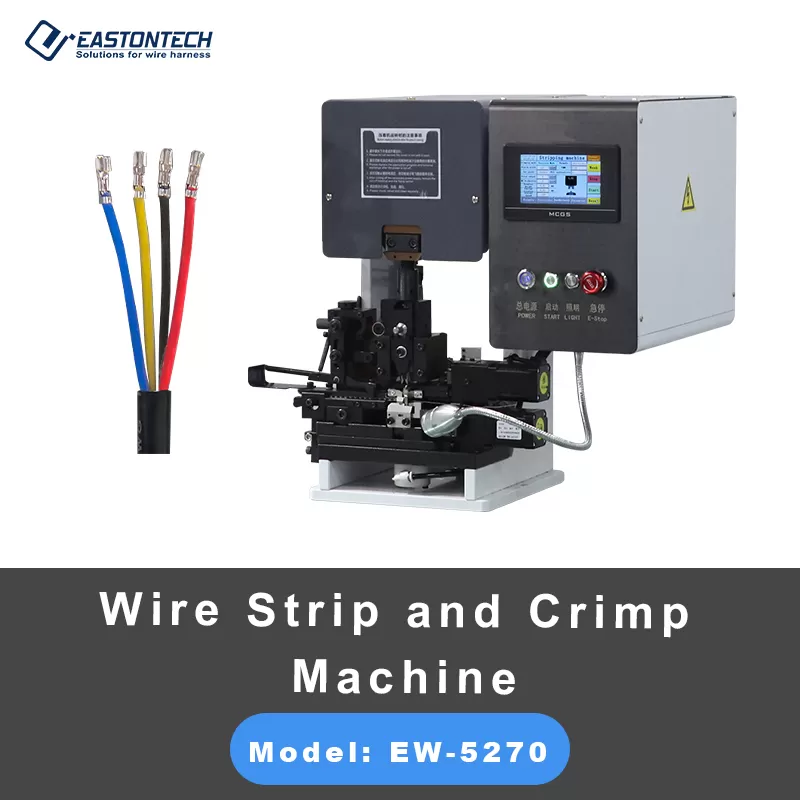

EW-5270 Full Automatic Terminal Machine Press Machine

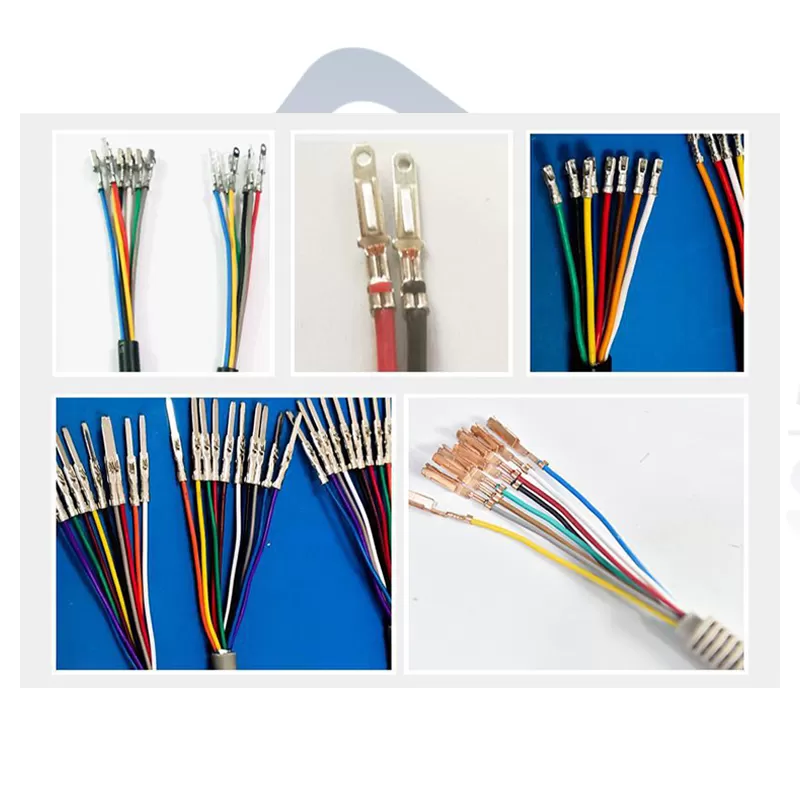

This is a semi-automatic servo-type wire stripping and crimping terminaI machine, which is suitable for crimping various side feeding terminals. The crimping process is precisely controlled by Mitsubishi servo motors. The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the rmachine will automatically strip the wire first and then crimp the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency, especially for stripping and crimping terminals for sheathed core wires.



Specification

Model	EW-5270-1	EW-5270-2
Applicable wire diameter	AWG36-AWG20	AWG36-AWG16
Stripping length	1-10mm	1-10mm
Stroke	30mm	30mm
Crimping force	1.5T	2T
Motor rate	400W	750W
Machine rate	750W	1500W
Air pressure	0.3-0.4mpa	0.3-0.4mpa
Power	220V/110V/50HZ/60HZ	220V/110V/50HZ/60HZ
N.W	80kg	80kg
Dimension	750400830mm	750400830mm
Start mode	Standard Pedal start. Touch start is optional.	Standard Pedal start. Touch start is optional.

Features



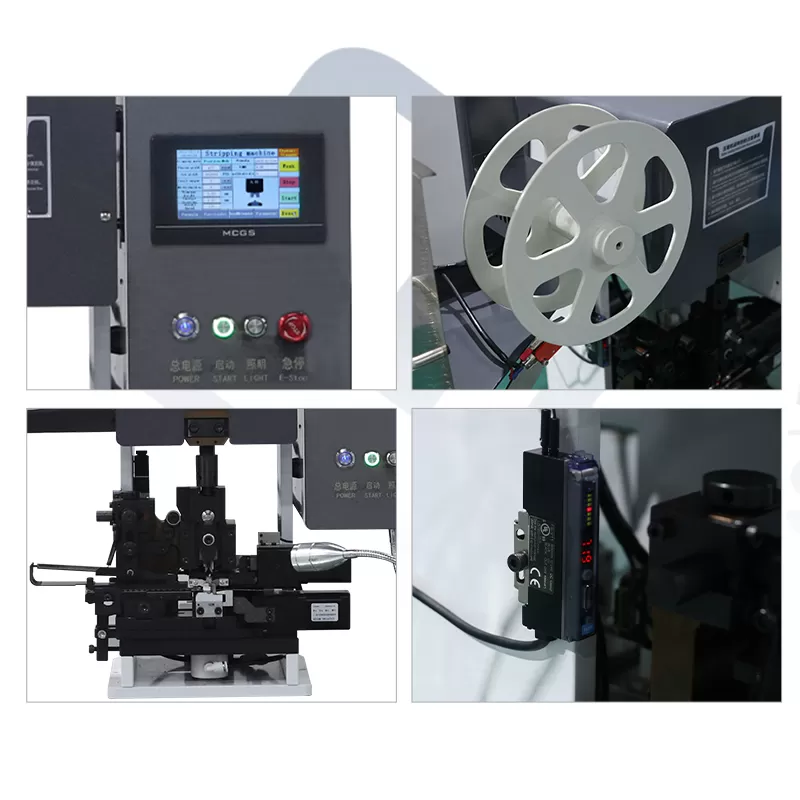

English Button Operation

*Simple operation, clear data, strong and durable,fast response.

01


Automatic Waste Paper Collection Function

*Environmental protection,easy to collect the waste paper.

02


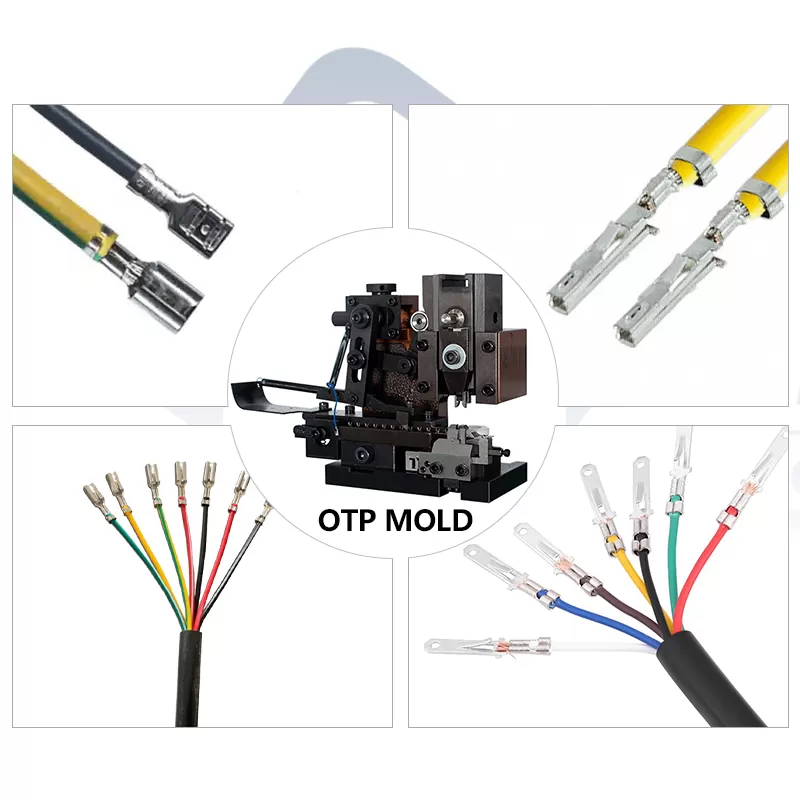

Suitable for Various Horizontal Terminals

*Stable performance,high precision,fast speed,good crimp quality.

03


Metal Hose LED Lights

*Soft light,the position adjustable

04
