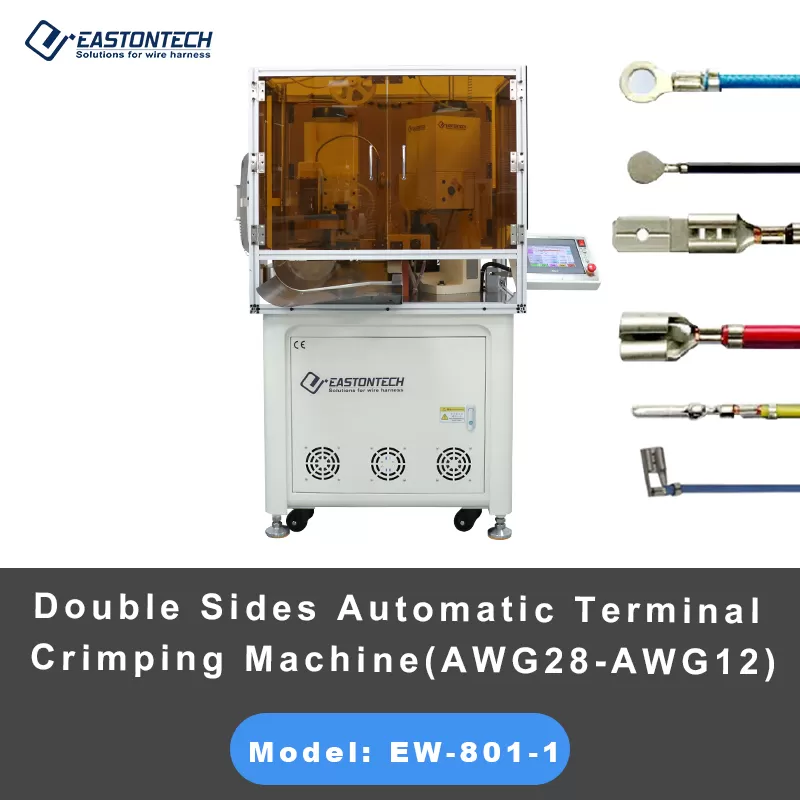

Model | EW-801-1 |
Applicable wire range | AWG28-AWG12 |
Stripping length | 0-10mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 45-9999mm |
Capacity | 3000-4500pcs/hour |
Crimping force | 2.0T |
Applicators | 30mm or 40mm strokes for optional |
Air pressure | 0.4-0.6Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Display language | Chinese/English |
Dimension | 700*800*1500mm |
Weight | 358Kg |
Power cord plug | European, USA, Chinese plug |

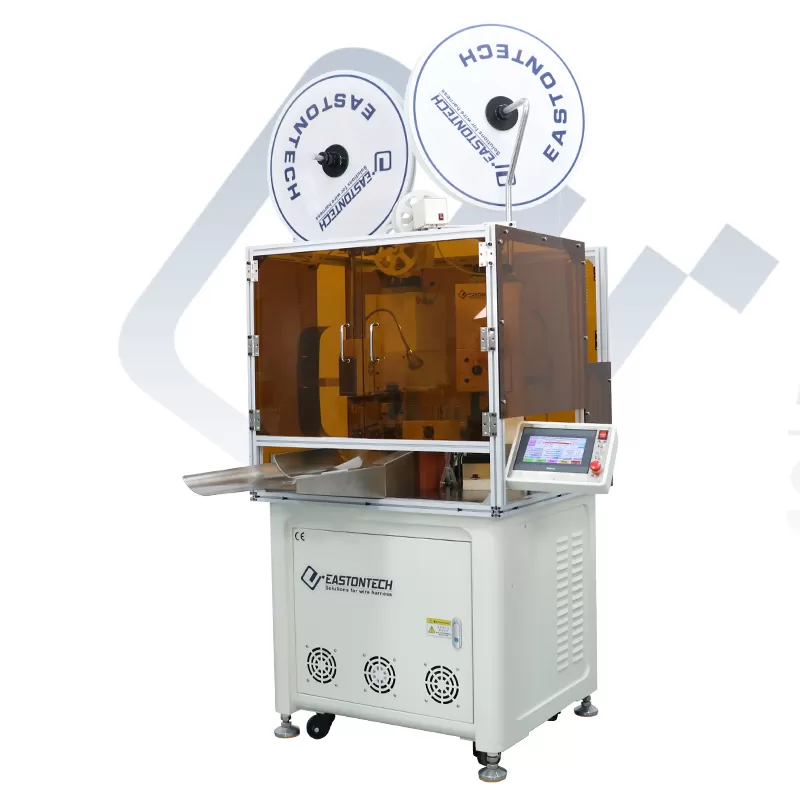

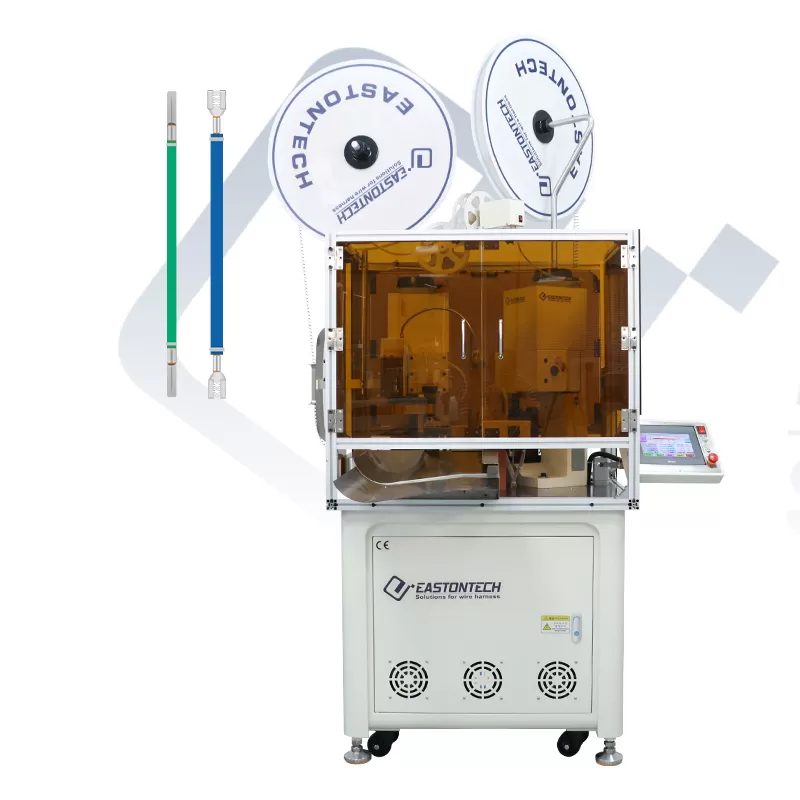

The EW-801-1 combines cutting, stripping, and terminal crimping in one machine, significantly reducing manual handling and improving production efficiency.
Production capacity reaches 3,000–4,500 pcs per hour, making it suitable for medium to large batch harness production.

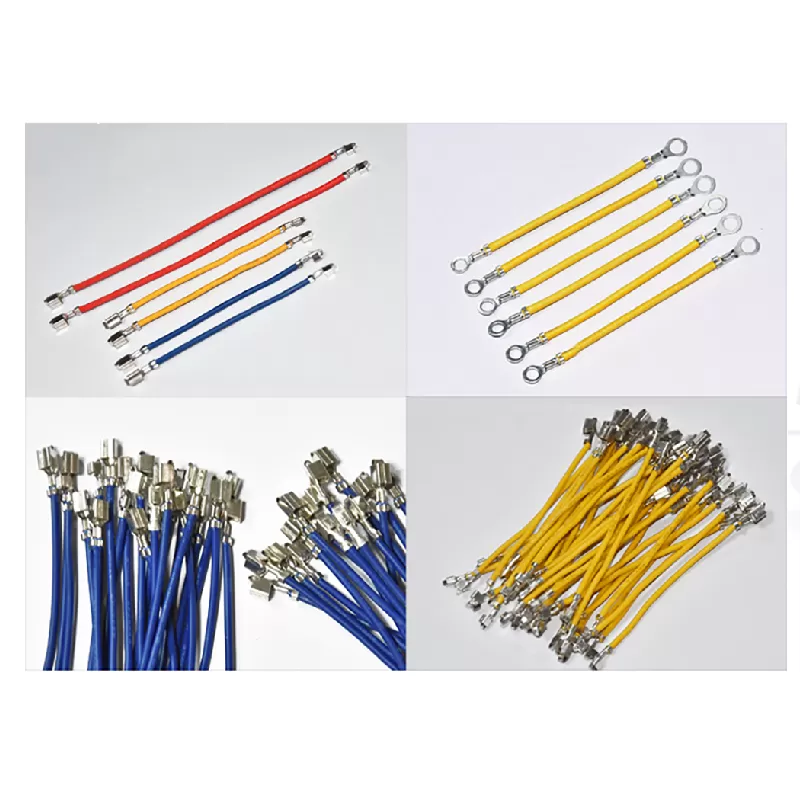

Designed to process AWG28–AWG12 wires, the machine covers a broad range of applications from fine signal wires to medium power cables.
Flexible parameter settings allow quick adjustment for different wire types and production requirements.

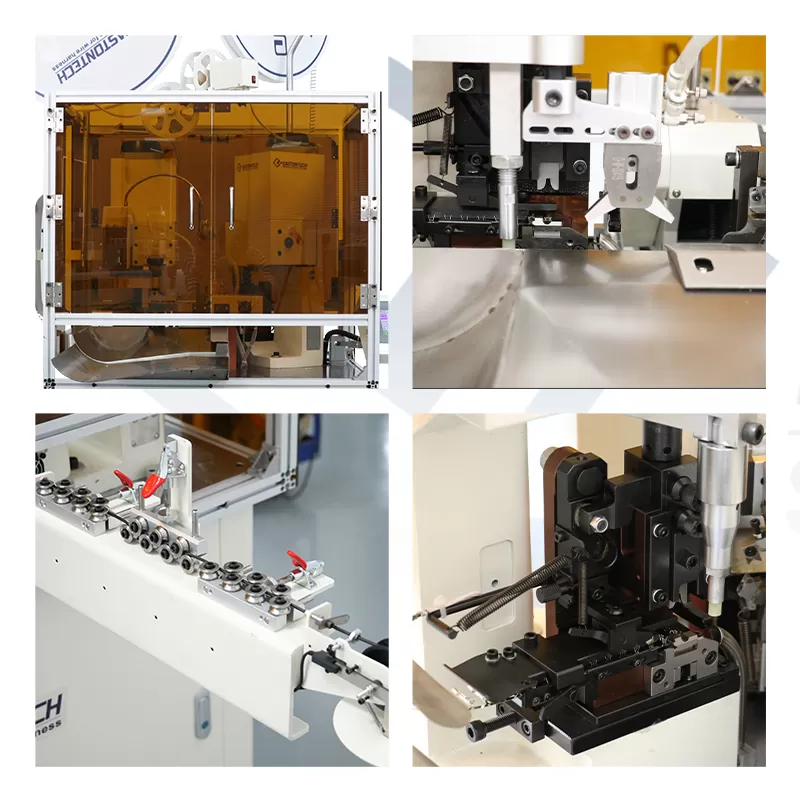

The machine adopts a full servo crimping system combined with interchangeable 30mm / 40mm applicators, ensuring stable crimping quality and high repeatability.
Cutting accuracy reaches ±(0.5+0.002×L) mm, delivering precise wire processing even for longer cables.
Equipped with a bilingual touchscreen interface (Chinese & English), operators can easily configure processing parameters and monitor production status.
The system includes multiple detection functions such as:
Wire missing detection
Terminal detection
Low air pressure alarm
Optional crimping force monitoring

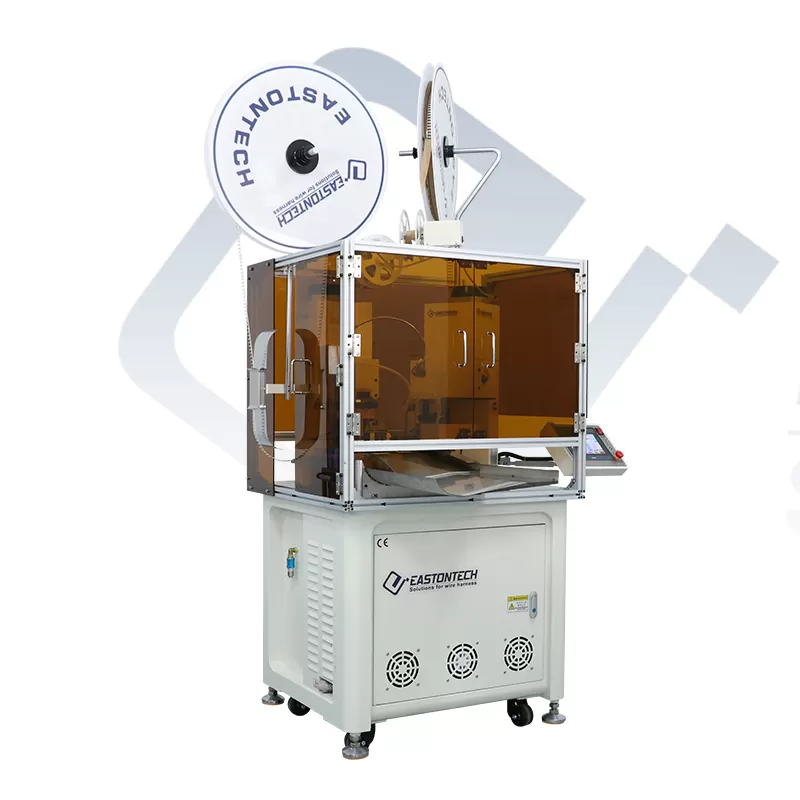

A fully enclosed safety cover protects operators and improves operational safety.
