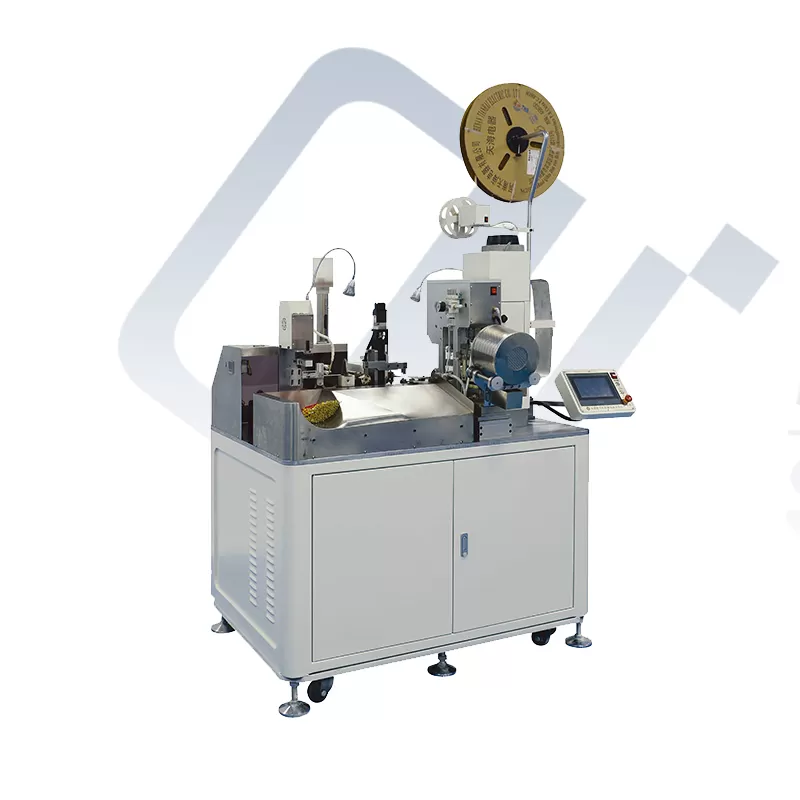

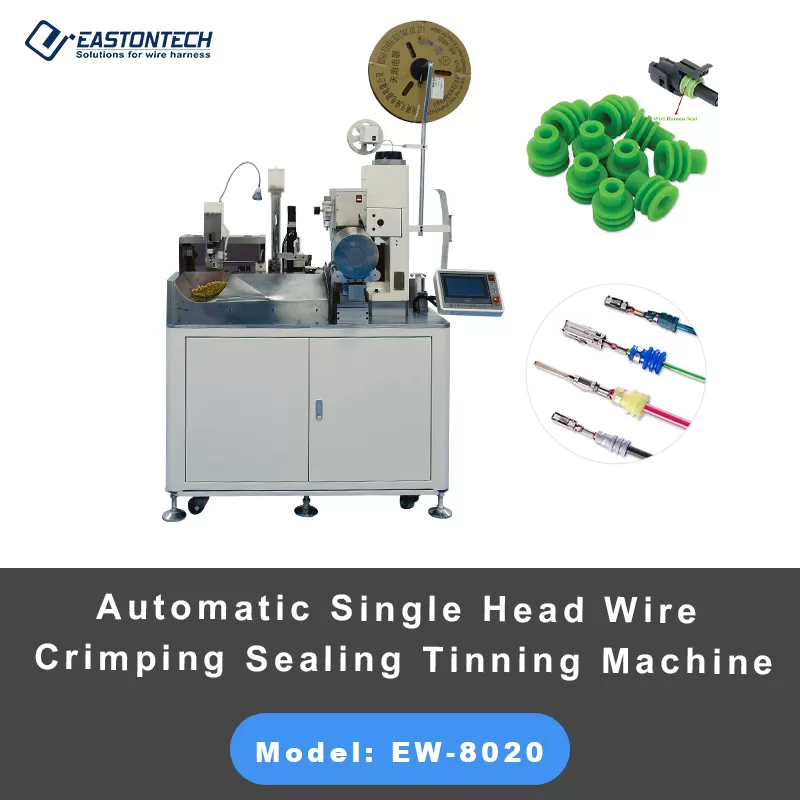

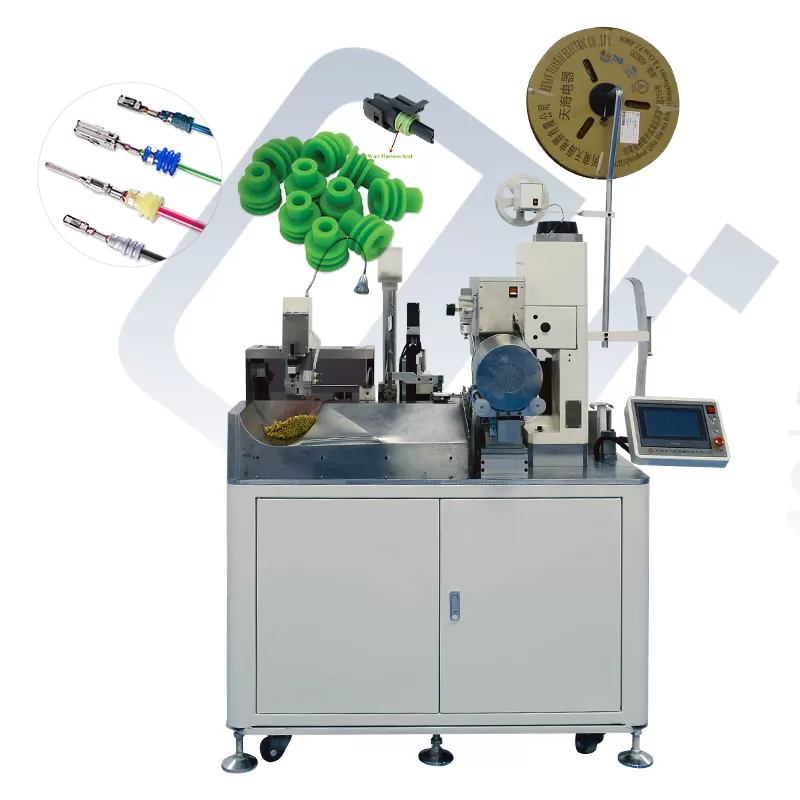

Model | EW-8020 |
Applicable wire range | AWG28-AWG14 |
Cut length | 50-9999mm (set 1mm unit) |
Cut precision | ±1 (1+0.002*L) mm, L=cut length |
Stripping length | 1.5-10mm |
Crimp capacity | 2.0T/3.0T |
Power | 220V/110V/50/60HZ |
Productivity | 3000pcs/hour |
Compressed air | 4-6kgf |
External dimensions | 700mm*800mm*1500mm (length, width and height) |
Weight | 348KG |
Function | Both ends cutting stripping, single end sealing |
Detection unit | Wire/Terminal loss; Wire tangling; Low air pressure |
CFM | Optional |

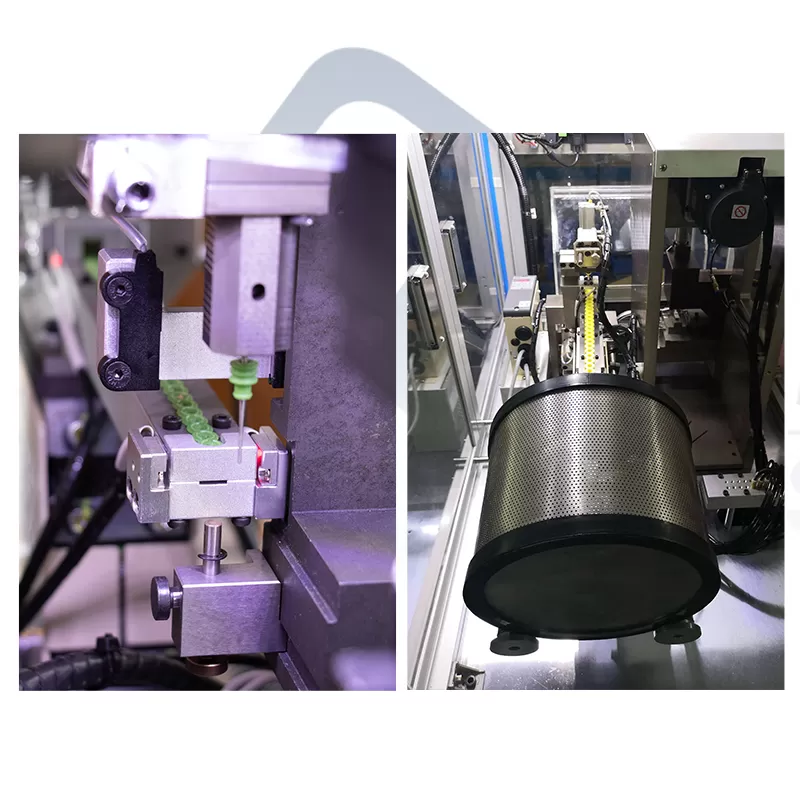

The vibrating bowl feeder automatically arranges and delivers waterproof seals to the guide rail, ensuring stable and continuous feeding. This system greatly reduces manual intervention and ensures accurate seal positioning.

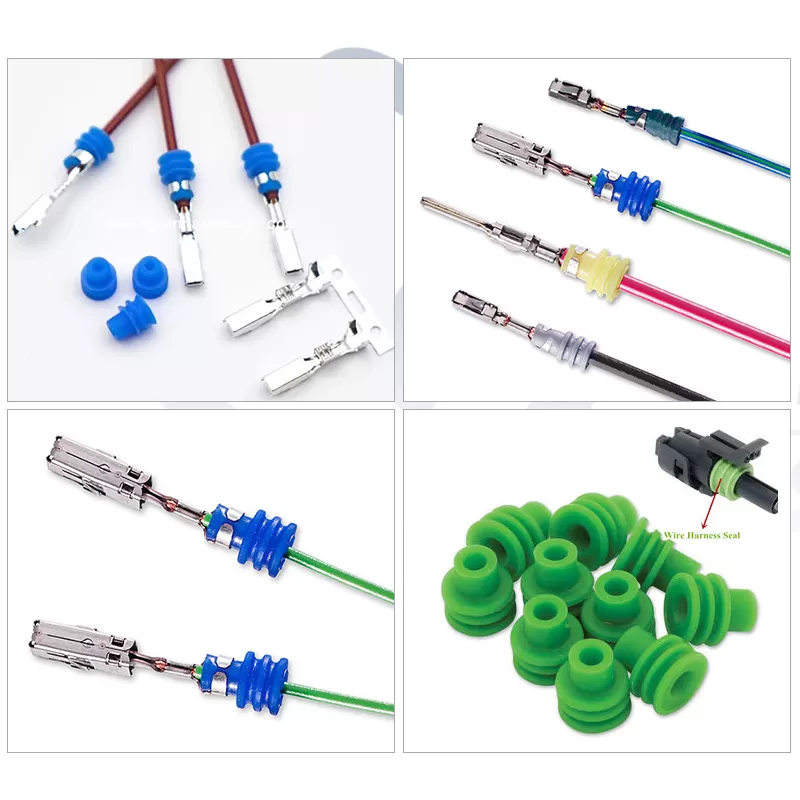

The machine performs precise waterproof seal insertion combined with wire twisting and tinning, guaranteeing strong conductor bonding and reliable waterproof performance for demanding harness applications.

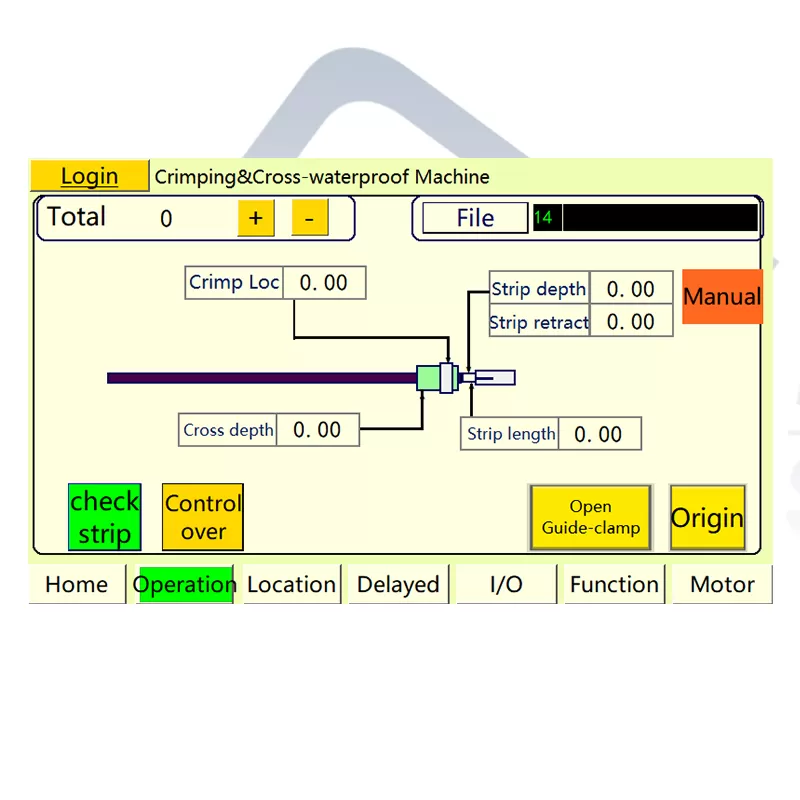

Equipped with a user-friendly KINCO touchscreen interface, operators can easily adjust parameters such as stripping depth, seal insertion position, and tinning settings. The system supports quick parameter changes for different wire specifications.
The EW-8020 features a compact footprint while maintaining a production capacity of up to 1000–1300 wires per hour. High-precision stepper motor control ensures fast operation, stable performance, and minimal maintenance.
