Name: EW-8035 Fully Automatic Two Wire Joint Crimping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

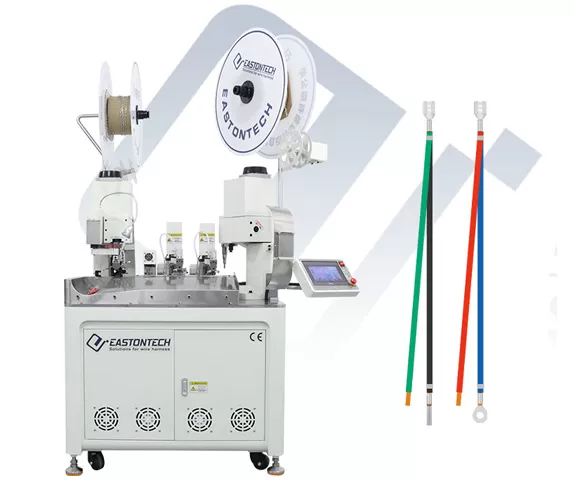

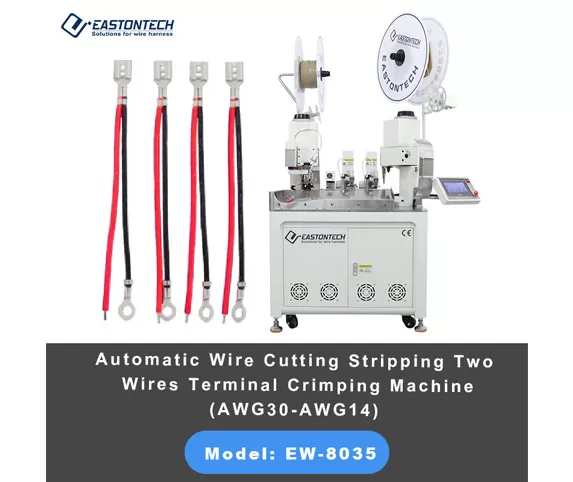

EW-8035 Fully Automatic Two Wire Joint Crimping Machine

This economical fully automatic dual-wire terminal crimping machine features two independent wire feeding mechanisms and two terminal crimping stations, enabling simultaneous processing of two wires with different diameters and crimping of different terminals.The system performs wire cutting, stripping, and terminal crimping in a single automated workflow, with the capability to combine one end of two wires into a single terminal while independently proceessing the other ends.

The versatile design prevents equipment idle time by enablingquick transitions between different product types. This adaptability make it an ideal solution for manufacturers requiring efficient multi-wire harneess processing with consistent quality and high throughput capabilities.



Specifications of EW-8035 Fully Automatic Two Wire Joint Crimping Machine

Model	EW-8035
Applicable wire range	AWG30-AWG14
Stripping length	Front: 0.5-8mm End: 0.1-10mm
Cut precision	±0.2 mm+L*0.002mm (L=100mm)
Cutting length	41-99999mm
Capacity	3500pcs/hour (L=50-100mm)
Crimping force	2.0T
Stroke	30mm
Air pressure	0.5-0.7Mpa
Cutting depth	Max. 5.5mm
Applicators	OTP applicator
Detection	Low air pressure, Wire run-out, Wire overload, Terminal run-out, Terminal overload, Crimp error
Power	220V/110V/50/60HZ
Dimension	75010001800mm
Weight	500KGS

Features of EW-8035 Fully Automatic Two Wire Joint Crimping Machine



English LCD Screen

Full automatic LCD screen, easy operation, convenient adjustment(English-Chinese language)

01


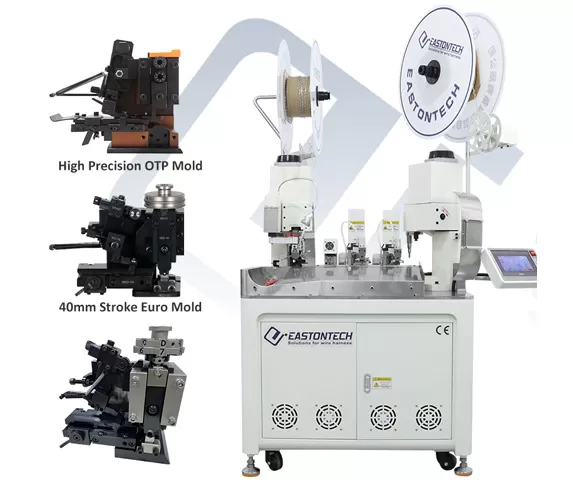

Applicator Mold

Quick and easy for applicator change. Precision wire cutting stripping and crimping,high efficiency,stable performance.

02


Wire Clamp

Clamp wire after stripping, no damage to the wire skin, high wire delivery accuracy,guaranteed size,not easy to slip and fall off.

03


Wire Straightener

Make the contact linestraight and convenientto use. The corrected leadhas no hard points and willnot damage the lead.

04
