Name: EW-8040 Fully Automatic Wire Cutting Stripping Four Wires Three Ends Terminal Crimping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

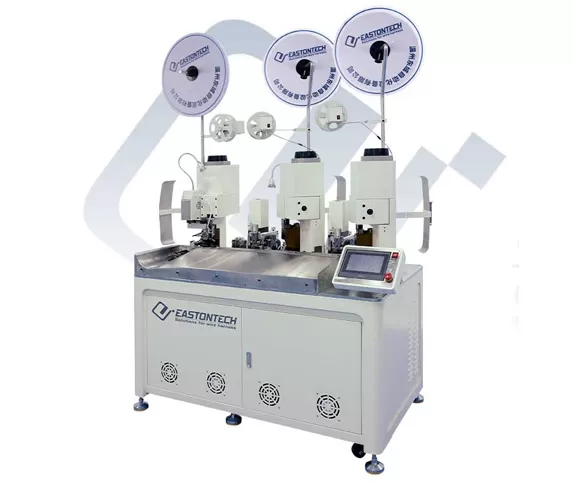

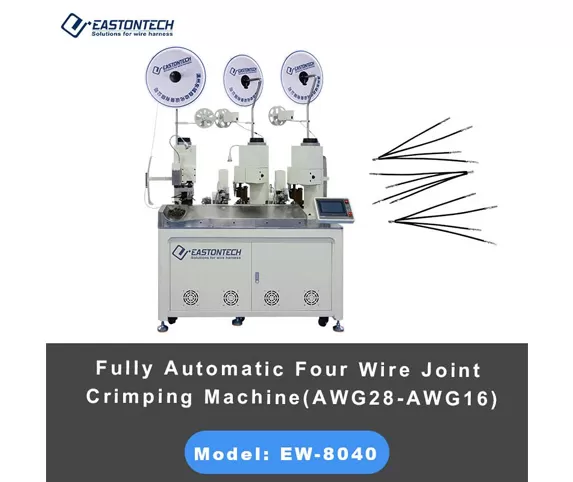

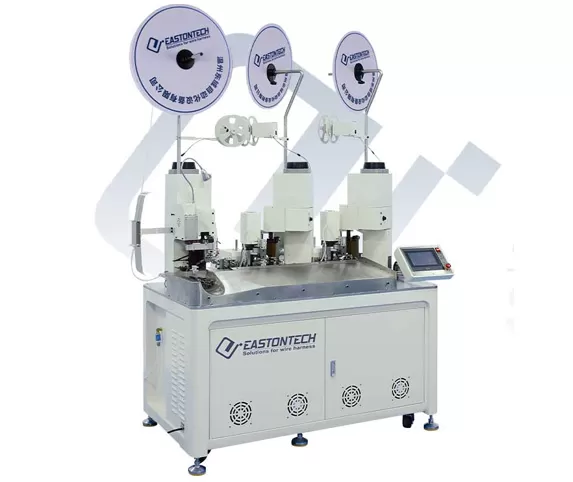

EW-8040 Fully Automatic Wire Cutting Stripping Four Wires Three Ends Terminal Crimping Machine

This fully automatic four wires terminal crimping machine features three independent wire feeding mechanisms and three terminal crimping stations, enabling simultaneous processing of four wires with different diameters and crimping of different terminals. The system performs wire cutting, stripping, and terminal crimping in a single automated workflow, with the capability to combine one end of four wires into a single terminal while independently proceessing the other ends.

The versatile design prevents equipment idle time by enablingquick transitions between different product types. This adaptability make it an ideal solution for manufacturers requiring efficient multi-wire harneess processing with consistent quality and high throughput capabilities.



Specifications of EW-8040 Fully Automatic Wire Cutting Stripping Four Wires Three Ends Terminal Crimping Machine

Model	EW-8040
Applicable wire range	AWG28-AWG16
Stripping length	Front 0.5-8mm End:0.1-10mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	40-9999mm
Capacity	1000pcs/hour(L=50-100mm)
Crimping force	2.0T

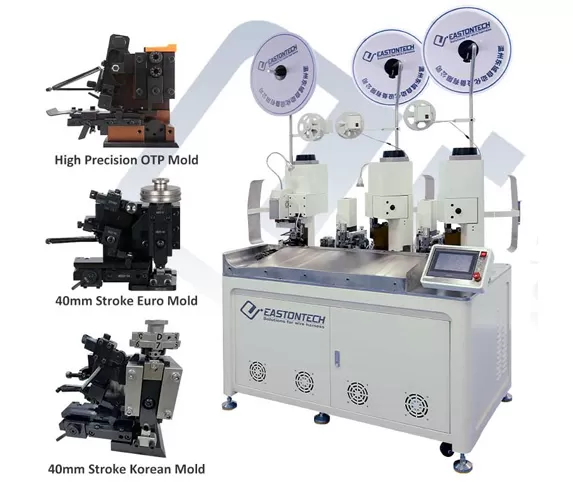

Applicators	30mm or 40mm strokes for optional
Function	Two wire both ends/one end crimping/Four wire crimp into on e terminal
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	80014001800mm
Weight	600Kg
Power cord plug	European, USA, Chinese plug

Features of EW-8040 Fully Automatic Wire Cutting Stripping Four Wires Three Ends Terminal Crimping Machine



Robotic Arm

Stable gripping of wires, saving time and effort, faster speed, and neater placement.

01


Wire Straightener

Make the contact linestraight and convenientto use. The corrected leadhas no hard points and willnot damage the lead.

02


Servo Motor

The system utilizes all servo motors, ensuring stable operation, faster speeds, and a longer service life.

03


Wire Feed Rollers

Four wire feed rollers are hardened to prevent wire slippage, ensuring high wire feeding accuracy and guaranteeing feeding speed and stability.

04
