EW-8045

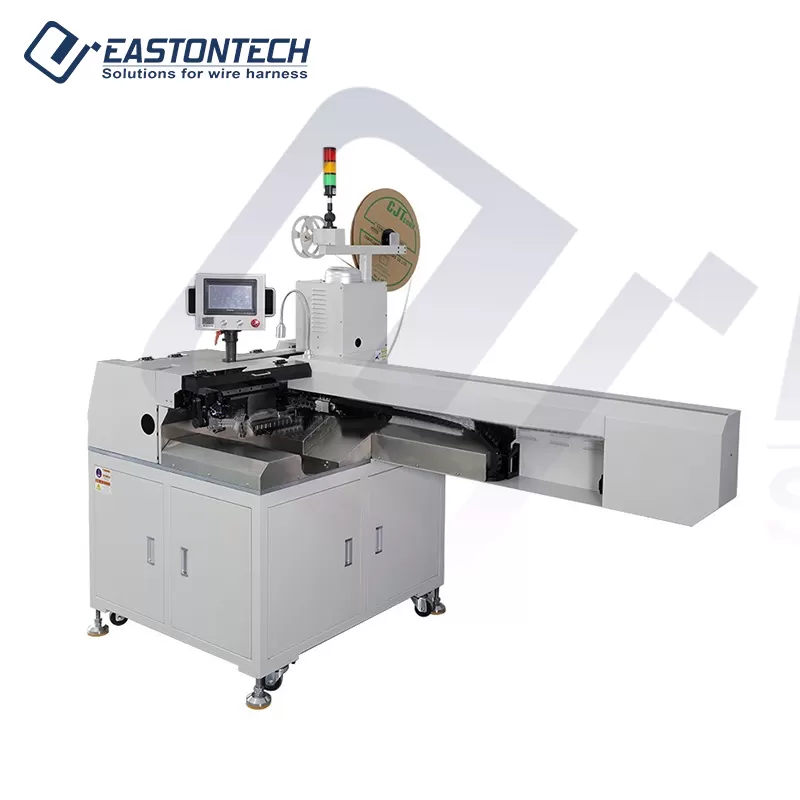

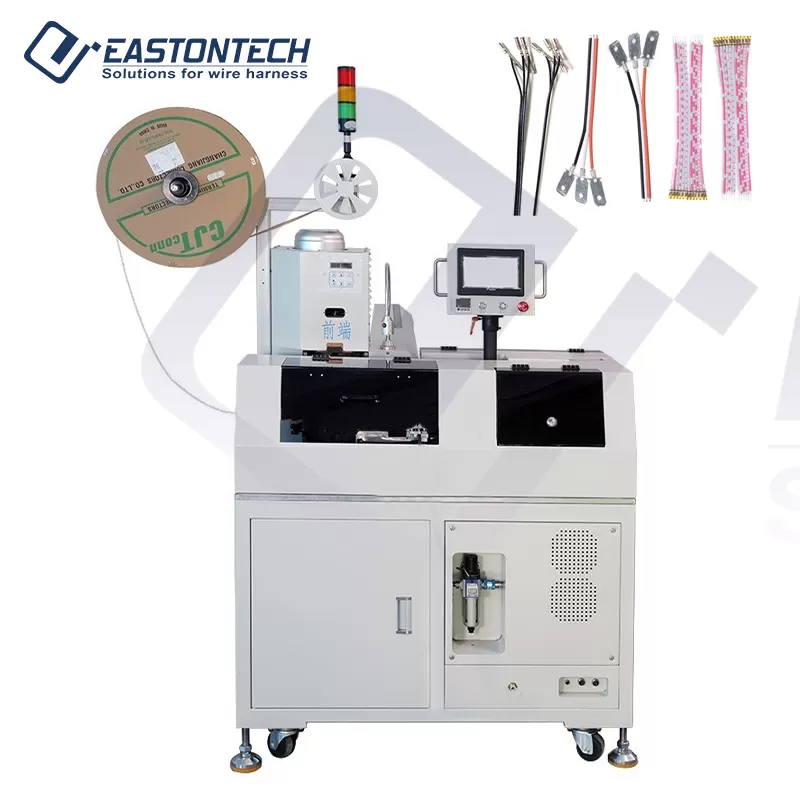

This fully automatic ribbon cable stripping crimping and tin soldering machine is specifically engineered for high-precision processing of flat ribbon cables.The integrated system seamlessly combines ribbon cable cutting, stripping, crimping, and tinning operations to deliver complete cable assemblies in a single automated process.

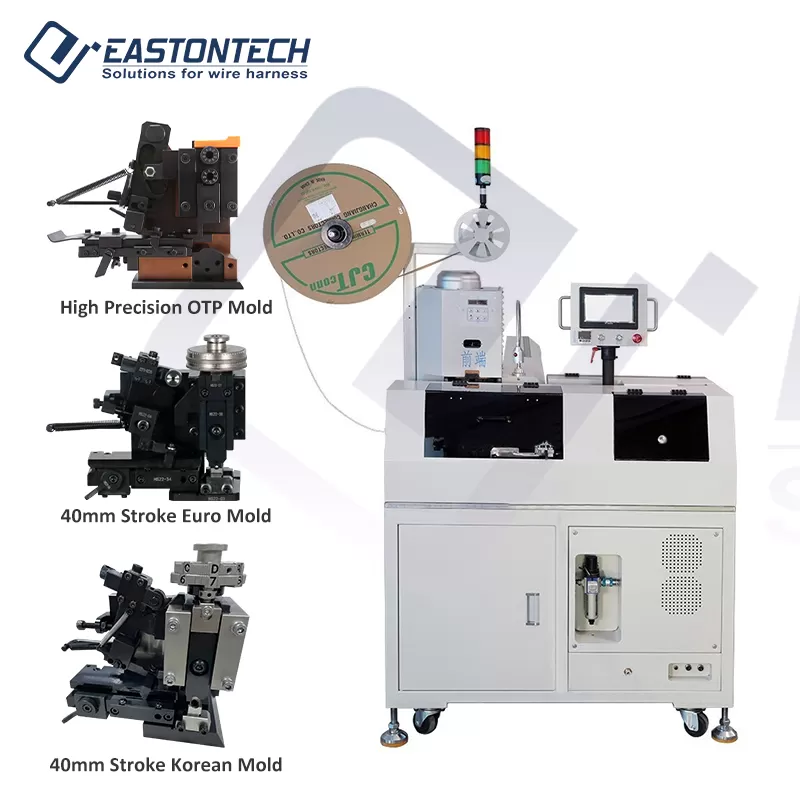

The advanced crimping mechanism ensures reliable terminal connections while the precision tinning process creates perfectly prepared wire ends for superior solderability.

Ideal for high-volume ribbon cable production in electronics, telecommunications, and industrial applications where precise crimping and professional tinning are essential for assembly quality and production efficiency.



Specifications of EW-8045

Model	EW-8045
Applicable wire range	AWG18-AWG28/FFC: AWG30-AWG18
Cutting length	45-1000mm
Stripping length	Front Side: 0-5mm; Rear Side: 0-10mm
Tinning length	2-8mm
Max. Wire width	24mm
Max. Wire Pins	24P
Crimping force	2.0T
Productivity	700pcs/hour(12P)
Air pressure	0.6-0.8Mpa
Power /Power Rating	220V/110V/50HZ/60HZ /4000W
Rating	15AL
Weight	500Kg
Dimension	193714001825mm

Features of EW-8045



English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)

01


High Precision Ball Screw Cutting and Stripping

High precision ball screwCutting and stripping adoptshigh-precision ball screw, and the cutting accuracy can reach 0.01MM.

02


Parallel Cable Splitting Die

Parallel cable splitting die so that the cable is neat and not deformed after splitting,which is convenient for crimping the terminal machine.

03


Accurating Wire Feeding

With pay-off rack, wire feeding is more accurate.

04
