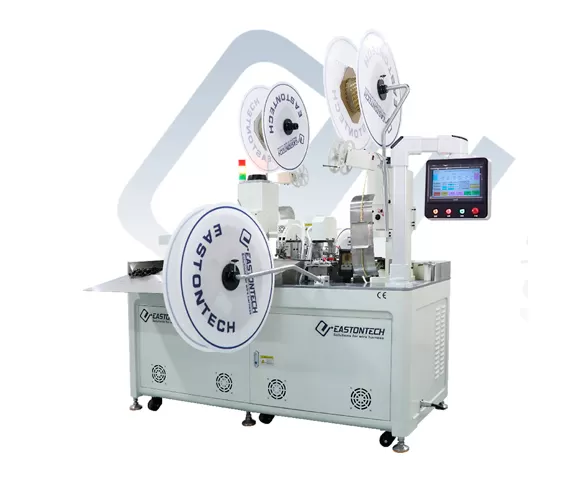

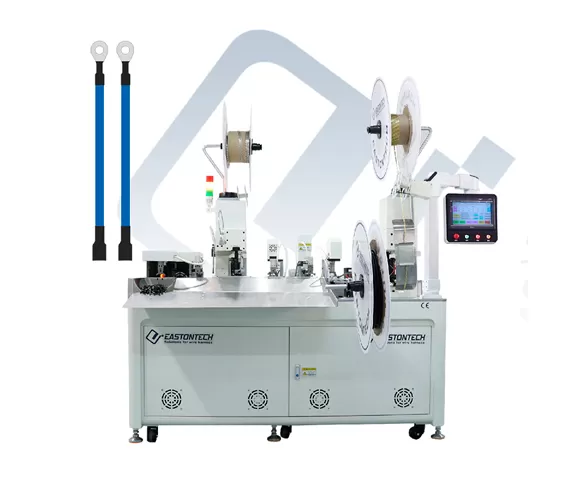

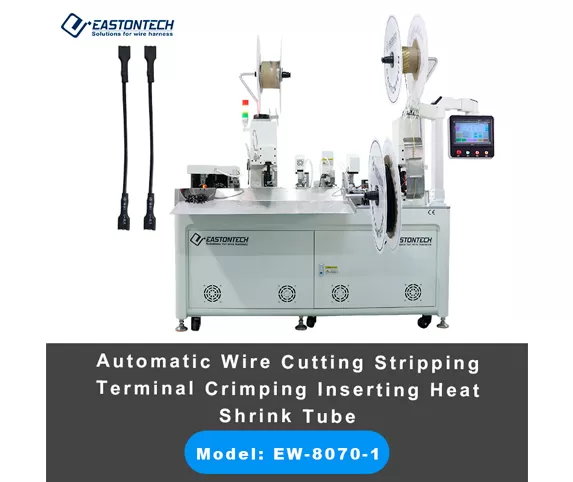

Model | EW-8070-1 |
Applicable wire range | AWG22-AWG14 |
Stripping length | Front: 0.5-8mm; Rear: 0.1-10mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 86-9999mm |
Capacity | 2000pcs/hour(L=80-100mm) |
Crimping force | 2.0T |
Applicators | 30mm or 40mm strokes for optional |
Air pressure | 0.5-0.7Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Cutting depth | The maximum adjustment is 5.50mm and the resolution is 0.01mm. |
Shrinkage tube size | 3.0-6.0mm Dia(12-18mm length) |
Dimension | 800*1400*1800mm |
Weight | 500Kg |
Power cord plug | European, USA, Chinese plug |
Supports wire cutting, single-end or double-end stripping, double-end crimping, and heat-shrink tubing in one cycle, minimizing manual intervention and boosting throughput.
Achieves cutting accuracy within ±0.2 mm for wires under 100 mm, supported by servo-driven motion control and automatic terminal feed system.

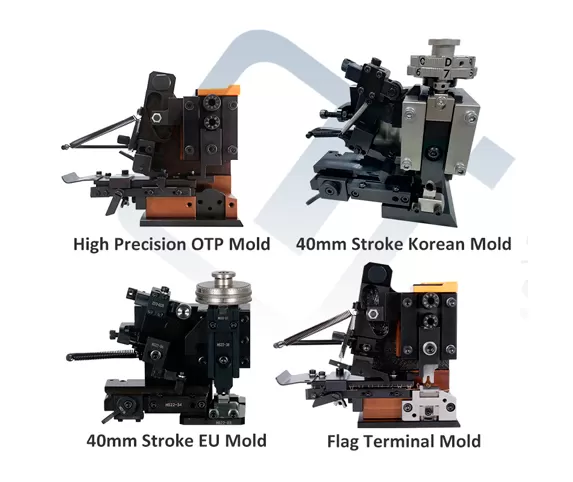

Works with a wide wire size range (#22–#14 AWG) and accommodates both transverse-feed and direct-feed OTP terminal molds, ensuring adaptability for diverse harness applications.
Equipped with a dual-language touch screen for fast parameter setting, built-in tension control with four-wheel wire feeding, and a compact, energy-saving design for space-conscious production environments.
