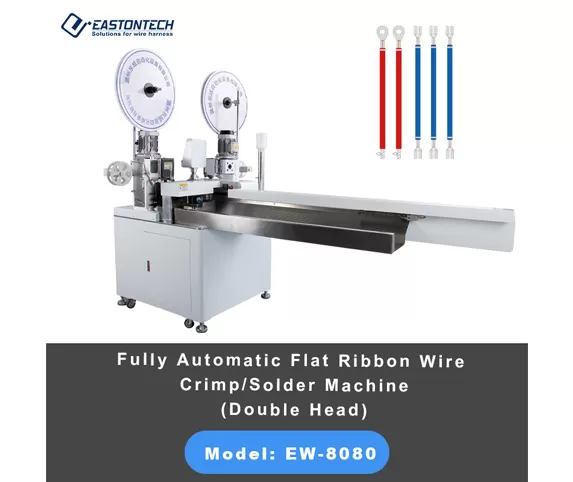

Name: EW-8080 Fully Automatic Flat Ribborn Wire Crimp/Solder Machine(Double Head)
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

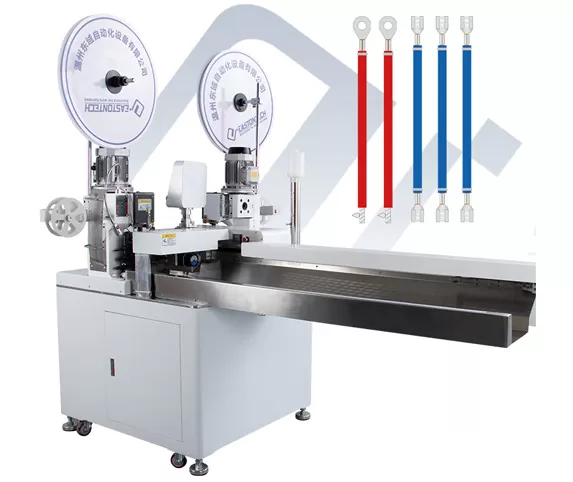

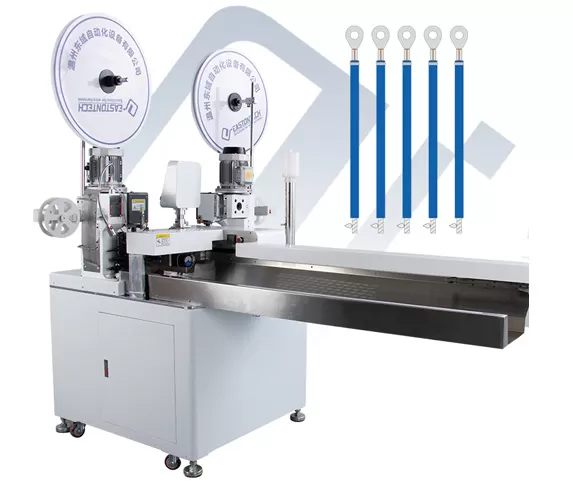

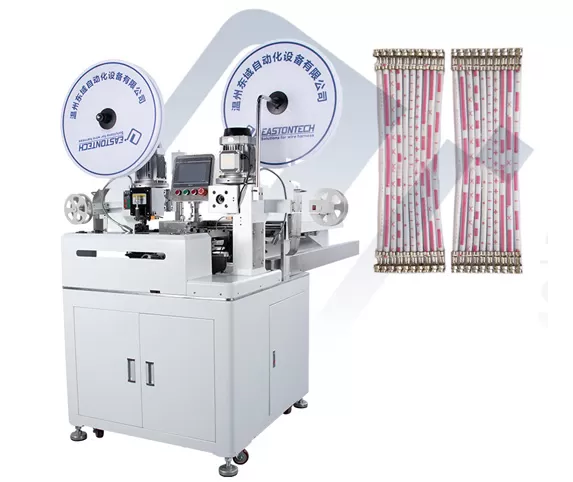

EW-8080 Fully Automatic Flat Ribborn Wire Crimp/Solder Machine(Double Head)

EW-8080 is a fully automatic multifunctional double-end terminal tinning machine with functions such as crimping, cutting, stripping, and half-stripping at both ends. It can realize riveting terminals on one end and half-stripping, full stripping or tinning on the other end. By integrating the functionality of two separate machines, it delivers exceptional space efficiency and outstanding cost-performance value for manufacturers.

Designed for high-volume production environments with minimal maintenance requirements, this space-saving solution helps manufacturers reduce equipment costs, downtime expenses, and operational complexity while maintaining consistent quality output across various connector types and wire specifications.



Specifications of EW-8080 Fully Automatic Flat Ribborn Wire Crimp/Solder Machine(Double Head)

Model	EW-8080
Applicable wire range	AWG16-AWG32, Flat cable 2P-20P
Cutting length	30-1000mm; Flat cable 60-1000mm
Stripping length	1.0-10mm
Single line width	0.6-2.5mm
Line split	27-35mm
Max. Wire Pins	20P
Crimping force	2.0T
Productivity	5000-6000pcs/hour(L=100mm); 900pcs/hour(10P, 100mm)
Air pressure	0.5-0.7Mpa
Power supply	220V/110V/50HZ/60HZ
CFM	Optional
Weight	550Kg
Dimension	188010001550mm

Features of EW-8080 Fully Automatic Flat Ribborn Wire Crimp/Solder Machine(Double Head)



English LCD Screen

Full automatic LCD screen; Easy operation; Convenient adjustment(English-Chinese language)

01


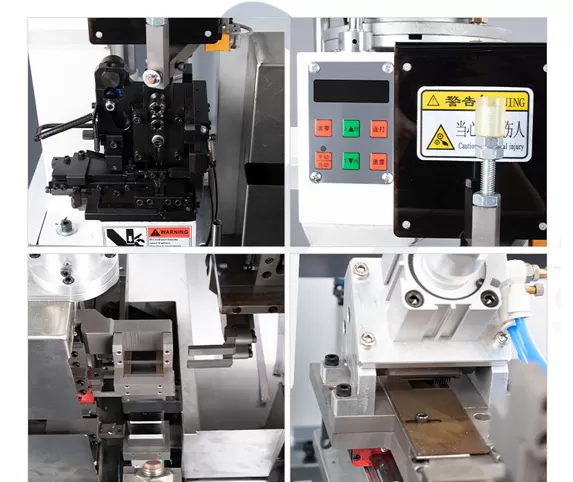

Applicator/Mold

Quick and easy for applicator change; Precision wire cutting stripping and crimping; high efficiency, stable performance.

02
