Name: EW-8135
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8135

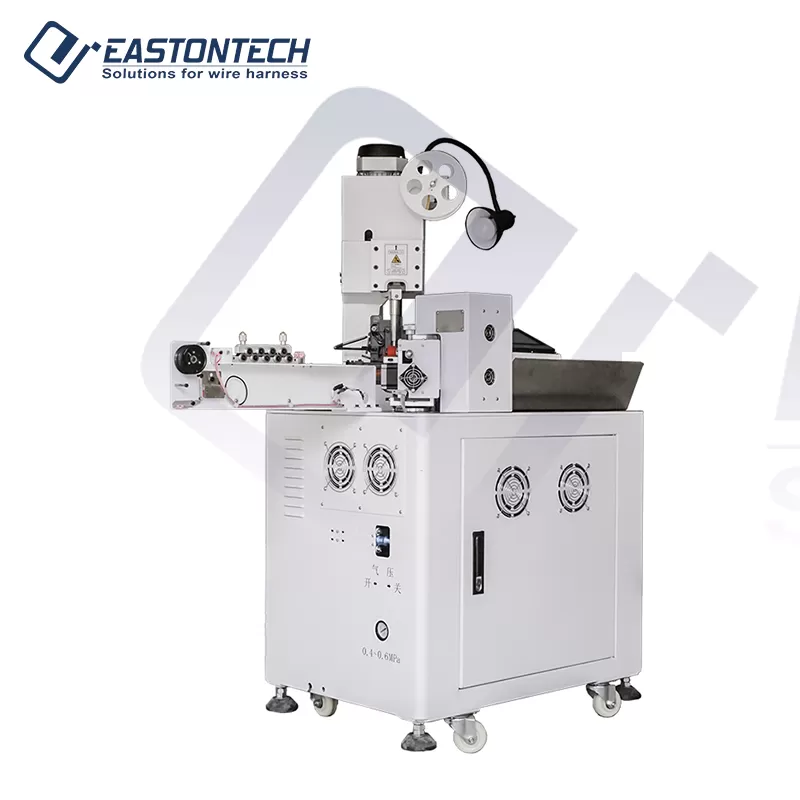

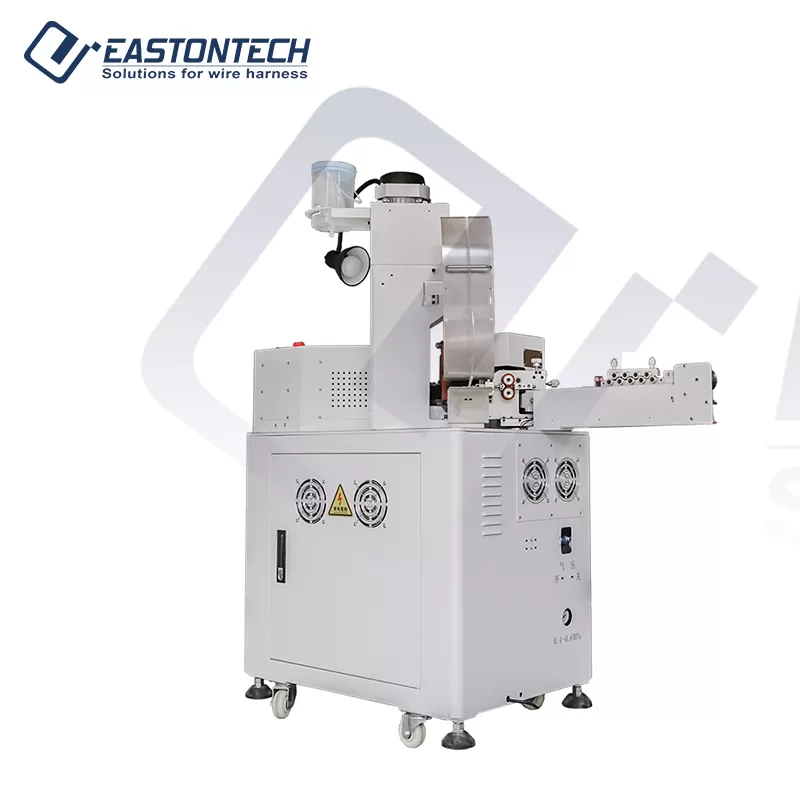

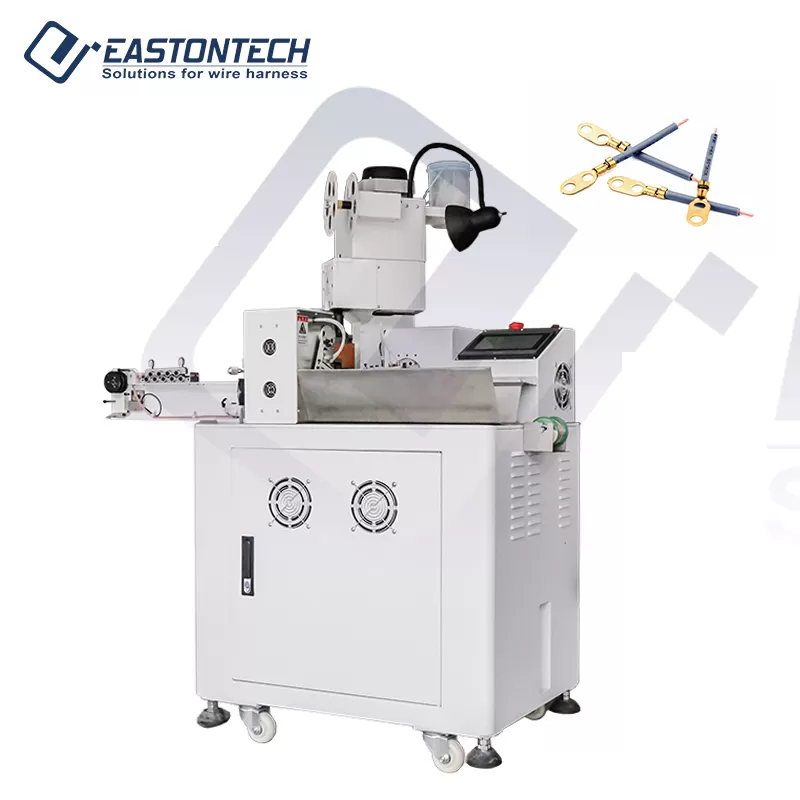

The fully automatic wire crimping and soldering machine is especially designed for processing 2 pins cable, it can also process singlewire.

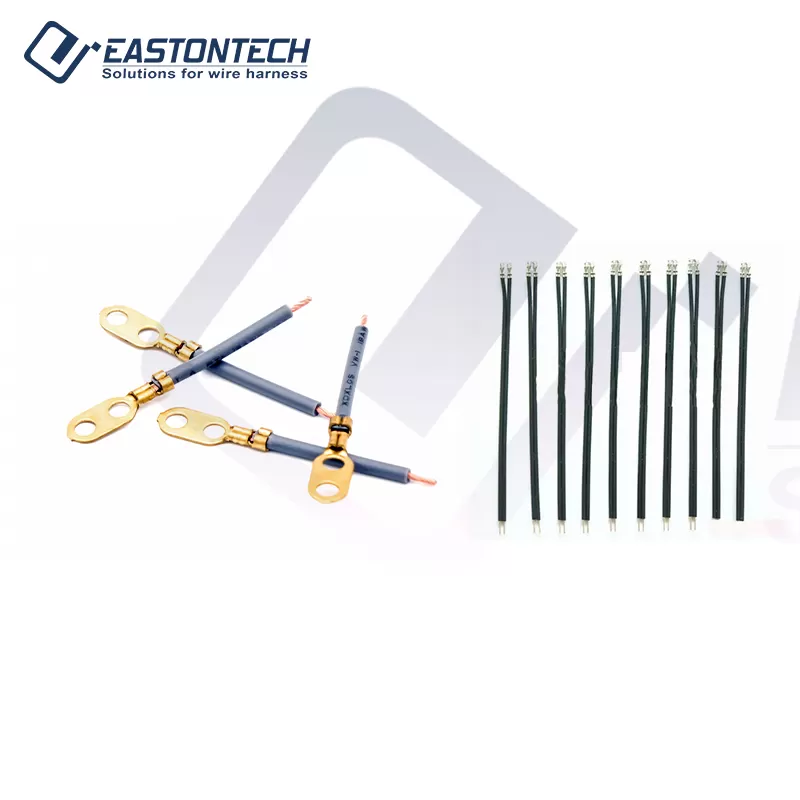

The system integrates multiple functions in one compact unit, including wire cutting, wire splitting, stripping, wire twisting, tinning, and terminal crimping, enabling automated processing where one end receives terminal crimping while the other end is tinned and soldered.

All functions can be independently enabled or disabled through program settings providing exceptional flexibility.

Specifications of EW-8135

Model	EW-8135 (Single wire)	EW-8135-1 (Double wire)	EW-8135-2 (Twin wire)
Applicable wire range	AWG10-AWG18	AWG20-AWG30	AWG18-AWG30
Stripping length	0.5-20mm
Cut precision	±(1+0.002*L) mm (L=100mm)
Cutting length	26-9900mm(20mm can be customized)
Twisting length	2-20mm
Tinning length	0.5-20mm
Capacity	2100pcs/hour(L=100)
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	0.4-0.6Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension	7208501650mm
Weight	265Kg
Power supply	220V/110V/50HZ/60HZ

Features of EW-8135



01

One crimp terminal and one twisted wire greatly, improve work efficiency.

01


02

Energey efficient, compact, stable and convinient, easy to operate and maintain.

02


03

Modular design, can be combined with a variety of accessories on demand extending the practically of the product.

03


04

Automatic Tin Dip

04
