Name: EW-8150
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

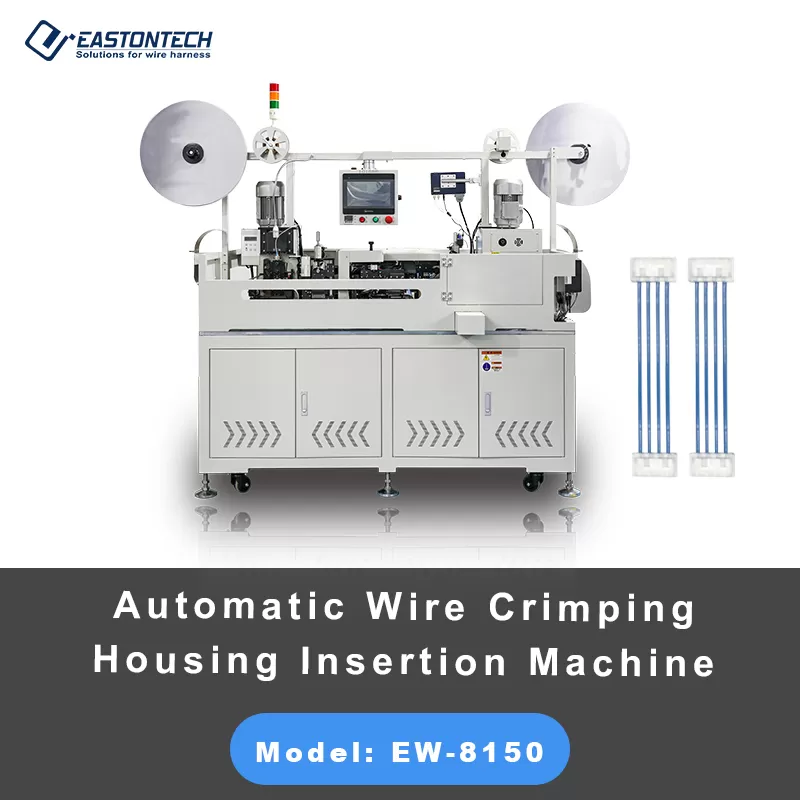

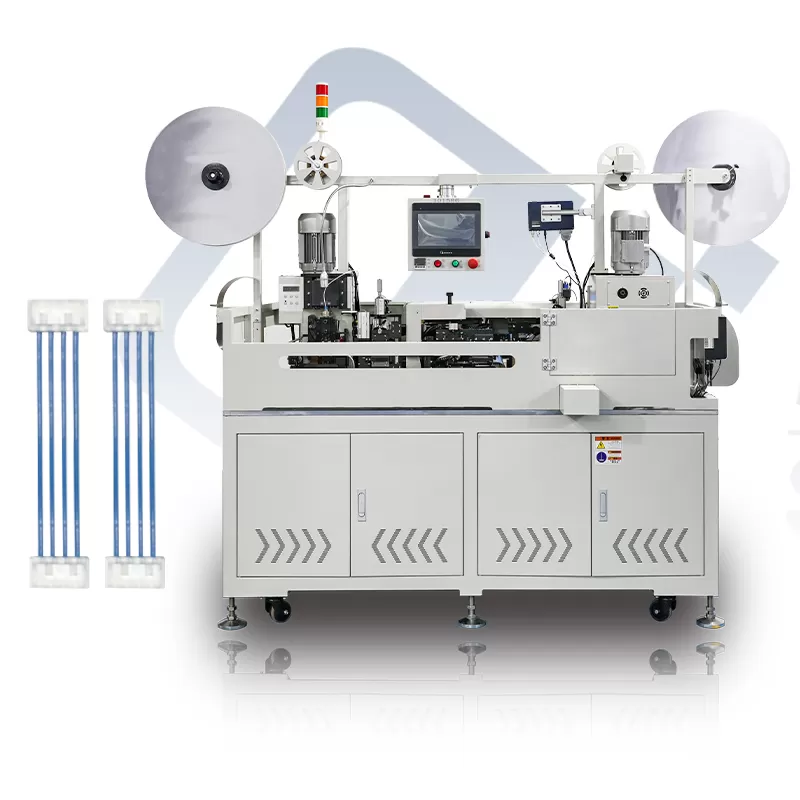

EW-8150

This comprehensive wire processing system integrates solder tinning, terminal crimping, and connector housing insertion into a single automated platform, significantly improving production efficiency and reducing factory footprint for wire harness manufacturing. The machine streamlines complex workflows by replacing multiple standalone machines with one coordinated processing line.

The equipment supports flexible operation modes including dual-head crimping combined with dual-head housing insertion, or mixed-mode operation where one head performs crimping and housing insertion while the other handles wire twisting and tinning. A customizable pair-twisting function enables secure formation of twisted wire pairs for specific harness designs when required.



Specifications

Model	EW-8150
Applicable wire range	AWG28-AWG18
Stripping /Tinning length	Front:0-5mm, Rear:0-10mm
Cut precision	±(0.1+0.01*L) mm, L=cut length
Cutting length	45-1000mm
Capacity	300-380pcs/hour (L=110mm)
Crimping force	2.0T
Stroke	30mm or 40mm strokes for optional
Air pressure	0.6-0.8Mpa
Housing type	1.25/1.5/2.0/2.5/3.96（mm)
P number of shell processing	2P-12P(Flat cable) 2P-20P(Electronic wire)
Detection	Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error
Rated Current	45A
Power	220V/110V/50/60HZ
Dimension	2183x2350x1800mm
Weight	1100Kg

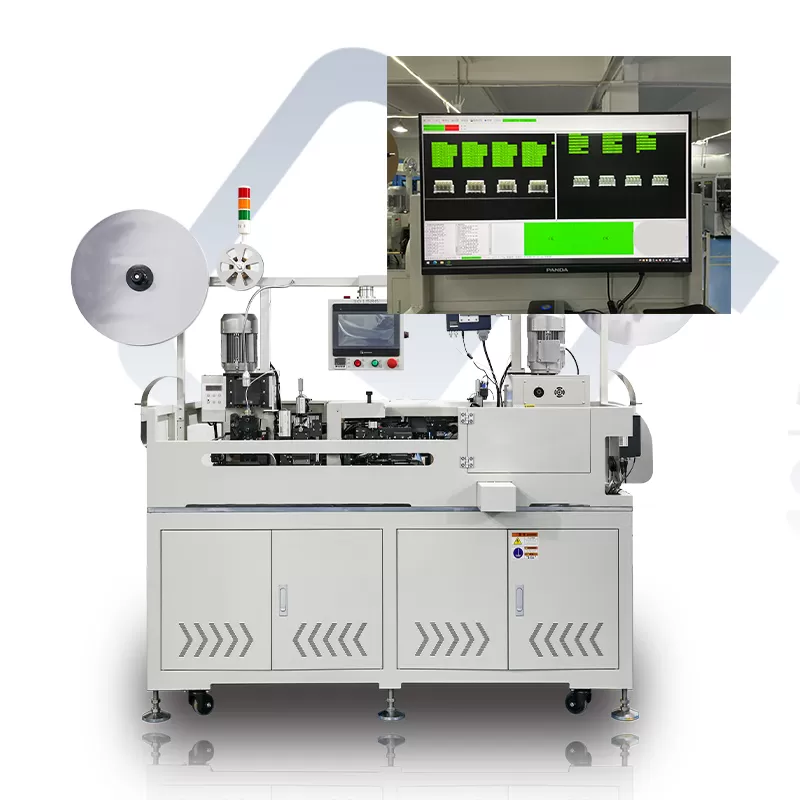

Options	CCD visual Inspection; CFM

Features



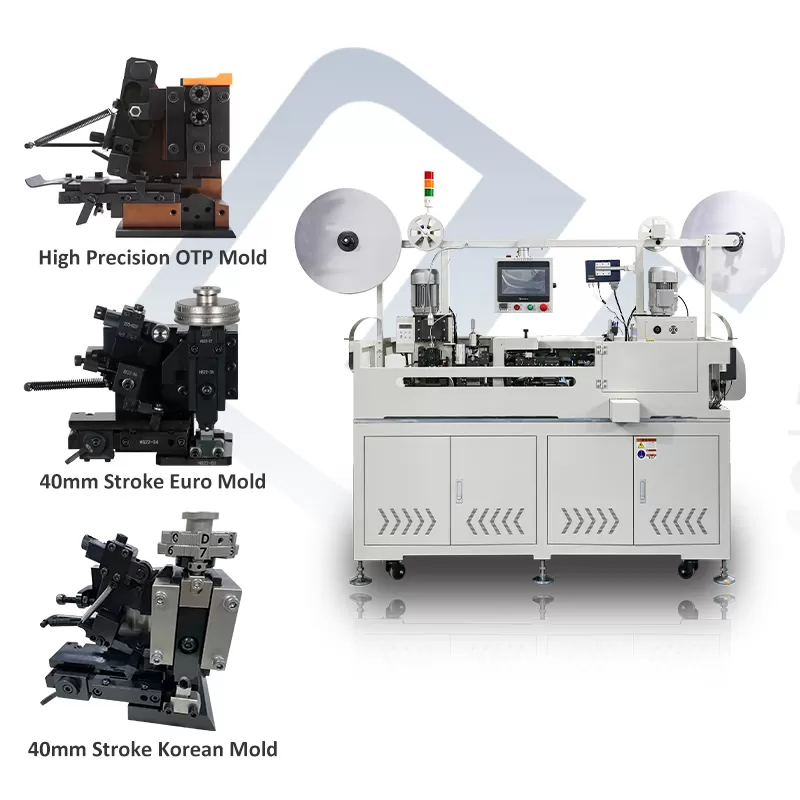

Applicator/mold

Quick and easy for applicator change.Precision wire cutting stripping and crimping,Full servo screw,high precision,improve efficiency, stable performance.

01


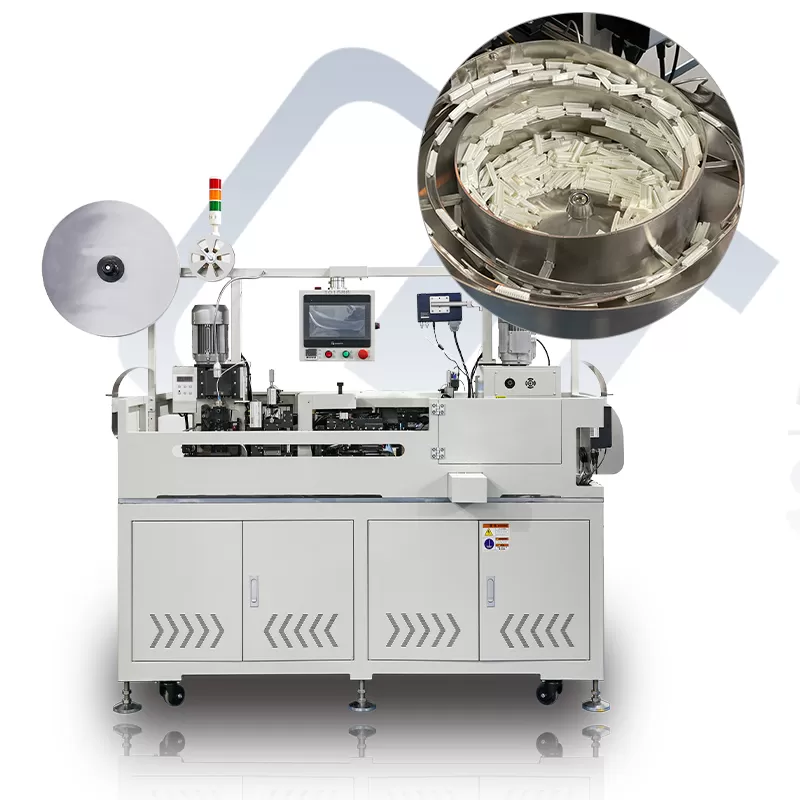

Automatic Feeding Tray

Neat discharge,no jamming,save labor.

02
