Name: EW-8155 Fully Automatic Double-Head Crimp and Insert Number Tube Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

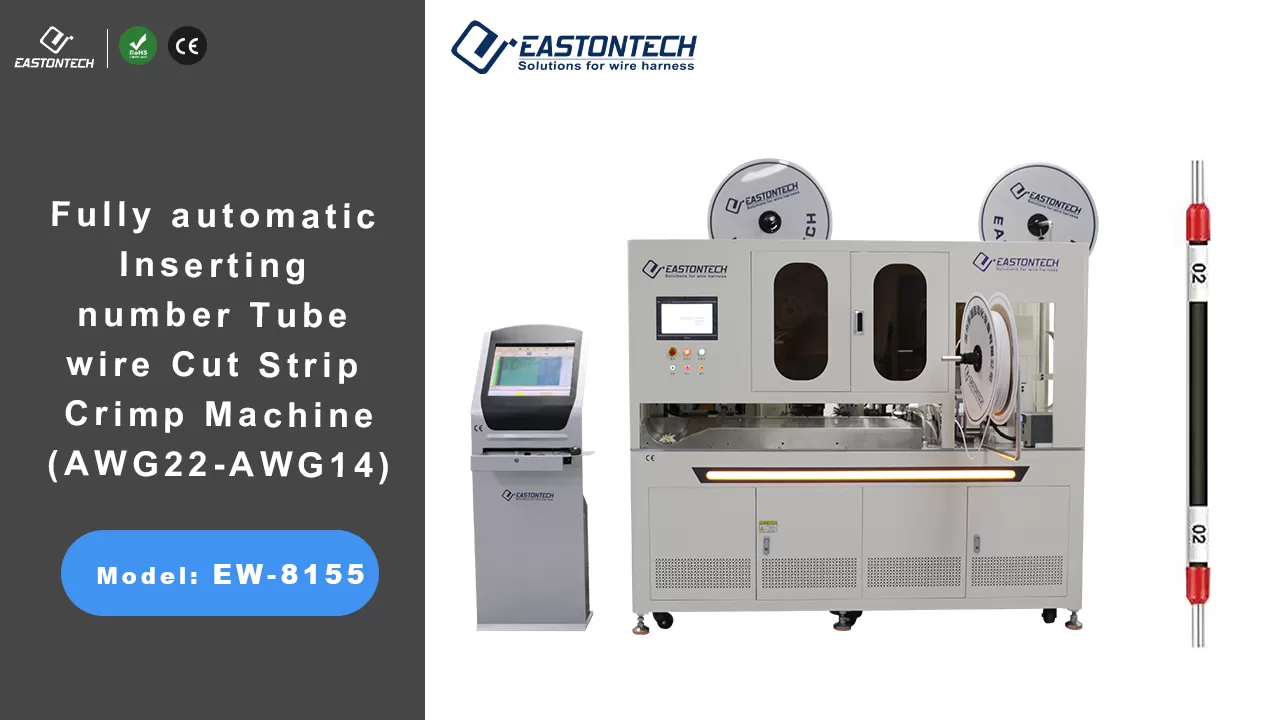

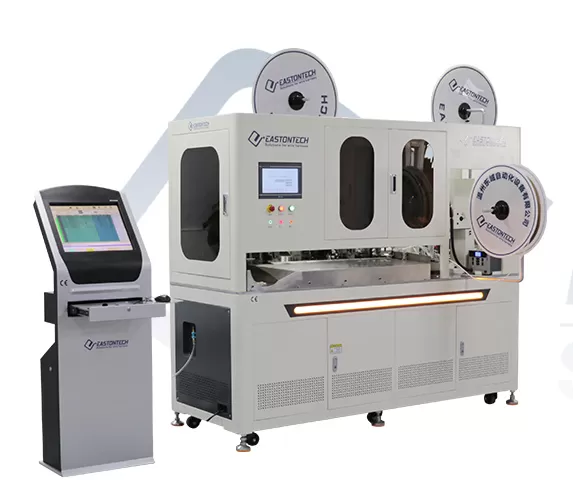

EW-8155 Fully Automatic Double-Head Crimp and Insert Number Tube Machine

The EW-8155 is an energy-efficient, space-saving wire processing solution engineered for precision cutting, stripping, and terminal crimping. Combining Taiwanese/Japanese core components with a bilingual touchscreen interface, it delivers stable performance for cross-feed and direct-feed OTP terminal molds. Equipped with a four-wheel synchronous wire feeder for constant tension control, an automatic terminal tape cutter, and a unique 360° heat shrink tubing oven, it streamlines production while minimizing operational footprint. Ideal for compact manufacturing environments requiring reliable, eco-friendly automation.

ew-8155 fully automatic double-head crimp and insert number tube machine china

ew-8155 fully automatic double-head crimp and insert number tube machine price

ew-8155 fully automatic double-head crimp and insert number tube machine cost

ew-8155 fully automatic double-head crimp and insert number tube machine buy



Specifications of EW-8155 Fully Automatic Double-Head Crimp and Insert Number Tube Machine

Model	EW-8155
Applicable wire range	AWG22-AWG14
Stripping length	Front:0.5-8mm, Rear:0.1-10mm
Cut precision	±(0.2+0.002*L) mm, L=cut length
Cutting length	66-99999mm
Capacity	700-900pcs/hour (L=80-150mm)
Crimping force	2.0T
Stroke	30mm or 40mm strokes for optional
Air pressure	0.6-0.8Mpa
Cutting depth	maximum adjustment 5.50mm, resolution 0.01mm
Dimension	800x1800x1800mm
Weight	800Kg
Options	CCD visual Inspection; CFM

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Solid Wire

Kapton

Discrete Wire

Multiconductor Cable

Teflon®

Stranded Wire

Textile glass braiding

Tefzel®

PUR

PVC

Processing Capabilities

Full Strip

Discrete Wire Crimping

Crimp to Crimp

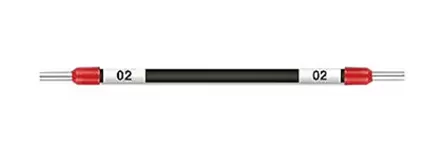

Waterproof plug sheathed wire for number tube

Features of EW-8155 Fully Automatic Double-Head Crimp and Insert Number Tube Machine



Precision Wire Handling & Tension Control

Four-wheel synchronous wire feeder maintains constant tension during processing, which is critical for achieving consistent results in the subsequent crimp and seal operation.
Automatic terminal tape cutting ensures seamless material flow and reduces manual intervention.

01


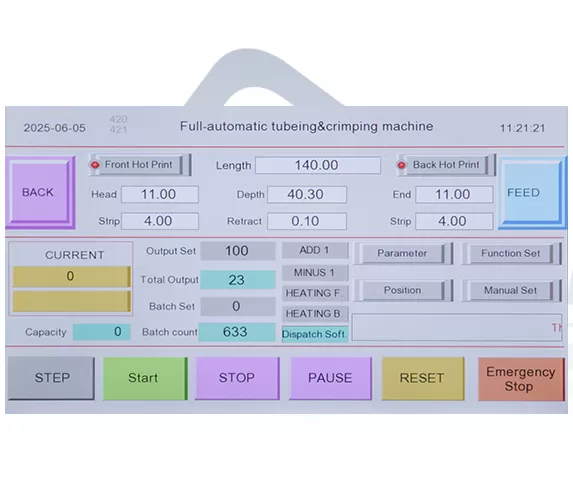

Intuitive Bilingual Operation

Chinese/English touchscreen interface for quick parameter adjustments and user-friendly control.
Motion control card enables short setup times and simplified workflow management.

02


360° Heat Shrink Tubing System

Dedicated ring baking oven ensures even, rapid heating for uniform tubing shrinkage.
Optimizes sealing processes for waterproof or insulated terminals.

03


Versatile Mold Compatibility & Eco-Design

Supports horizontal, straight, and flag-type terminal molds for diverse applications.
Energy-efficient architecture reduces power consumption and physical footprint without compromising performance.

04
