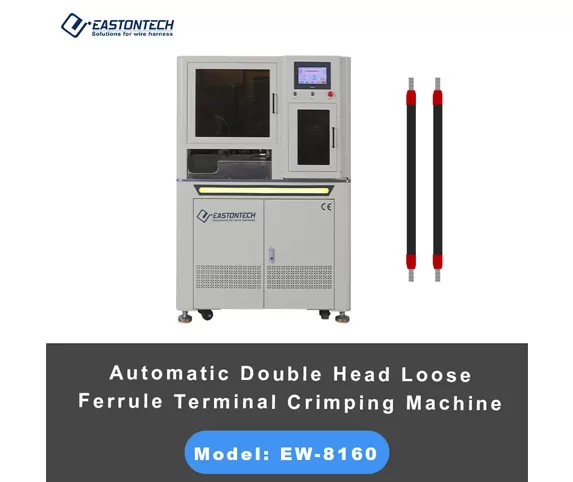

EW-8160 Automatic Double Head Loose Ferrule Terminal Crimping Machine

This automatic terminal crimping machine is specifically designed for high-efficiency processing of various closeed barrel bulk terminals, including pre-insulated terminals, ferrule terminals, and other standard terminal types. The machine integrates wire cutting, stripping, twisting, and terminal crimping operationis into a single automated platform, effectively functioning as an automatic ferrule crimping tool. This design significantly reduces handling time and ensures consistent quality output.

Equipped with a vibrating plate terminal feeding system, this machine automatically supplies terminals to the crimping station while simultaneously processing wire ends with precision. The wire inlet features three sets of straighteners that automatically align incoming wire, improving operational stability and feeding accuracy through mutiple roller sets that prevent wire slippage.



Specifications of EW-8160 Automatic Double Head Loose Ferrule Terminal Crimping Machine

Model	EW-8160
Applicable wire range	AWG26-AWG14
Stripping/Twisting length	0-15mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	40-9999mm
Capacity	1000-1300pcs/hour
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	0.6-0.8Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Display language	Chinese/English
Dimension	11507501600mm
Weight	358Kg
Power cord plug	European, USA, Chinese plug

Features of EW-8160 Automatic Double Head Loose Ferrule Terminal Crimping Machine



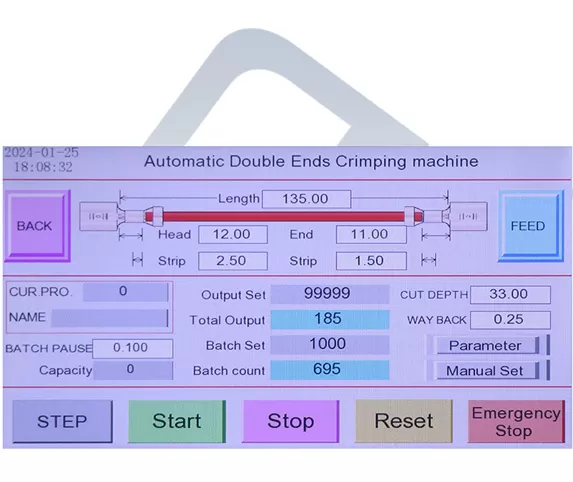

LCD Touch Screen

Touch screen can be replace in to with English version.

01


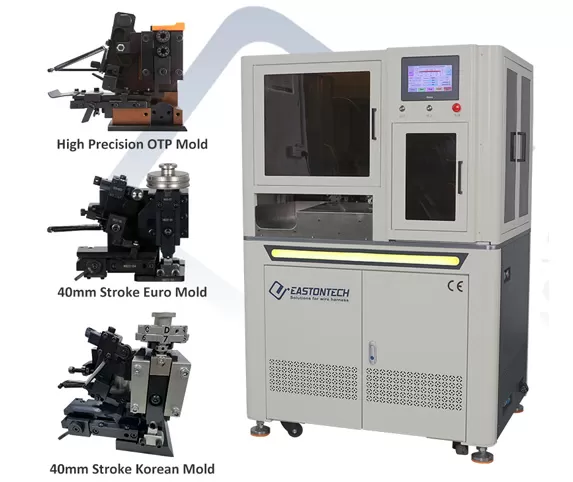

High Precision Mould

High-precision molds make processing more stable and increase production speed.

02


Feeding Wheel

Imported aluminum knurled hardtreatment, good abrasion resistance, no damage to the wire skin, high wire delivery accuracy, guaranteed size, not easy to slip and fall off.

03


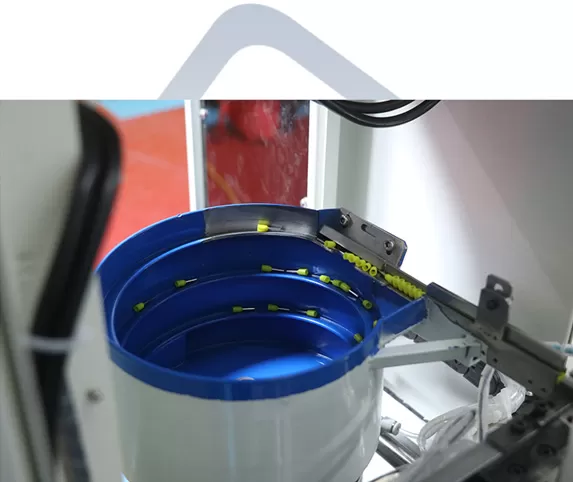

Viberation Feeding Plate

It is customized for insulated loose terminals, and the viberation feeding plate is customized according to the terminal samples.

04
