Name: EW-8195
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8195

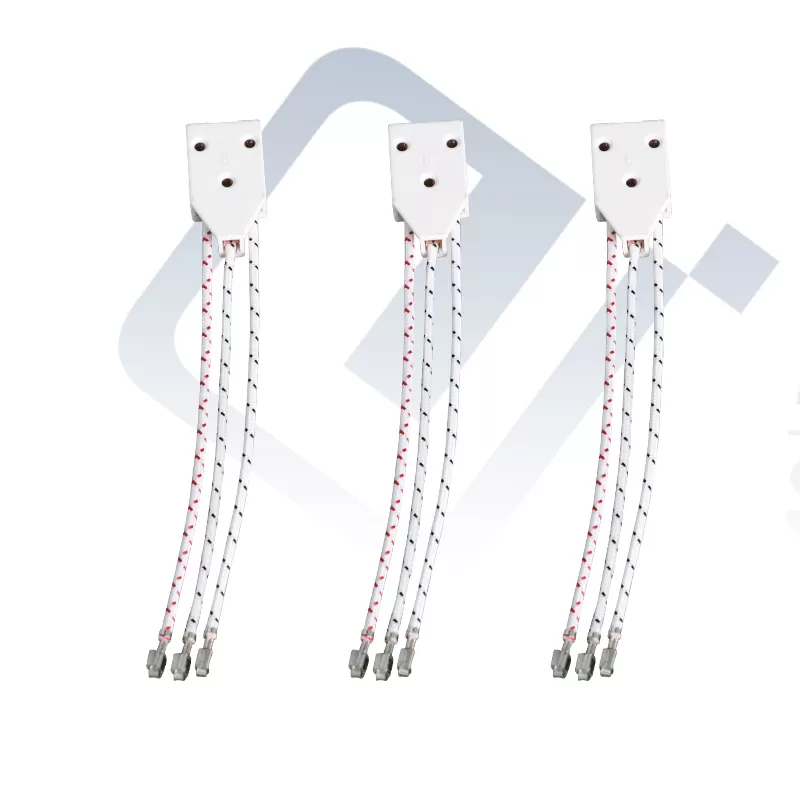

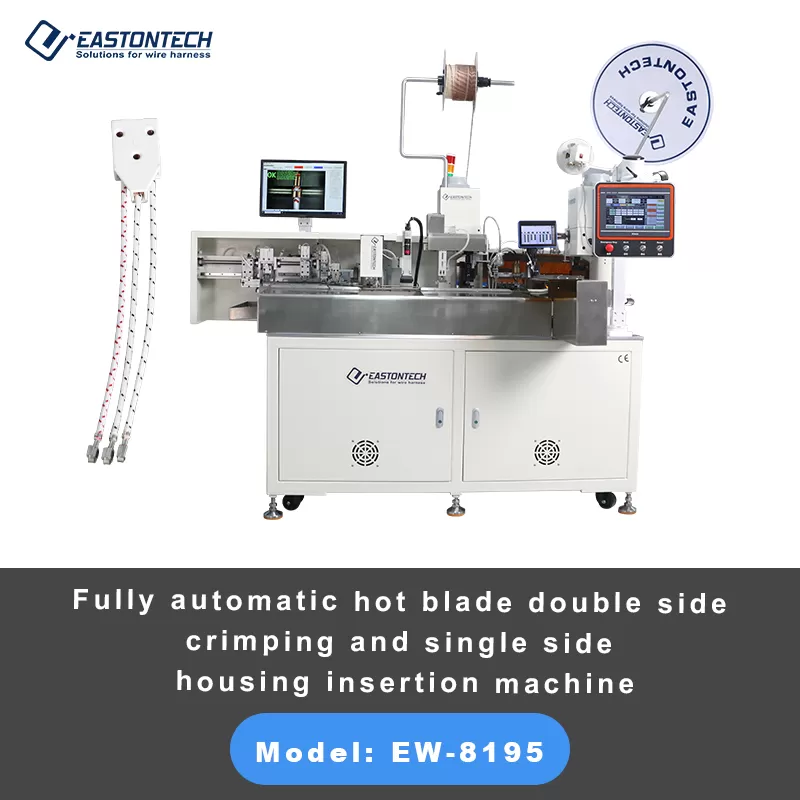

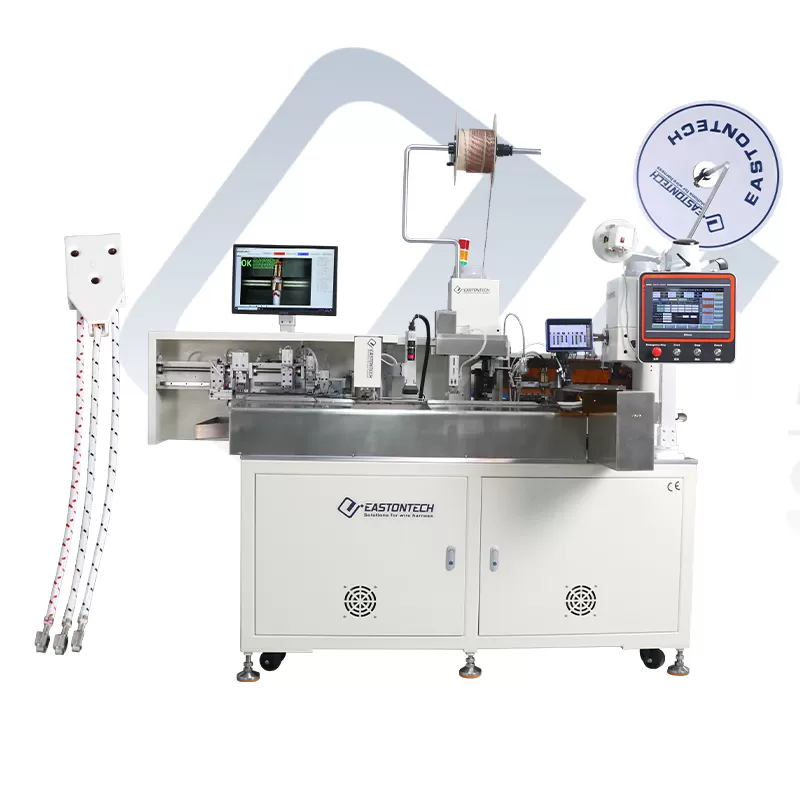

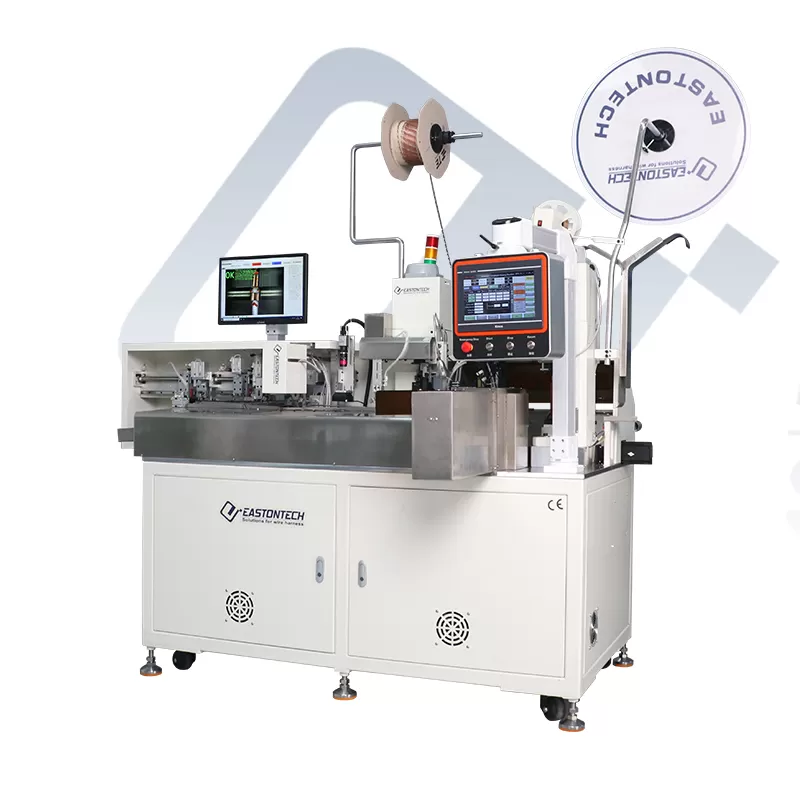

This automatic wire hot stripping and crimping machine is specifically engineered for high-precision processing of braided wires used in refrigeration compressors. lt performs a complete one-side operation, combining wire stripping and terminal crimping in a single automated process to improve efficiency and reduce manual intervention.

Designed with a modular, fexible architecture, functional modules can be enabled or disabled for different production needs. Product changes reguire only replacement of the relevant crimp dies, vibraing-plate feeders and insertion jigs, minimizing downtime and reducing idle waste.



Specifications

Model	EW-8195
Applicable wire range	0.5-0.75mm2(AWG18-20)
Stripping length	1-16mm
Cut precision	±0.1 mm
Cutting length	50-500mm
Capacity	400-450pcs/hour
Crimping force	2.0T
Stroke	30mm
Air pressure	0.5-0.7Mpa
Wire color	1-3color wires(must be the same specification）
Room Moisture	30%-80%RH
Detection	Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error
Power	220V/110V/50/60HZ
Operating temperature range	15℃ — 30℃
Dimension	156011001600mm
Weight	700Kg
Foot pedal start	N/A

Features



Applicator/mold

Quick and easy for applicator change.

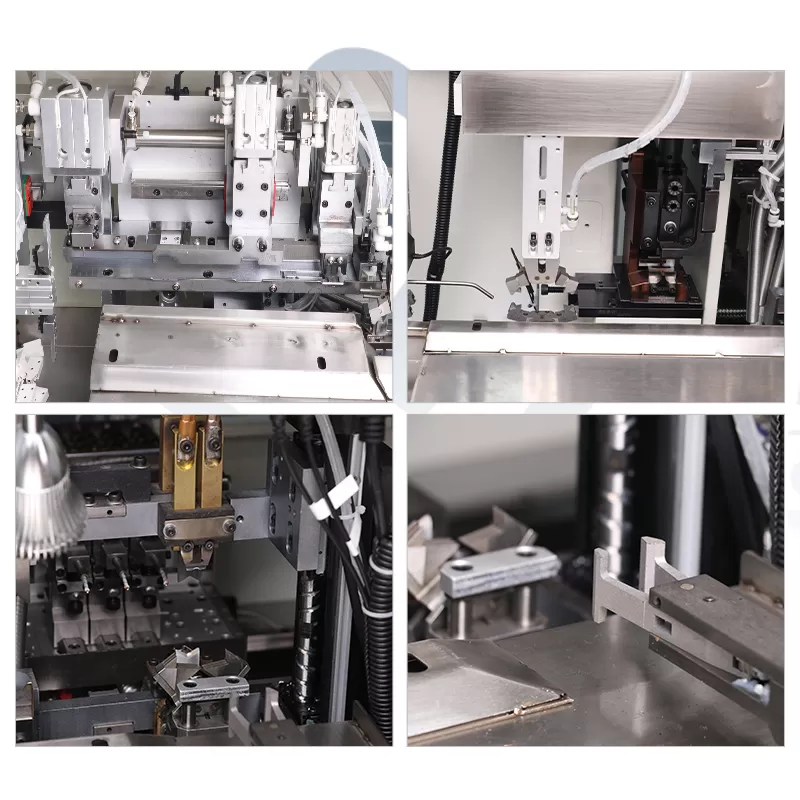

Precision wire cutting stripping and crimpingFull servo screw,high precision,improveefficiency,stable performance.

01


Automatic Feeding Tray

Neat discharge, no jamming,save labor.

02


2m Conveyor

Machine work with conveyor suit for longwire length

03


Crimp force monitor

Check whether the terminal is crimped andthe rubber shell is properly pierced

04
