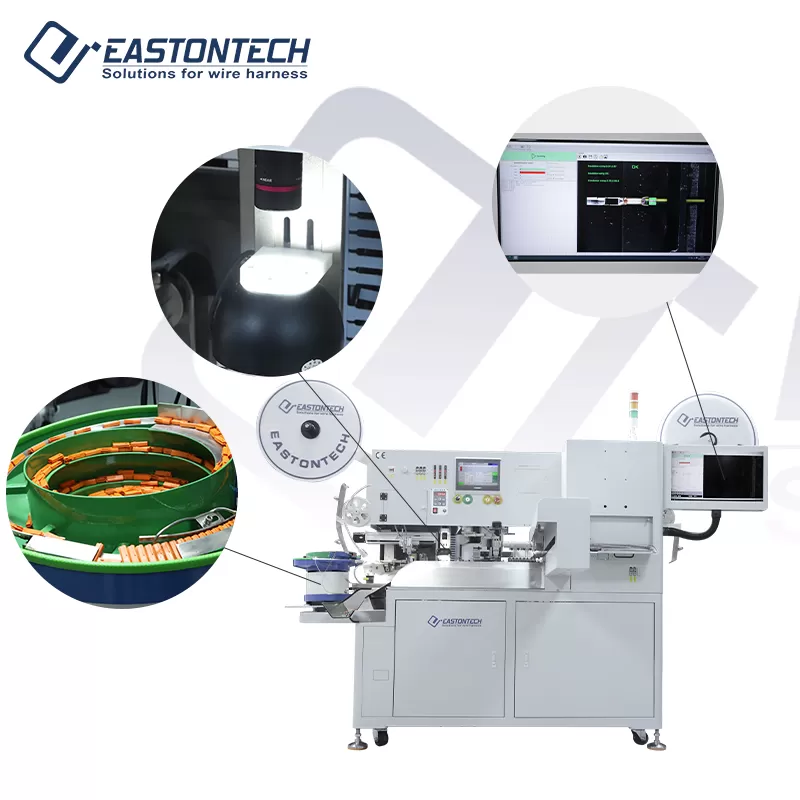

EW-8220

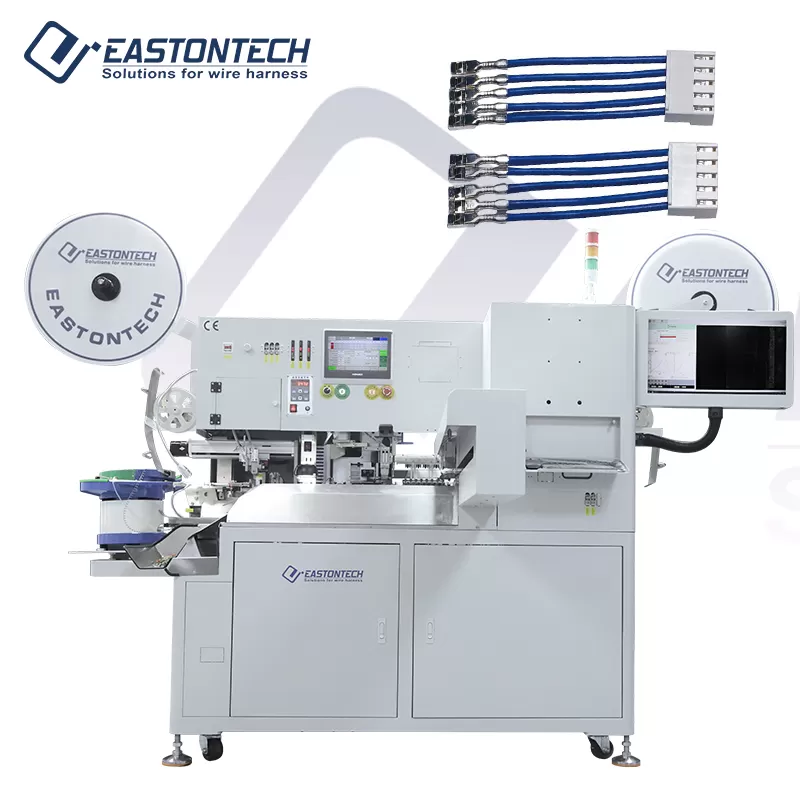

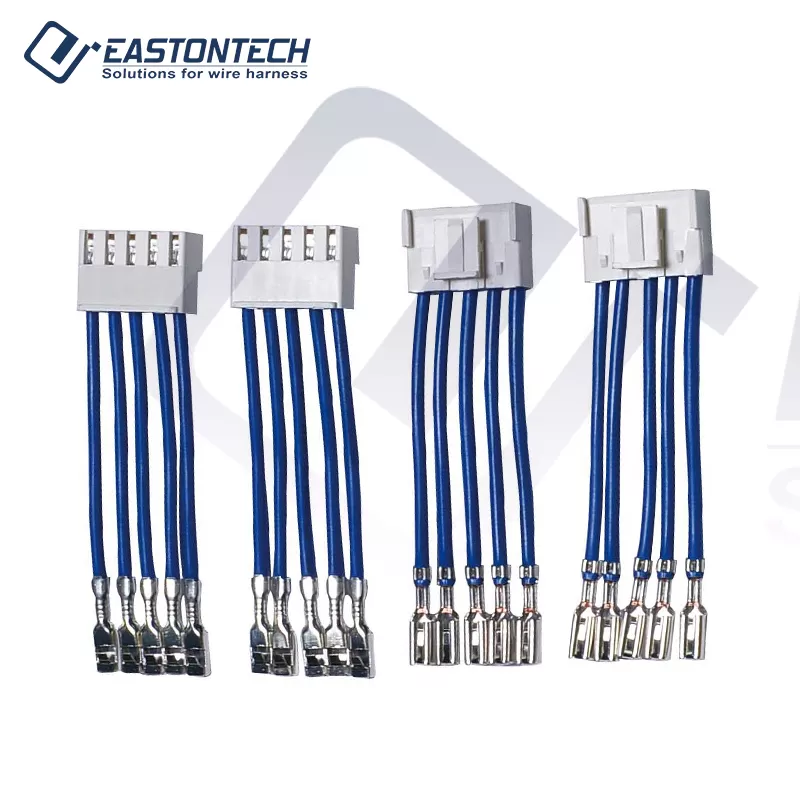

This fully automatic dual-head crimping and single-head housing insertion system integrates wire cutting, stripping, dual-end terminal crimping and automatic insertion of one end into connector housings fed by a vibrating plate. The system supports optional ultrasonic welding for specific housings.

Designed with a modular, flexilble architecture, functional modules can be enabled or disabled for diferent production needs. Product changes require only replacement ot the relevant crimp dies, vibrating-plate feeders and insertion ligs, minimizing downtime and reducing idle waste.



Specifications of EW-8220

Model	EW-8220
Function	Front end: wire cutting, stripping, crimping Back end: wire cutting, stripping, crimping, CCD detection and insertion
Applicable wire range	AWG30-AWG18(The replacement range ≤ 5 specifications)
Wire processing length	35-600mm
Stripping length	A end: 0.1-6.0mm B end: 0.1-10.0mm
Cutting accuracy	0.5mm+cutting length*0.2%

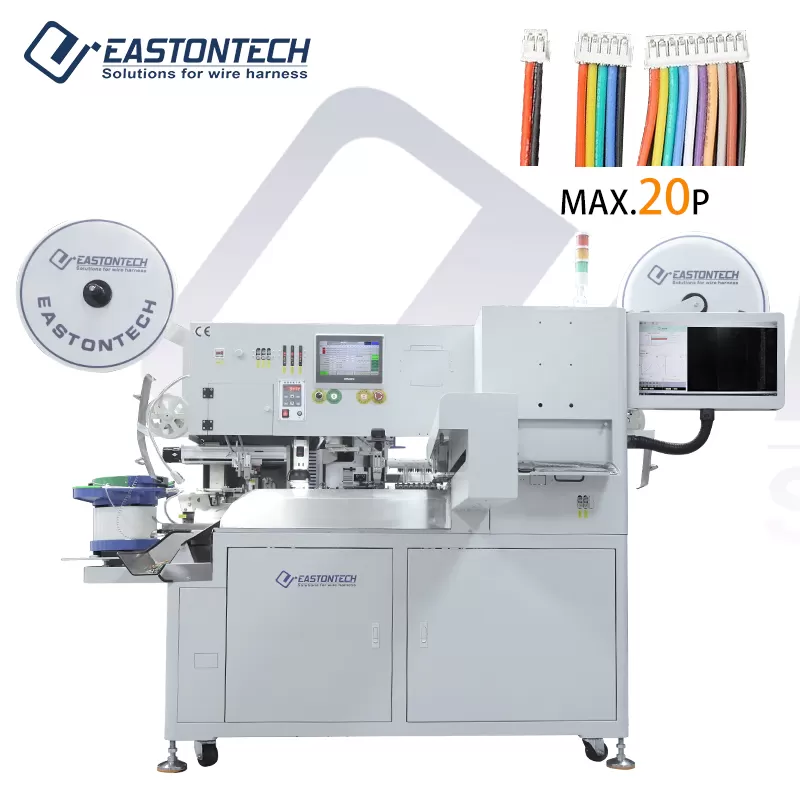

Maximum number of PINs	20 holes per row, maximum 3 rows
Maximum number of PIN colors	8 colors (more colors can be customized)
Shell size	MAX:402520 MIN:563 Spacing 1.5-4.2mm
Maximum operating speed	Double-strike single-threading efficiency 2.4 seconds/wire (specific production capacity may fluctuate and decrease depending on materials and requirements)
Capacity	2000pcs wire insertion /h. 2 Pin=1000 pcs. 3 pin=650pcs/h
Basic detection functions	Whether there are wires, wire knots, terminals, terminal pressure monitoring, terminal insertion and pulling detection (control the pulling force of the terminals and connectors through digital high-precision air valves), whether there are rubber seats, defect rate setting
Standard components	8-axis reel-loading universal wire feeding machine
Stroke	30mm/40mm
Air pressure	0.4-0.6Mpa
Maximum Power	4800W
Normal operation failure rate of the whole machine	5‰(Calculated based on a single electronic wire)
Crimping force	2.0T (Customizable)
Power supply	220V/110V 50HZ/60HZ
Packaging Machine Weight	700KGS
Packaging Machine Dimension	2350L1300W1700H mm
Packaging Pay-off rack Dimension	190KGS
Packaging Pay-off rack Weight	1900L1250W1100H mm
Pedal	N/A

Features of EW-8220



Applicator/Mold

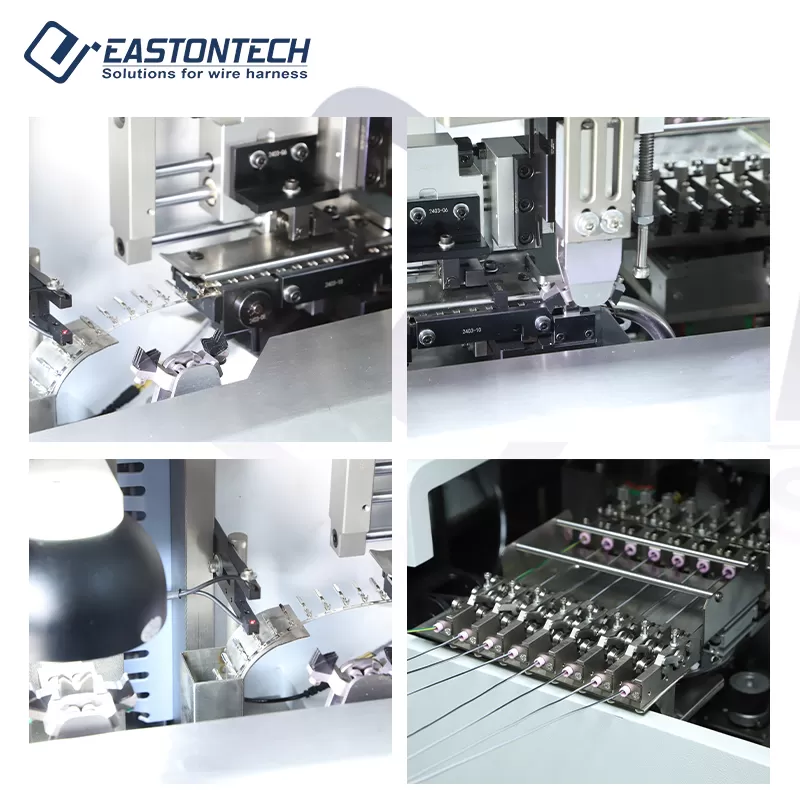

Quick and easy for applicator change. Precision wire cutting stripping and crimping, Full servo screw,high precision, improveefficiency, stable performance.

01


Automatic Feeding Tray

Neat discharge, no jamming,save labor.

02


2m Conveyor

Machine work with conveyor suit for long wire length.

03


Crimp Force Monitor

Check whether the terminal is crimped andthe rubber shell is properly pierced.

04
