EW-8285+P

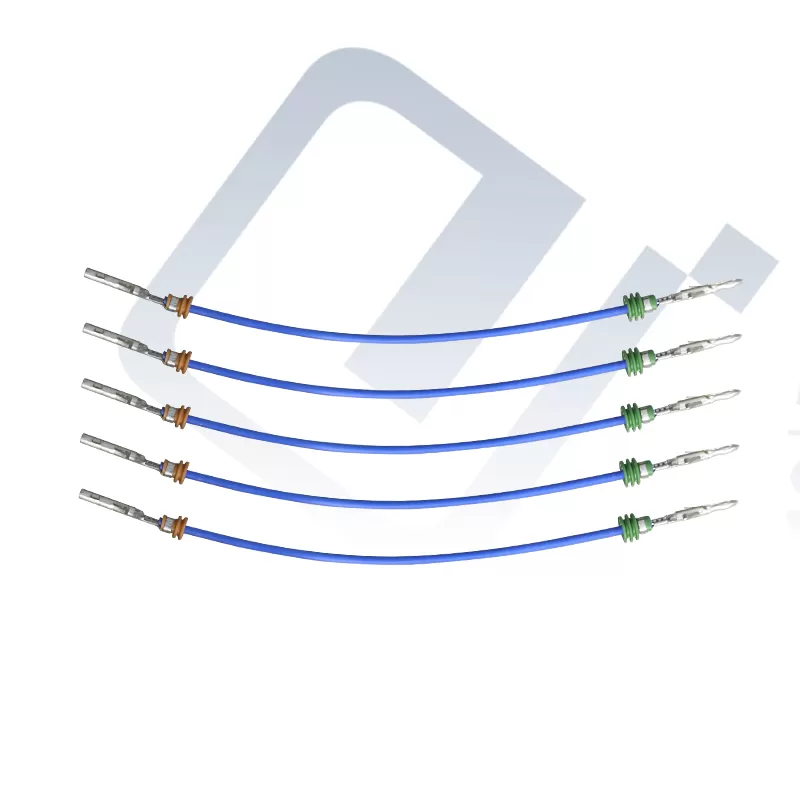

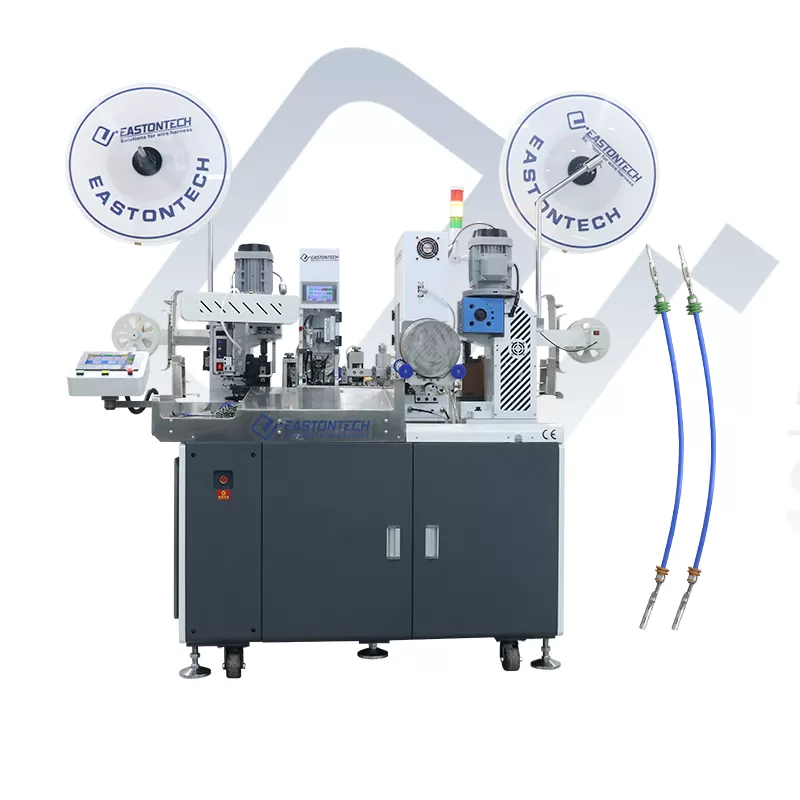

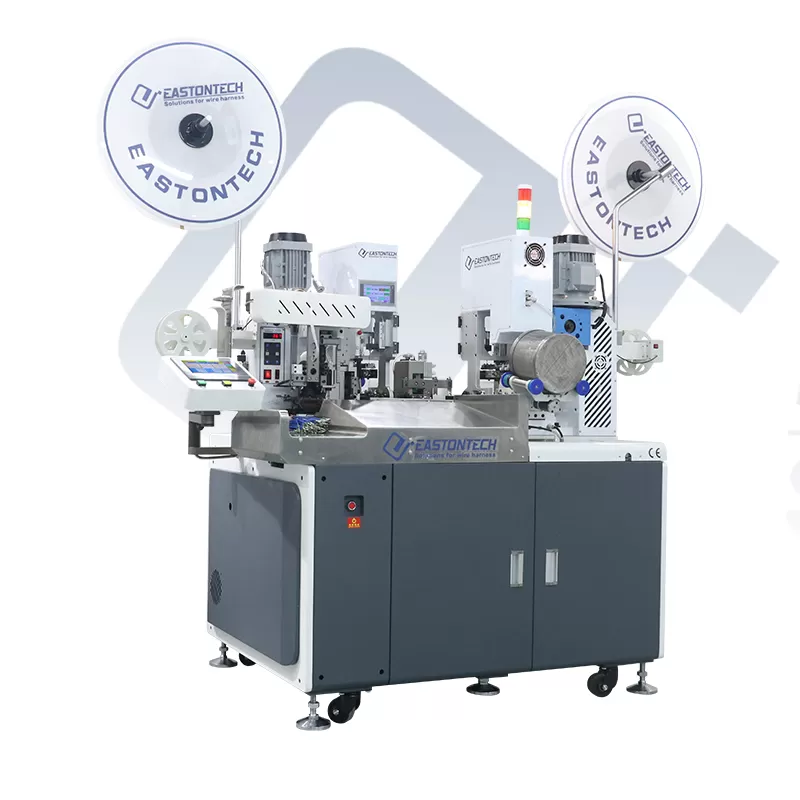

This fully automatic dual-end wire sealing and crimping machine integrates comprehensive wire processing functions including cutting, stripping, printing, waterproof seal insertion, and terminal crimping. The advanced automatic feeding system ensures consistent waterproof seal placement.

Engineered with precision servo motor technology, all critical mechanisms including wire feeding, stripping, positioning, and crimping operations deliver exceptional accuracy and repeatability. The integrated servo-driven crimping system features a ductile iron construction for superior rigidity and consistent crimping height control, ensuring reliable electrical connections across all production runs.



Specifications

Model	EW-8285+P
Applicable wire range	AWG28-AWG18
Stripping length	Head:0-18mm,Tail:0-20mm
Cut precision	±0.1（0.1＋0.003*L）mm, L=cut length
Cutting length	45-9999mm
Capacity	1300-1800pcs/hour
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	0.4-0.6Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ

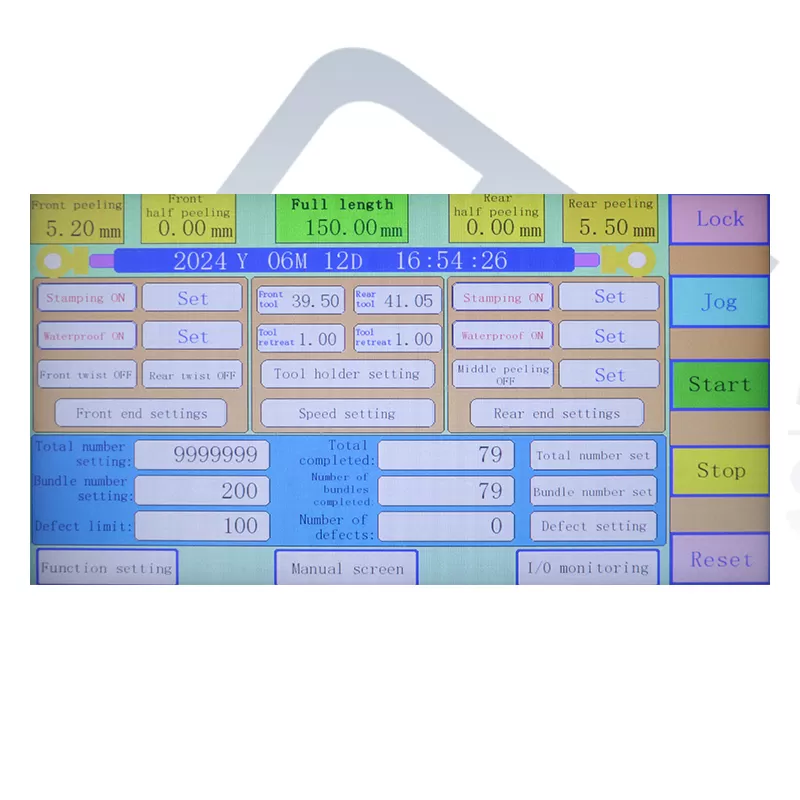

Display language	Chinese/English
Dimension	17009201580mm
Weight	600Kg
Power cord plug	European, USA, Chinese plug

Features



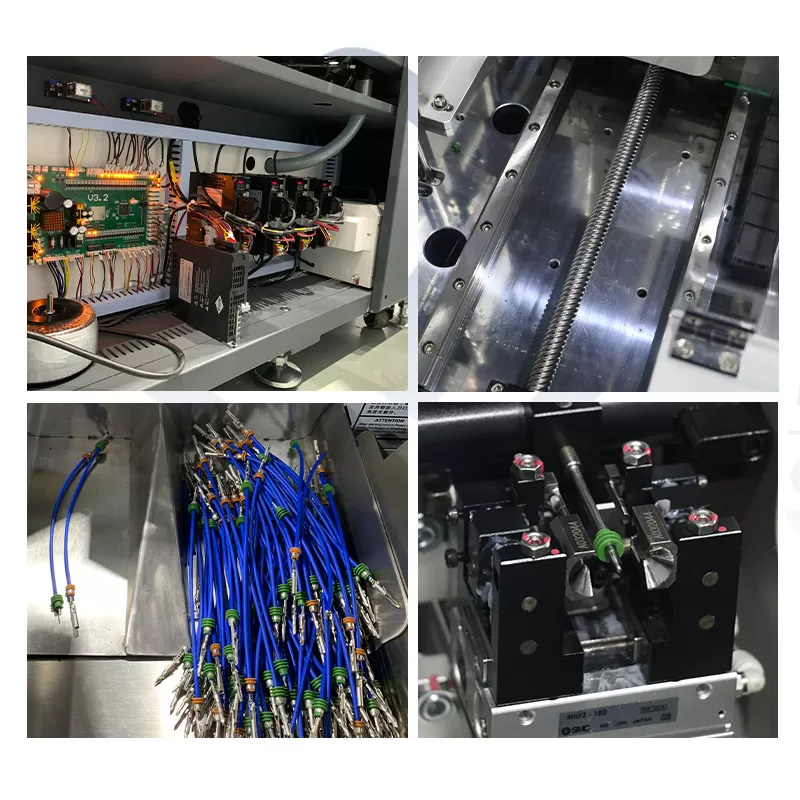

Driven by screw rod

Driven by screw rod, with servo motor,precise movement and fast speed

01


Insert waterproof plug first and then strip

Fast running speed.
Nodamage to copper wire.

02
