EW-8290

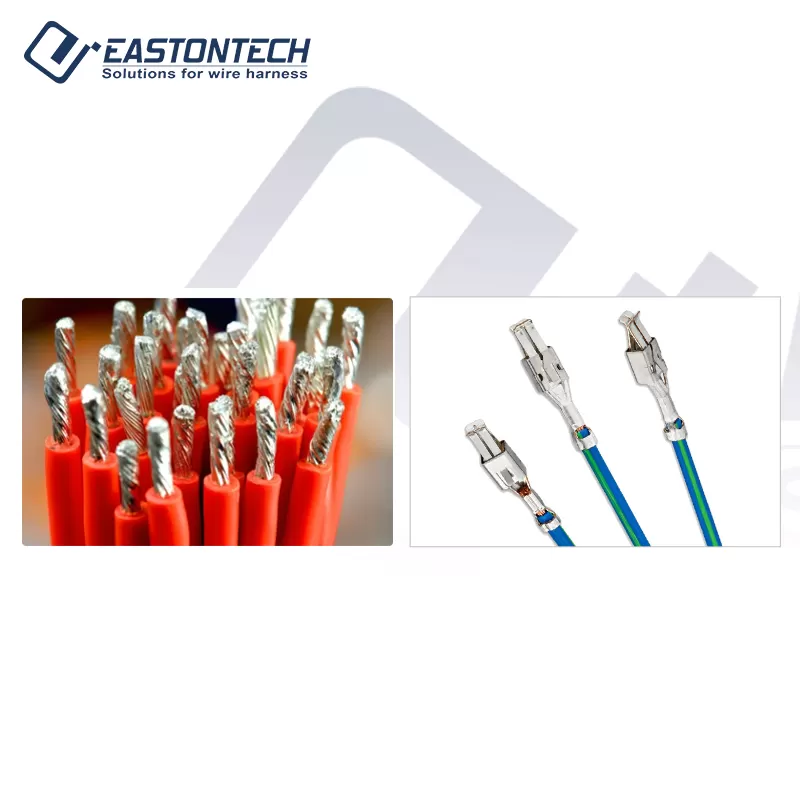

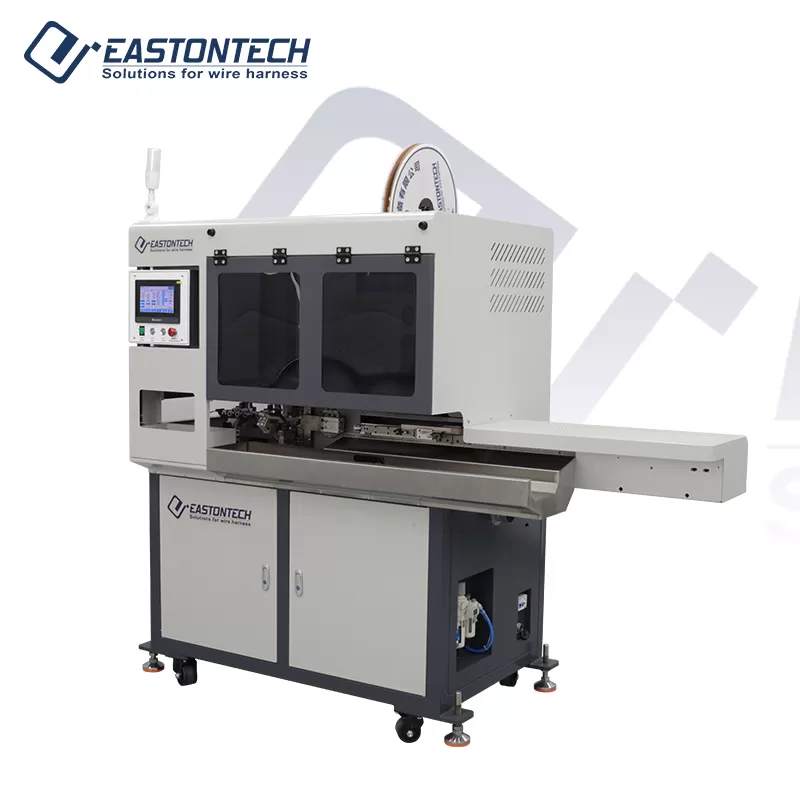

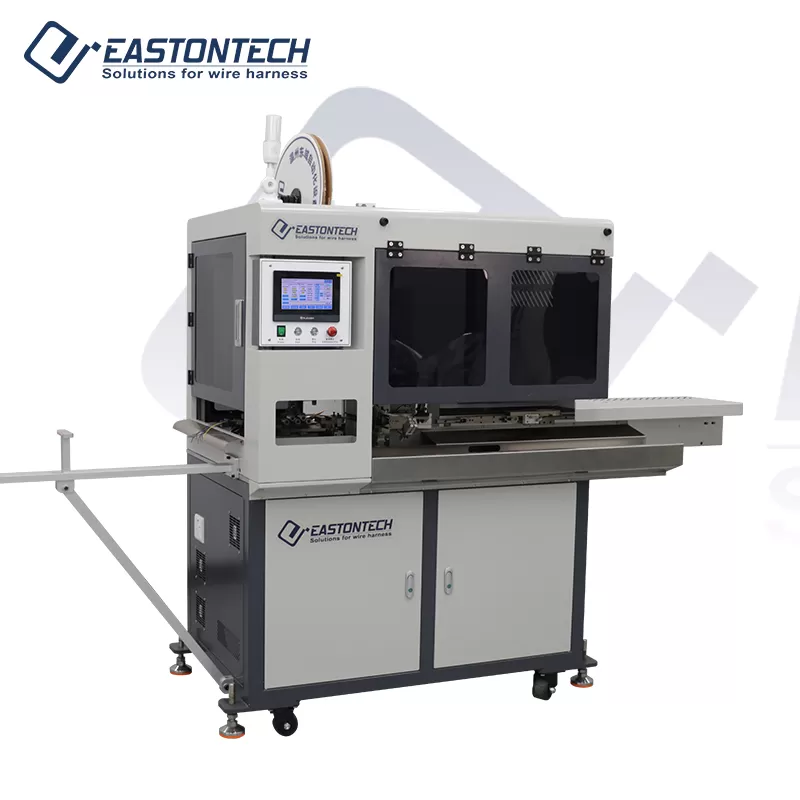

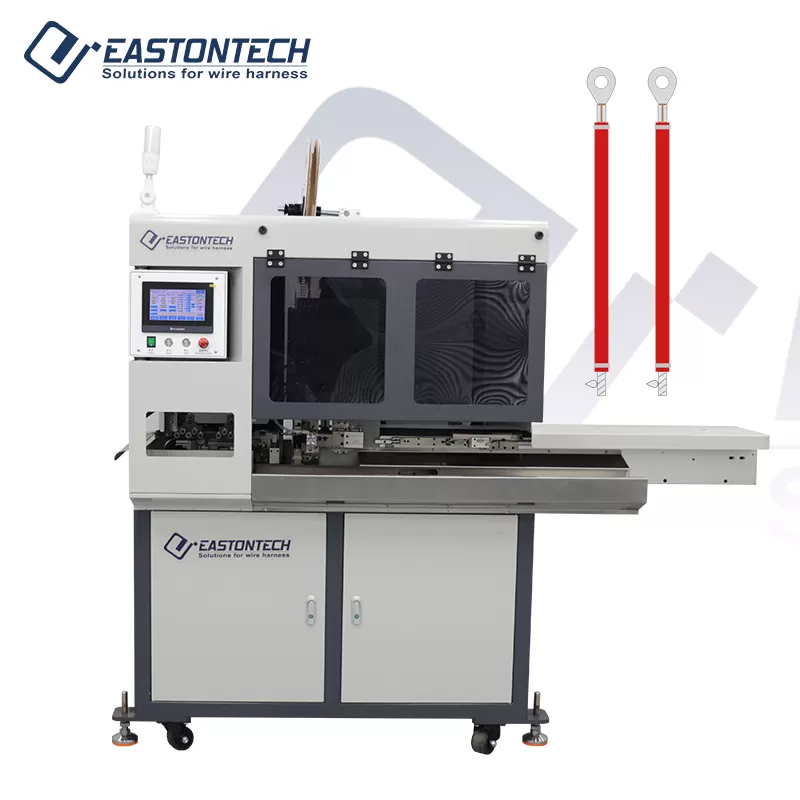

This multifunctional wire crimping tinning and soldering machine combines the features of two separate systems into one compact solution.It supports one-end tinning with the other end crimping, giving manufacturers the flexibility to handle diverse production needs without switching equuipment.

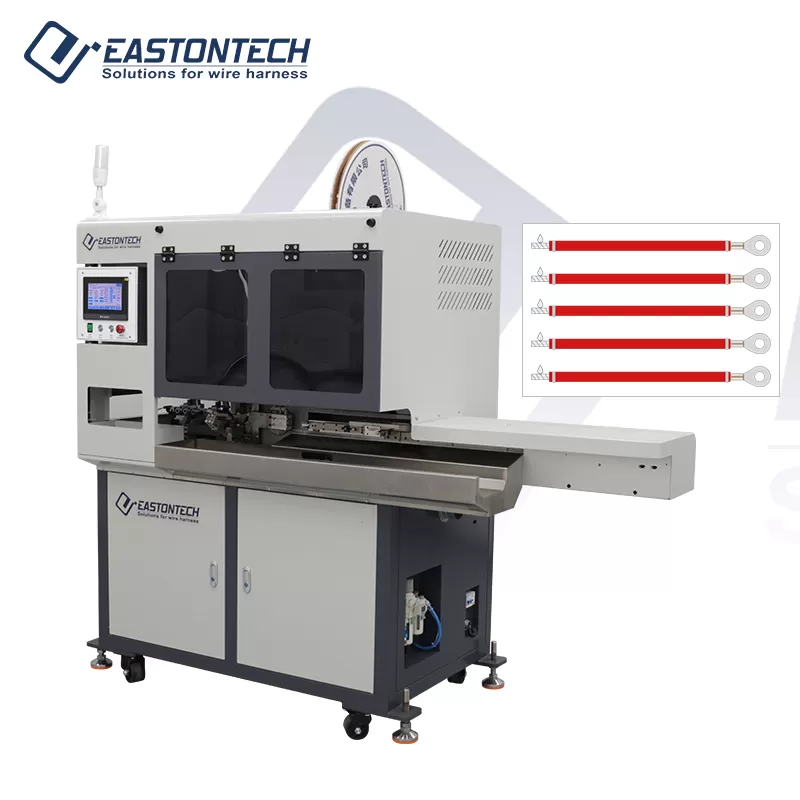

Designed for high-volume production, the system can simultaneously process 5 wires with exceptional efficiency and precision, making it ideal for complex wire harness manufacturing applications.

Engineered for versatility, efficiency, and durability, this compact yet powerful solution helps manufacturers maximize productivity while maintaining superior quality standards in both tinning and crimping applications.



Specifications of EW-8290

Model	EW-8290
Applicable wire range	AWG30-AWG18
Stripping	Side A:7.5mm Side B:11mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	1-1000mm
Capacity	6000-8000pcs/hour
Crimping force	2.0T
Tinning length	3-7mm
Air pressure	0.5-0.7Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is optional)
Power	220V/110V/50/60HZ
Applicators	30mm or 40mm strokes for optional
Dimension	17007201500mm
Weight	500Kg
Power cord plug	European, USA, Chinese plug

Features of EW-8290



English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)

01


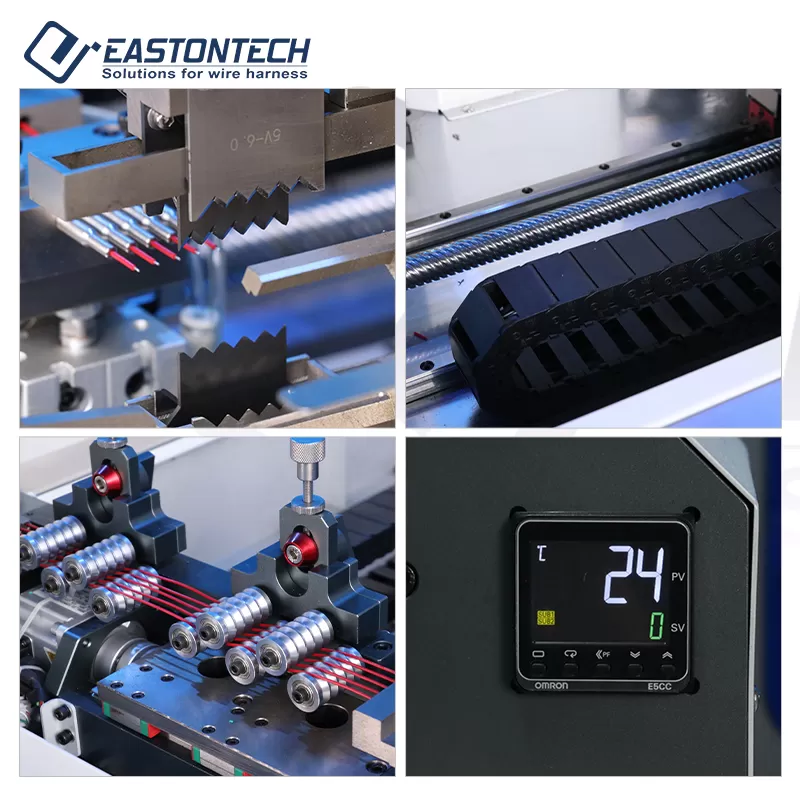

Applicator/Mold

Quick and easy for applicator change.
Precision wire cutting stripping and crimping.
Full servo screw,high precision, improve efficiency, stable performance.
