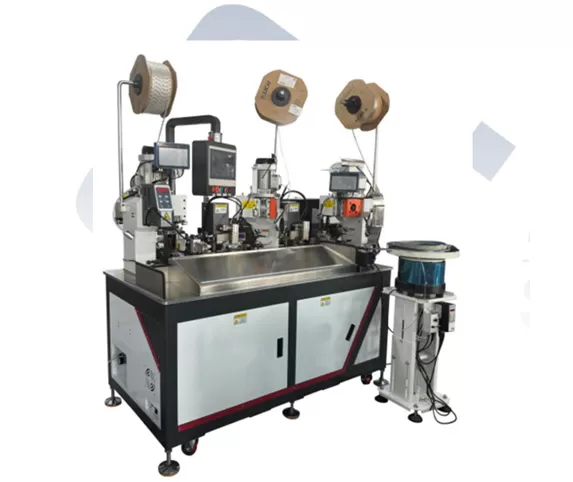

EW-8340 Fully Automatic Two Wire Joint Crimping and One Head Sheathed Inserting Machine

Wire range

AWG26#-AWG14#

Cut length

80mm-9999mm

Strip length

1-10mm

Crimp force

2.0T-3.0T

Crimp stroke

30mm

Applicable mold

OTP mold

Detection device

Air pressure detection, wire presence detection, crimp terminal detection, wire knot detection, pressure monitoring (optional)

Control method

Microcontroller control

Function

Single-wire single-end crimping, single-wire double-end crimping, double-wire parallel crimping, double-wire single-end crimping, single-end sheathing, automatic setting of incision depth, automatic setting of terminal crimping position

Production capacity

Double-wire three-in-one crimping through sheath 1500-2000 strips/hour (depending on the material terminal)
Double-wire three-in-one crimping 2500-3000 strips/hour (depending on the material terminal)
Single-wire double-end crimping 3300 strips/hour (depending on the material terminal)
Single-end crimping 3300 strips/hour (depending on the material terminal)
(This efficiency is only applicable when the machine is working continuously without stopping)

Compressed air

0.5MPa-0.8 MPa（170N/min）

Power supply

Single-phase AC220V 50/60Hz 10A

Dimensions

Length 1700*width 820*height 1800 (mm)

Main component brand

Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Reisai servo motor, Dacheng slide rail, imported bearings from Japan.

Pedal control

N/A
