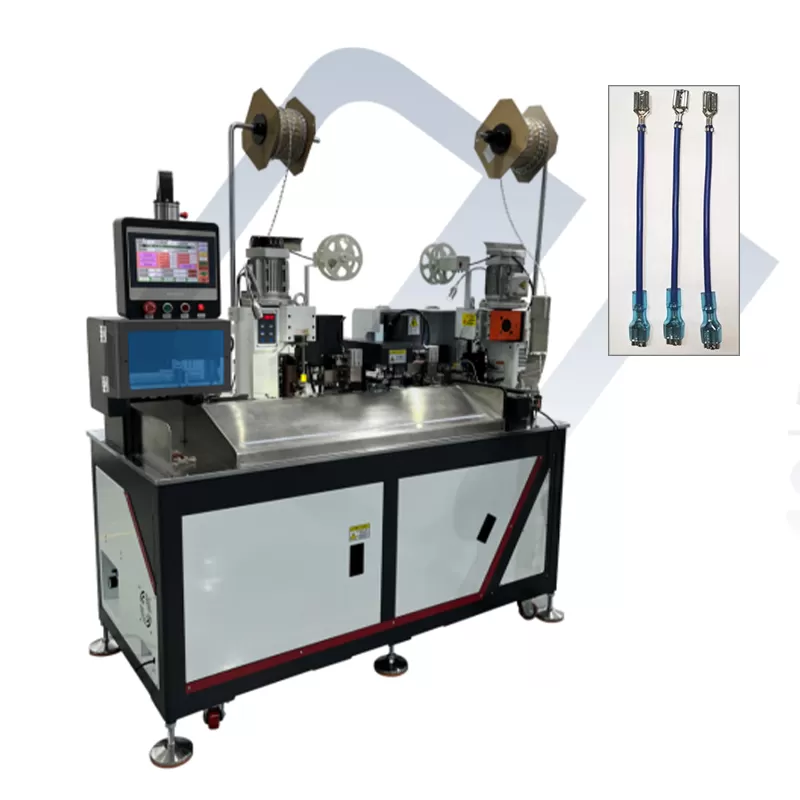

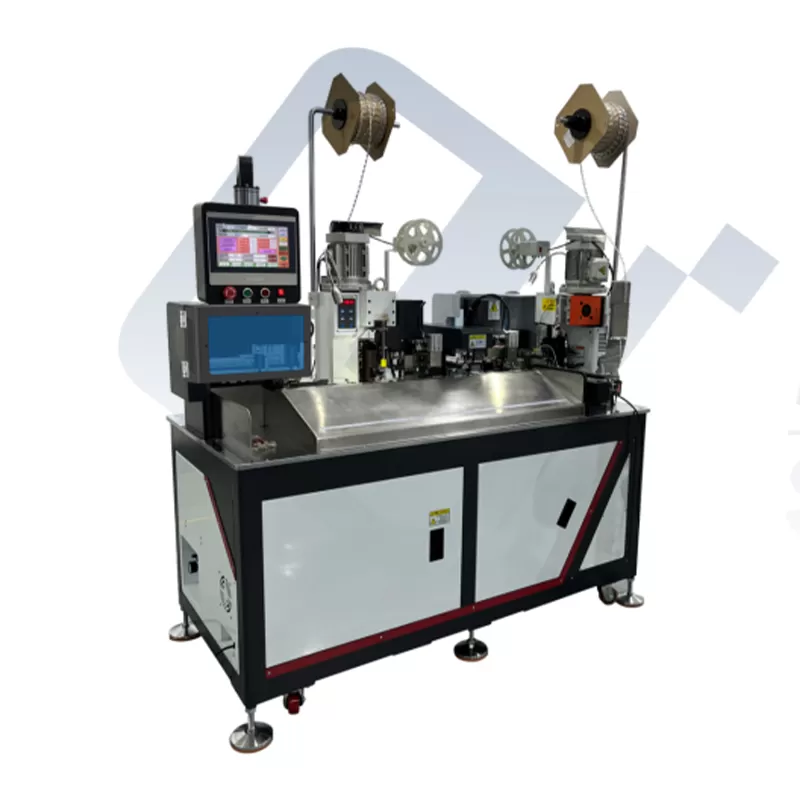

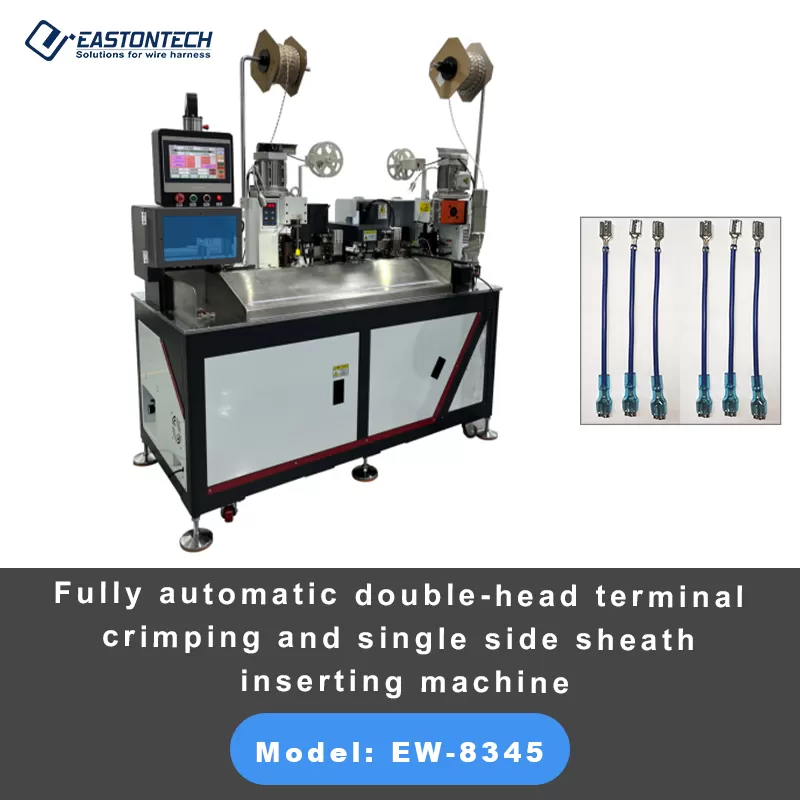

Model | EW-8345 |
Wire range | 1.0-4.0mm2(AWG1015-12#-24#) |
Cut length | 90mm-9999mm (800mm and above need to be equipped with a conveyor belt) |
Strip length | 1-15mm |
Crimp force | 3.0T |
Crimp stroke: | 30mm |

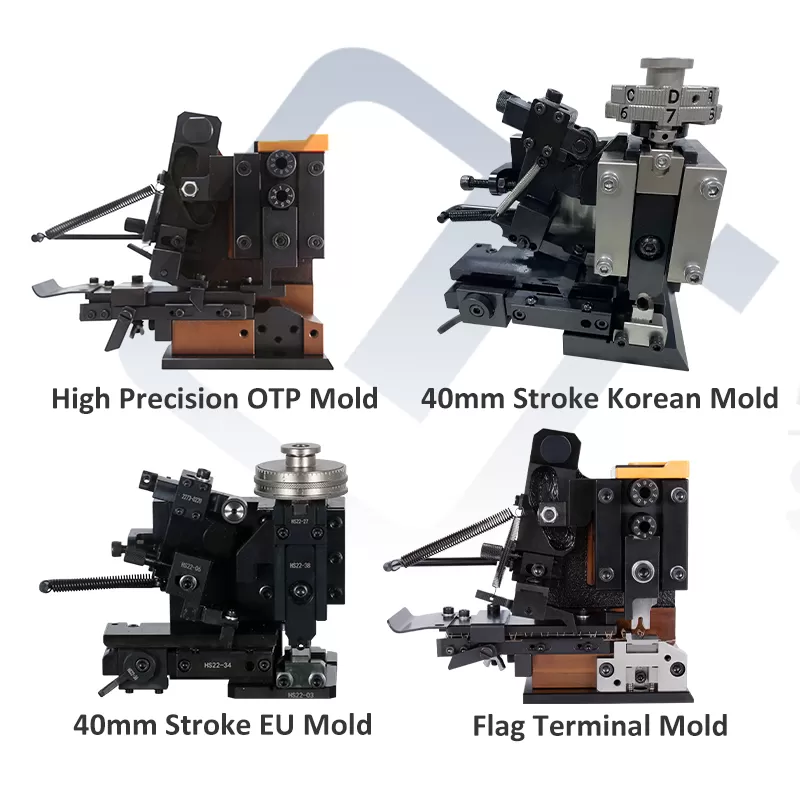

Applicable mold | Universal OTP mold |
Detection device | Air pressure detection, wire detection, crimping terminal detection, sheath detection |
Control method | Microcontroller control |

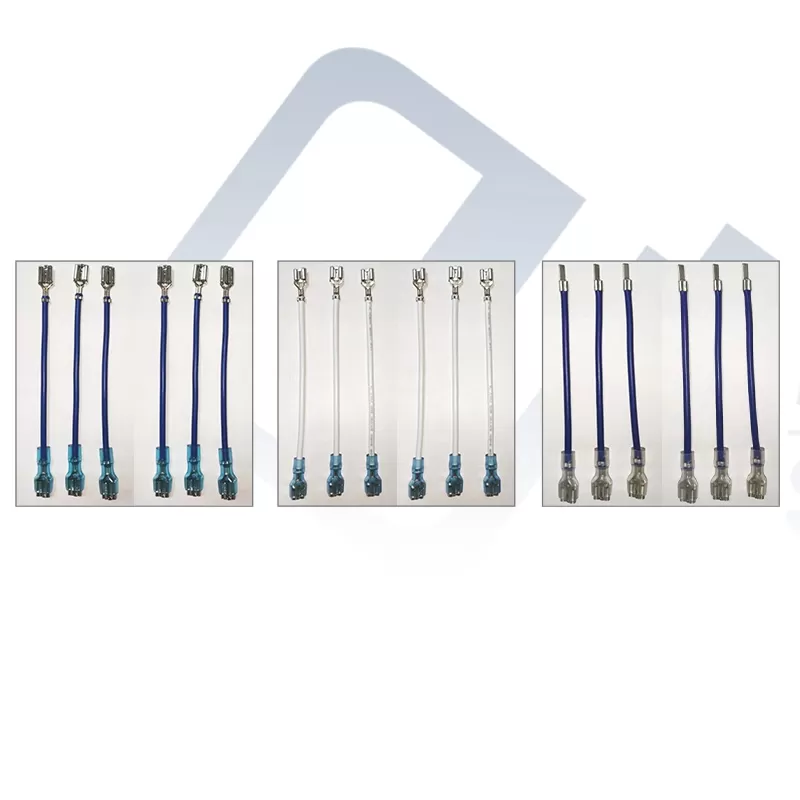

Function | Wire cutting, single (double) end stripping, single (double) end crimping, single end sheathing and pulling into place |
Production capacity | 2000-2500pcs/h (depending on the terminal of the wire) (this efficiency is only applicable when the machine is working continuously without stopping) |
Compressed air | 0.5MPa-0.8MPa (170N/min) |
Power supply: | Single-phase AC220V 50/60Hz |
Dimensions | Length 1700*width 900*height 1860 (mm) |
Main component brand | Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Reisai servo motor, Dacheng slide rail, imported bearings from Japan. |
Pedal control | N/A |

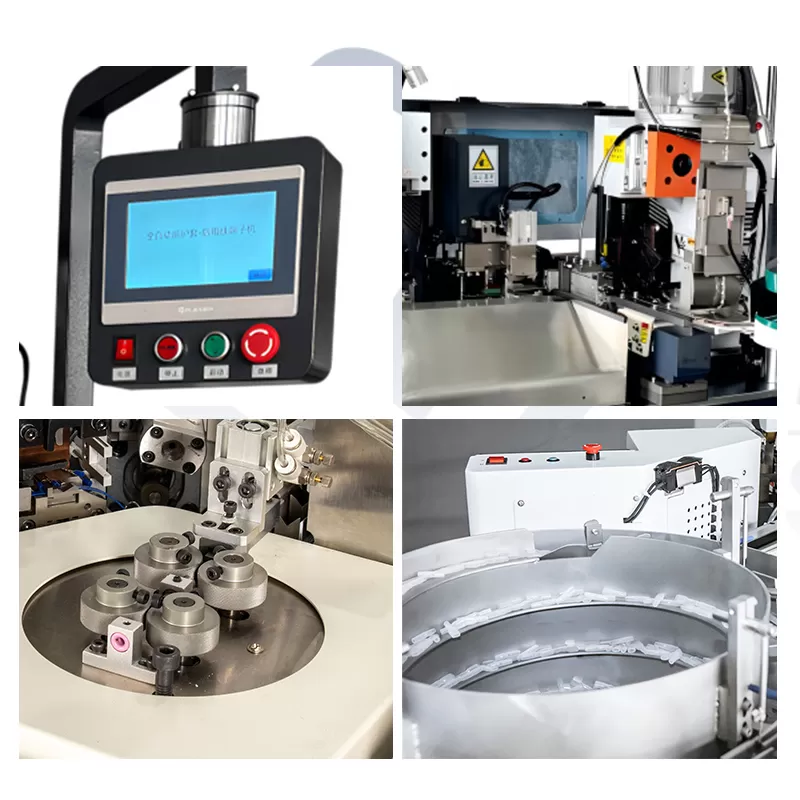

Supports Chinese and English dual language display,fully automatic computer programdesign, all operations are simple and clear
Servo motor is used to coordinate with thelead screw to position the wire accurately,and the slide rail can be moved forward and backward without any length error.
Imported aluminum knurled hardtreatment,good abrasion resistance,no damage to the wire skin,high wiredelivery accuracy,guaranteed size,not easy to slip and fall off.
It is customized for PVC Sheathed, and the viberation feeding plate is customized according to the PVC Sheathed samples.
