Name: EW-8355
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8355

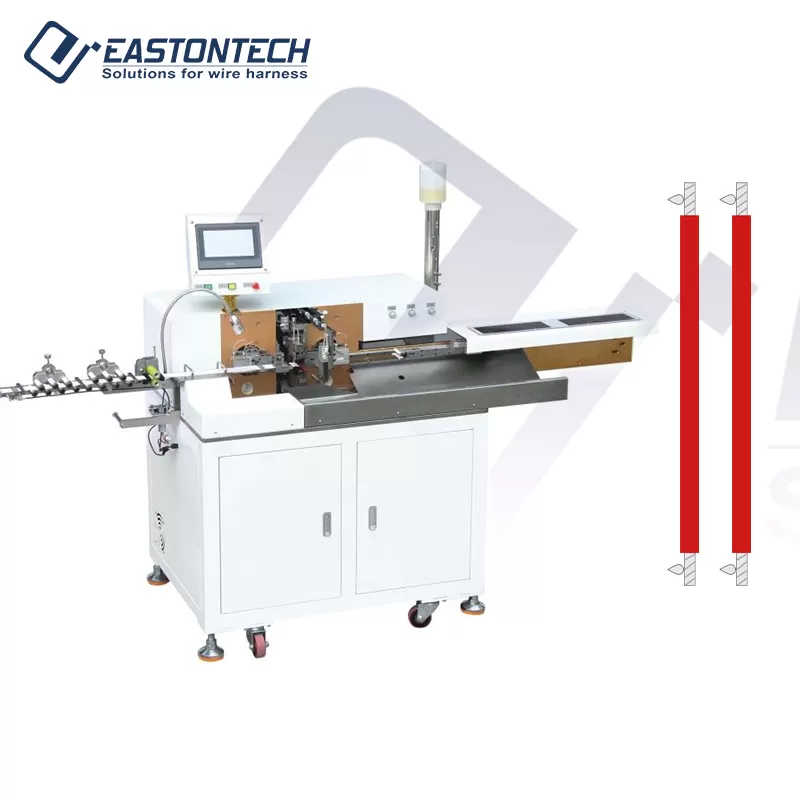

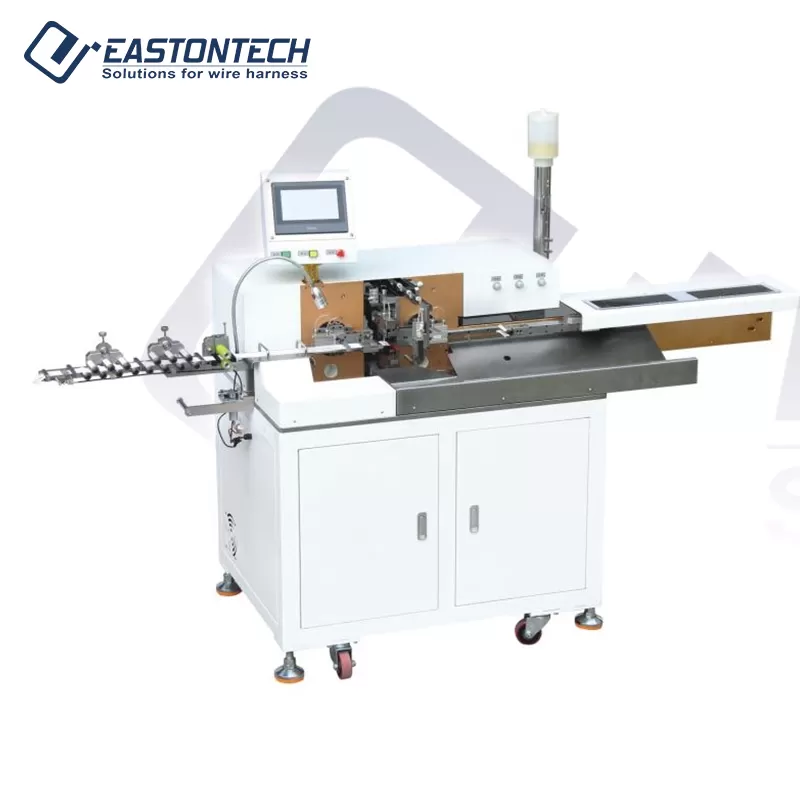

This is a fully automatic double-head tinning machine. Its core functions include wire fixed-length cutting, single-end and double-end half-stripping/full stripping, single-end and double-end twisting, and single-end/double-end tinning. It can adapt to a variety of wire materials such as electronic wires, high-temperature wires, etc., to meet the needs of high-precision wire harness processing.

This machine delivers exceptional production capacity. It is ideal for electronics manufacturirg, automotive wiring harnesses, and high-volume cable assembly operations where efficiency and precision are critical.

Specifications of EW-8355

Model	EW-8355
Power	2000W
Power supply	AC220/50Hz
Air pressure	0.6Mpa
Display	Touch screen LCD display
Applicable wire	Electronic wire, high temperature wire, Teflon wire, etc.

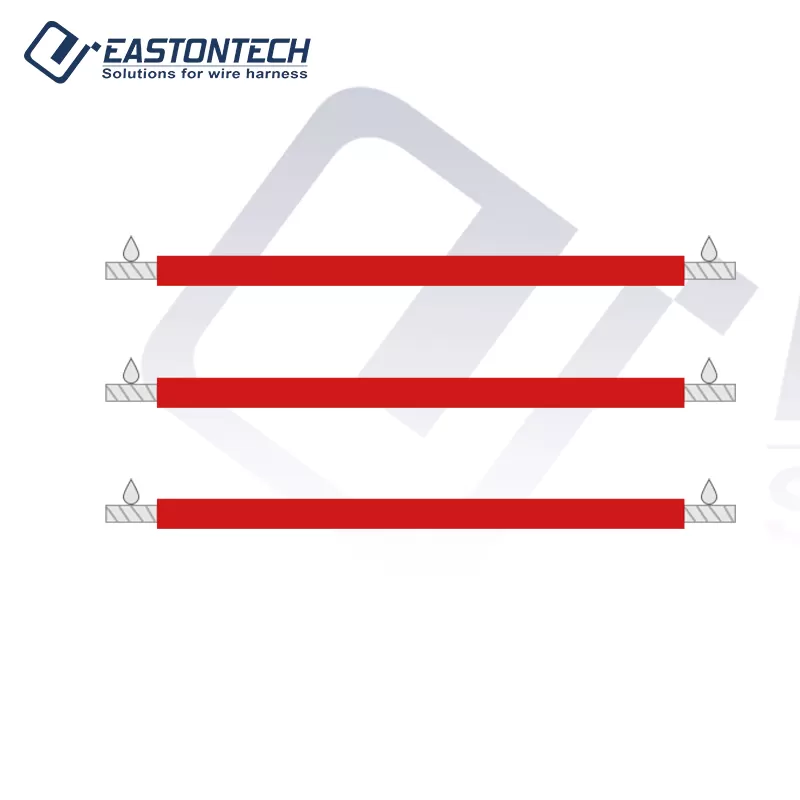

Function	Wire cutting, single and double end half stripping and full stripping, single and double end twisting, single end tinning, double end tinning
Processing range	Marking machine 32#~16# wire
Productivity	According to 100mm length, about 1300 times per hour, 6000-18000 pieces/hour, according to n mm length = single dip/double dip, 34m m=1850 times/1535 times; 30mm=1815 times/1480 times; 20mm=1735 times/1395 times; 15mm=1670 times/1320 times; 100mm=1350 times/1150 times; 200mm=1300 times/1100 times; 300mm=1280 times/1090 times; 400mm=1240 times/1060 times; 6 00mm=1160 times/1010 times; 800mm=1100 times/960 times; 32#-28# lines can make 10 lines at the same time; 26#-24# lines can make 8-9 lines at the same time; 22#-20# lines can make 6-7 lines at the same time; 18#-16# lines can make 4-5 lines at the same time; (the length of the line wire is different)
Wire cutting length	10-830 mm (long lines can be customized)
Stripping length	Standard front and rear blade distance 12mm (changeable blade distance: 15mm, 18mm, etc.)
Tinning length	Marking machine range 0.5-11mm (changeable)
Twisting length	Marking machine 2mm-10mm (changeable)
Twisting method	Digital motor drive mode
Detection function	Wire shortage detection, wire knotting, air pressure detection
Transmission structure	Precision screw, guide rail, reducer
Auxiliary device	Waste flux collection device/waste tin slag collection device/waste rubber collection device
Weight	380kg
Appearance size	17207501450
Placement space	3 square
Pedal control	N/A

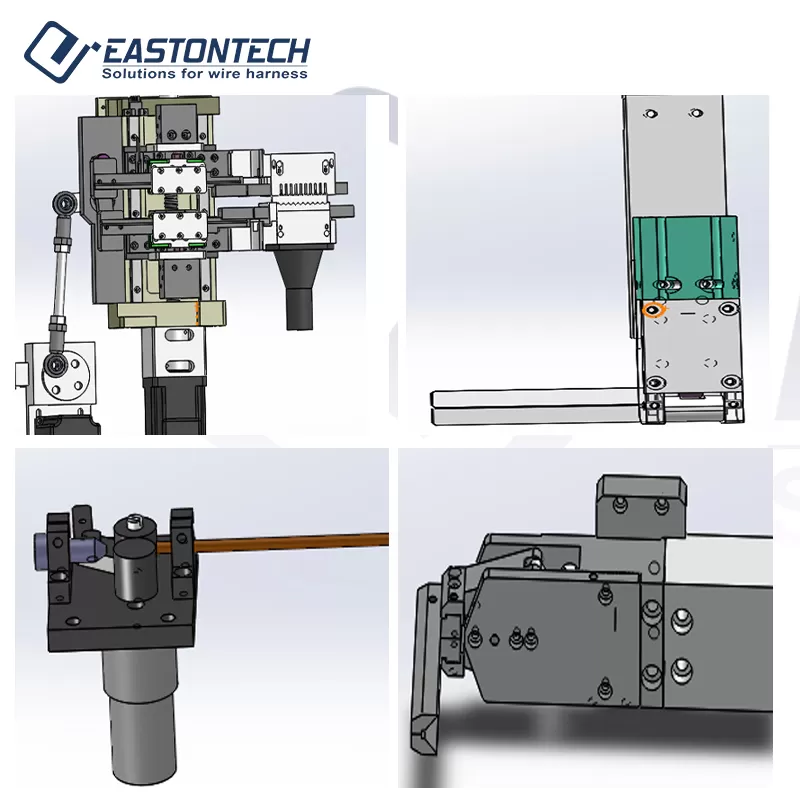

Features of EW-8355



High Precision Knife Seat

The knife seat adopts precision positive and negative thread rotating screw and CPC slide rail to ensure cutting and peeling accuracy.

01


Pneumatic Wire Clamp

Pneumatic wire clamp is used to keep the wire clamp stable.

02


Large Flow Cylinder

Use a large flow cylinder to keep the clamp firmly.

03


Stable Speed

Use a fixed speed motor to deliver the tin accurately.

04
