EW-8360

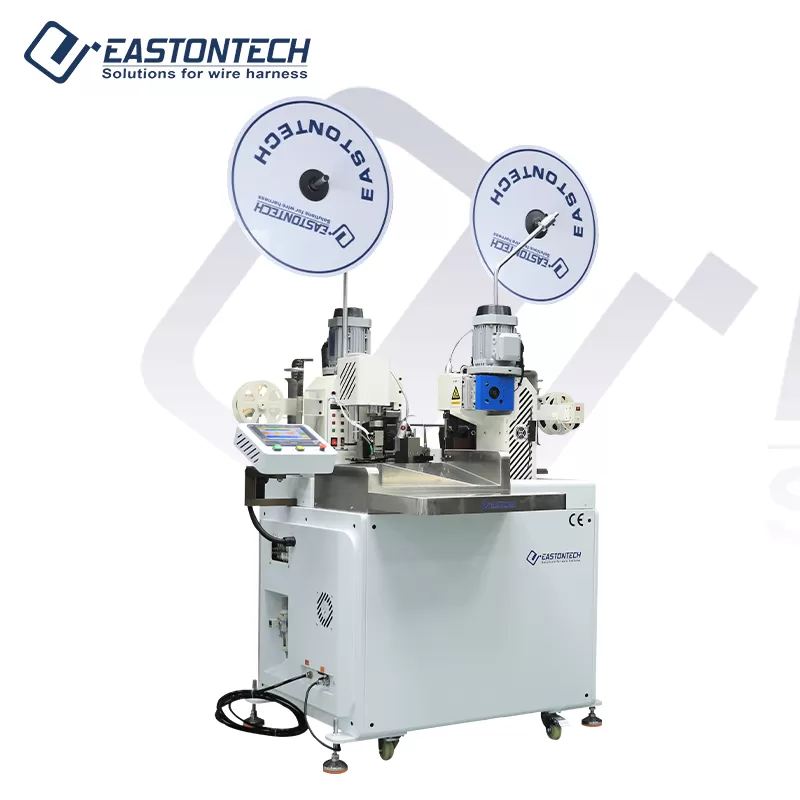

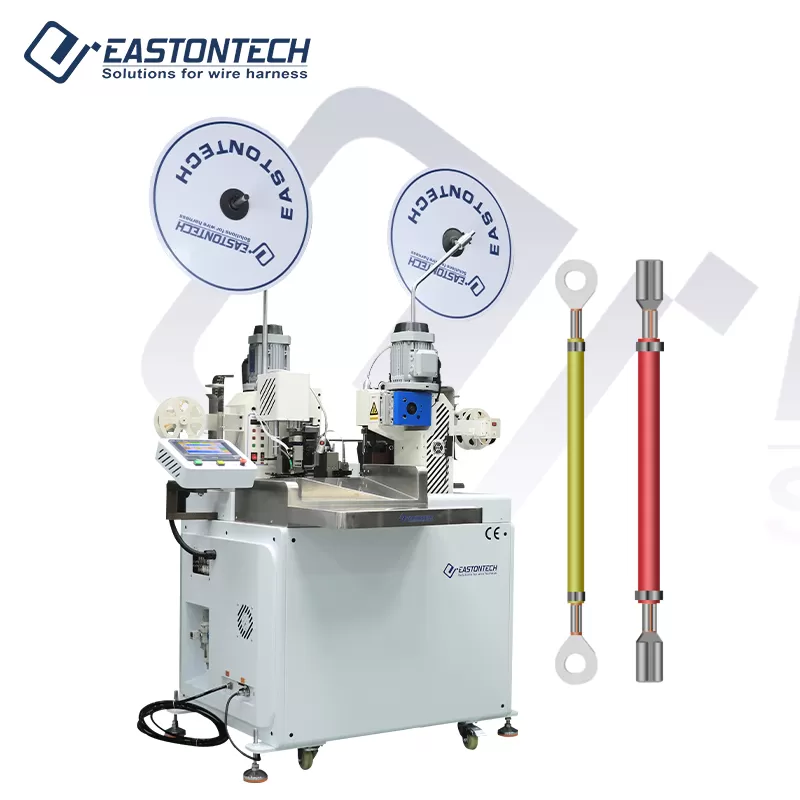

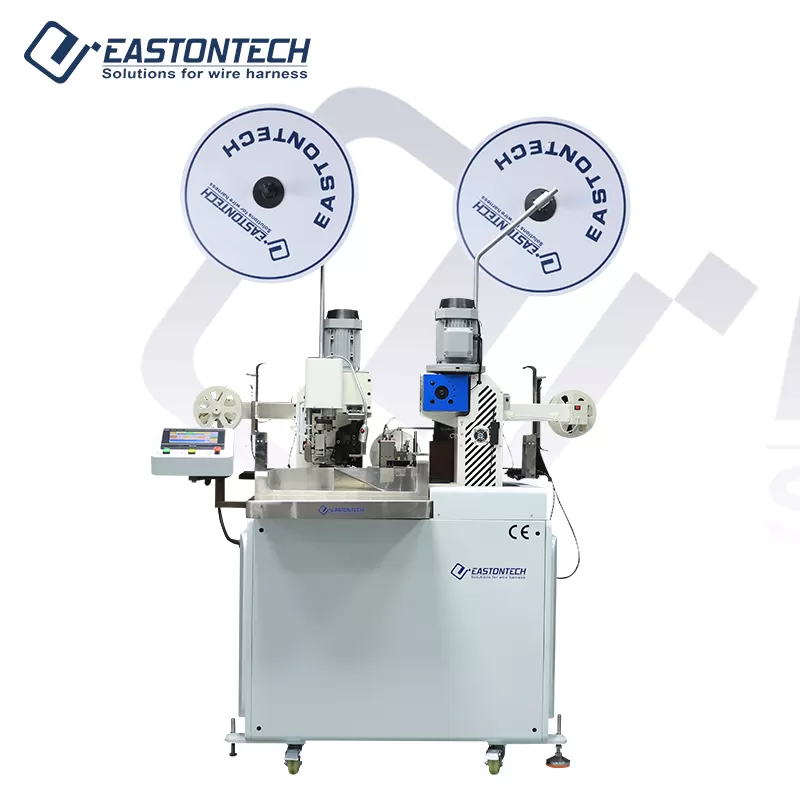

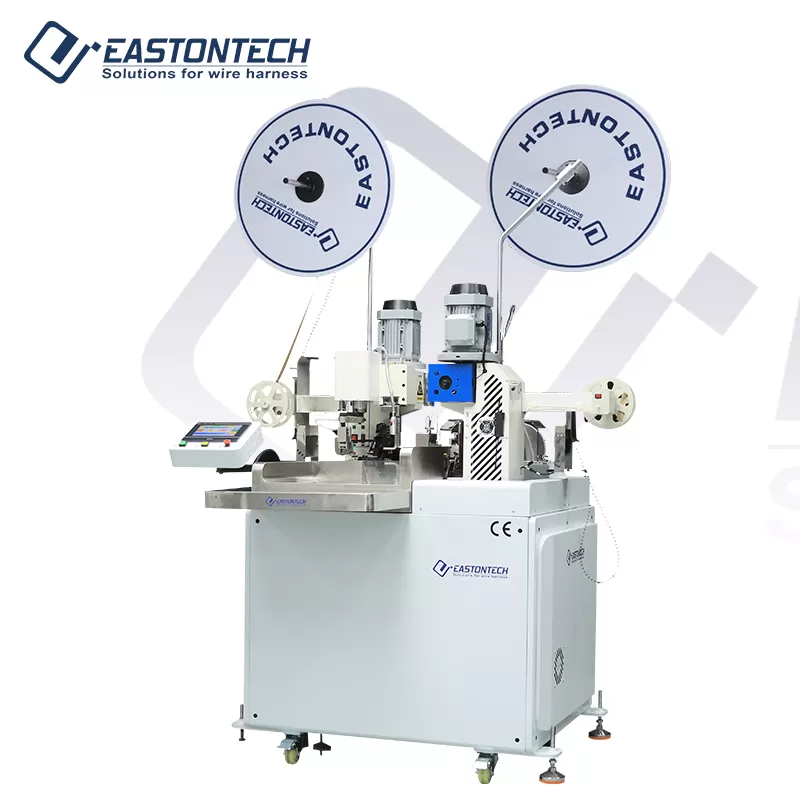

This high-performance automatic terminal crimping solution combines cutting, stripping, and crimping in one streamlined system, ensuring superior efficiency for professional wire harness production.

The machine features a four-wheel wire feeding system that prevents wire slippage and improves feeding accuracy while increasing contact area to reduce damage to wire insulation.

With its versatile architecture, the machine can handle a wide range of wire processing tasks within a single platform, making it ideal for industries such as automotive, aerospace, household appliances, and geeneral cable assembly.



Specifications of EW-8360

Model	EW-8360
Power supply	AC220/50Hz
Power	2000W
Air pressure	0.4m-0.8mpa air source drying
Terminal machine	Casting type precision terminal machine
Crimp capacity	2T
Display mode	Touch screen LCD display

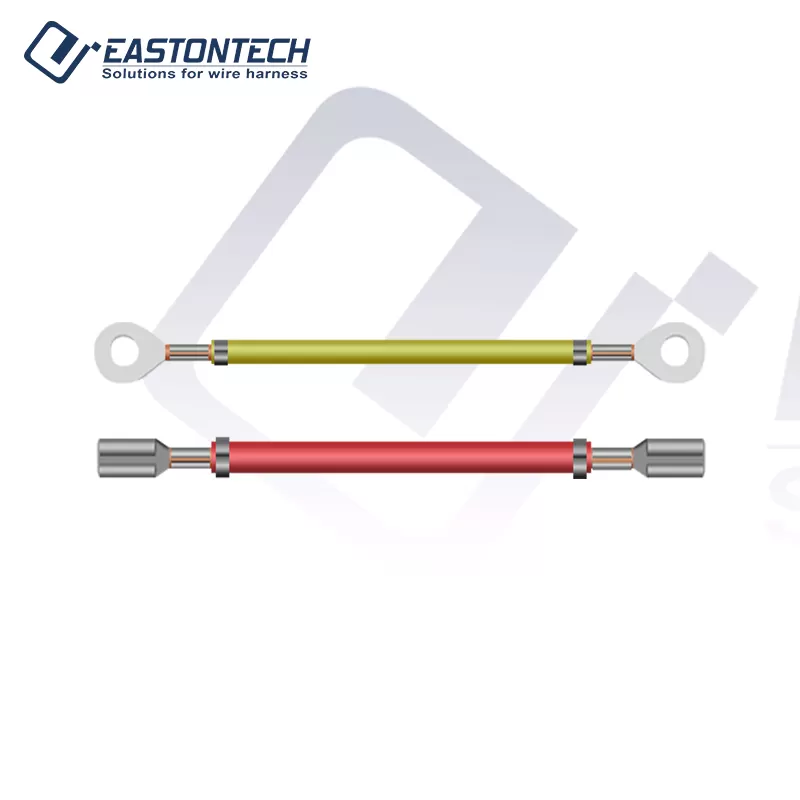

Function	Wire fixed length cutting and stripping double-end crimping
Applicable wire	Electronic wire, high temperature wire, Teflon wire, etc.
Production capacity	4200 pieces/hour
Applicable wire diameter	30#-14#
Cutting processing accuracy	Within ±0.1 (0.1 + 0.005 * L) mm, L = cutting length
Shortest glue length in the middle	28mm glue left in the middle of the marking machine (special short wire can be modified)
Stripping length	Front and rear knives of the marking machine 9.0mm distance (variable)
Applicable mold	Universal for horizontal and vertical molds
Wire feeding mode	4-wheel wire feeding
Translation mode	Front and rear translation servo brake
Wire collection mode	Rotating swing arm wire collection
Transmission	Screw rod, guide rail, synchronous belt
Detection function	Wire knotting, missing wire detection, paper collection detection, air pressure detection
Auxiliary device	Terminal cutting waste leakage device/waste rubber collection device, paper collection machine, air pressure buffer gas tank
Others	Terminal pressure monitor can be installed
Weight	350 kg
Dimensions	Length 1230 width 820 height 1600mm (length and width do not include protrusions)
Placement space	3.5 square
Pedal Start	N/A

Features of EW-8360



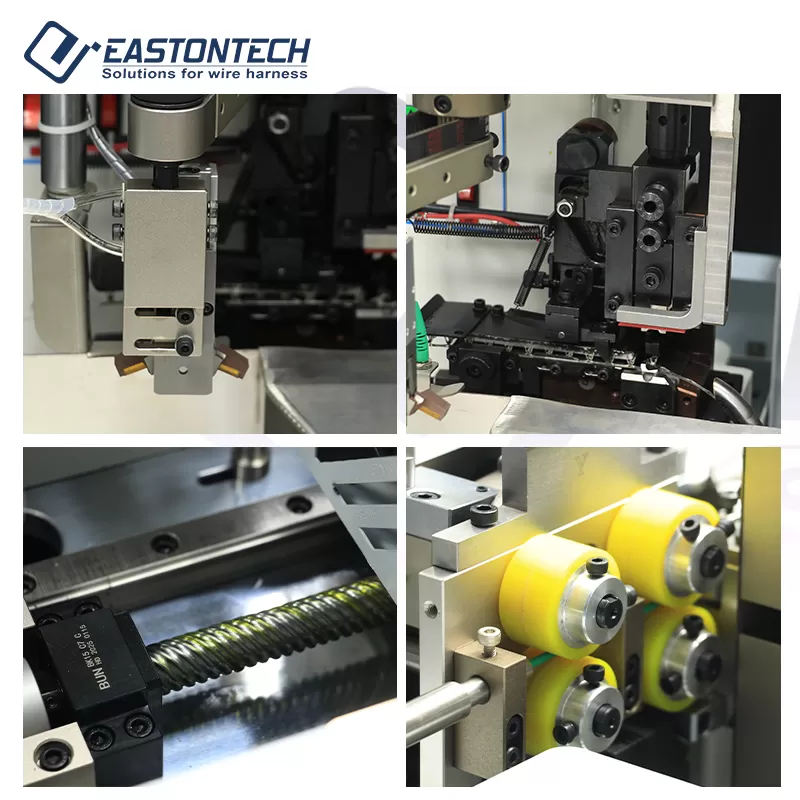

Front-end Translation Take-up Assembly

The front end mechanism is driven by a servo motor, and the wire is taken up in a horizontal direction. It uses a precision ball screw and an auxiliary wire clamping mechanism to improve efficiency.

01


Knife Seat

The knife seat has high strength structure, high precision ball screw, double spiral cutting and stripping system, V knife and high precision cutter are used for special wires.

02


Rear Translation Take-up Assembly

It adopts precision ball screw, translational wire taking-up, and auxiliary wire clamping mechanism to improve efficiency.

03


Cable Clamp Assembly

It can ensure a good match between the synchronous belt and the synchronous wheel, and ensure the stability, reliability and working efficiency of the transmission system.

04
