Name: EW-8820
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8820

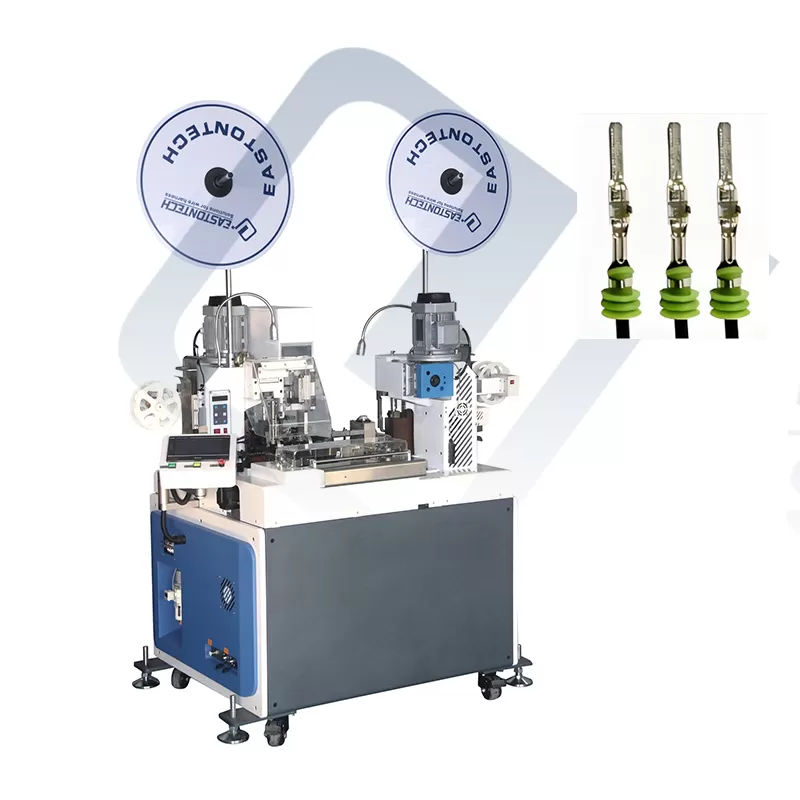

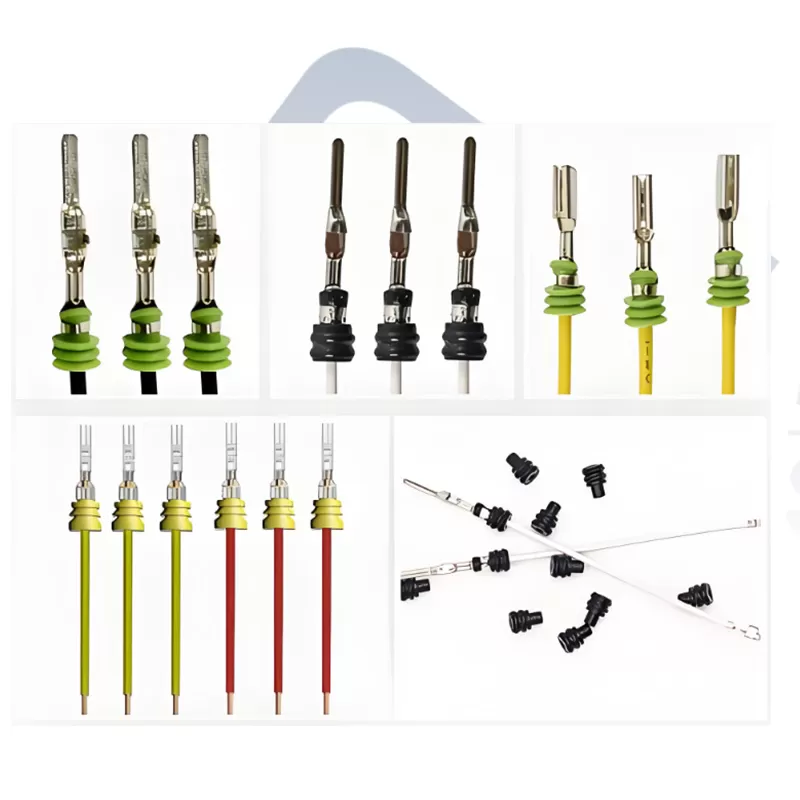

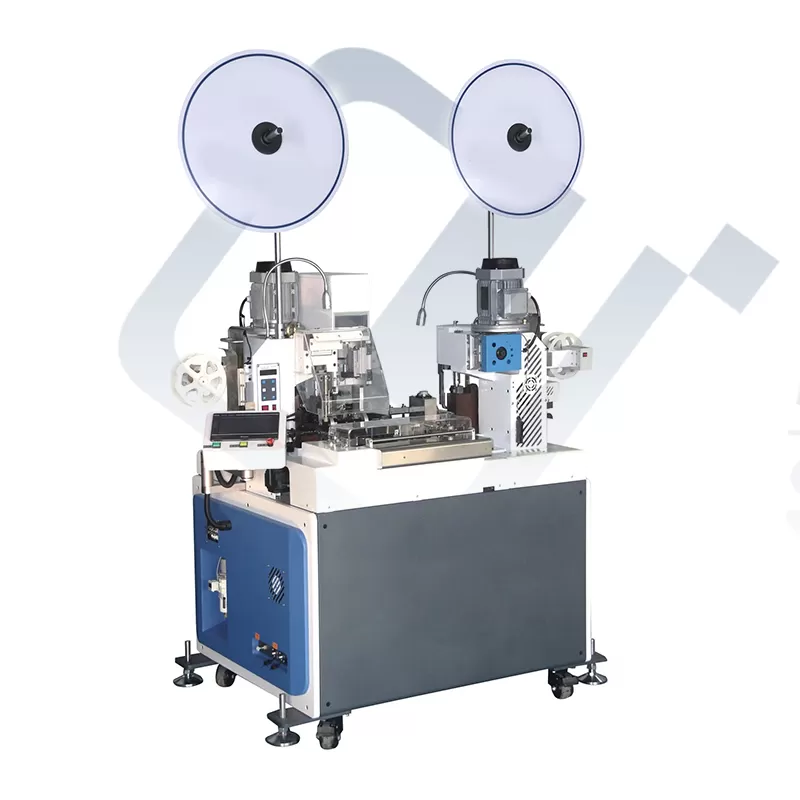

This economical double-sided crimping and single-head waterproof sealing machine integrates multiple functions including wire cutting, stripping, waterproof sealing, and terminal crimping into one efficient unit, The automatic feeding system ensures seamless waterproof plug installation, while the versatile design allows processing of various product types with quick changeover capabilities.

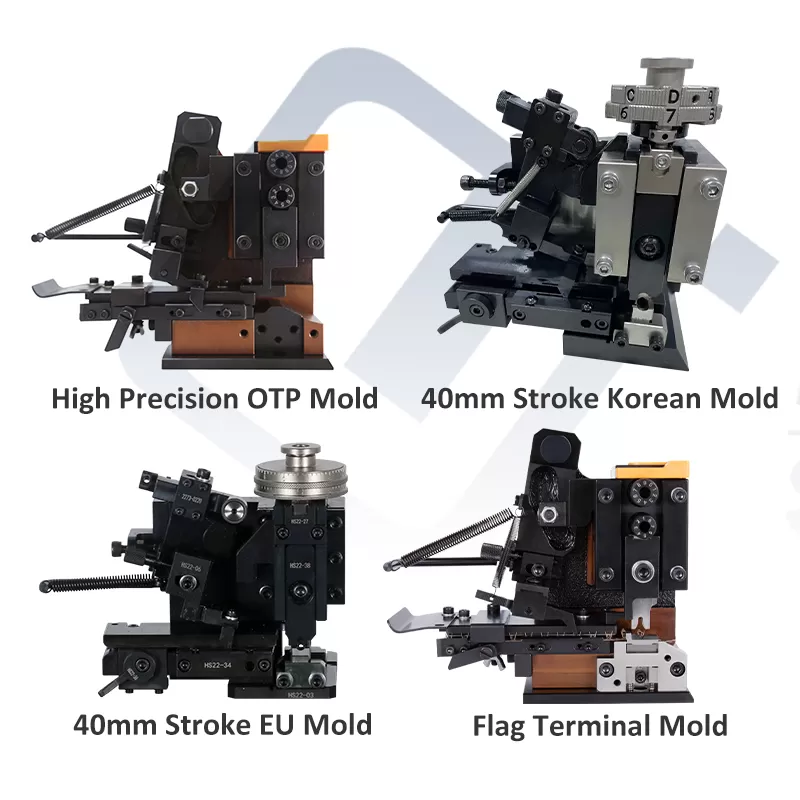

Built with nodular cast iron construction, this machine delivers exceptional rigidity and consistent crimping performance. The standard OTP bayonet mold system provides reliable terminal connections, with optional European applicator compatibility and crimping force monitoring for enhanced quality control and real-time process verification.



Specifications

Model	EW-8820
Applicable wire range	AWG28-AWG16
Applicable wire	Electronic wires, high-temperature wires, Teflon wire , etc
Stripping length	Front <16mm , end <18mm
Cut precision	±0.1（0.1＋0.003*L）mm，L=cutting length
Capacity	1200-1700pcs/hour ( L=100mm)
Crimping force	2.0T
Stroke	30mm/40mm
Air pressure	0.5-0.7Mpa
Detection	Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error
Power supply	220V/50HZ
Dimension	17009201580mm
Machine Weight	550KGS
Machine Power	3000W
Air compressor	Yes
Pedal	N/A

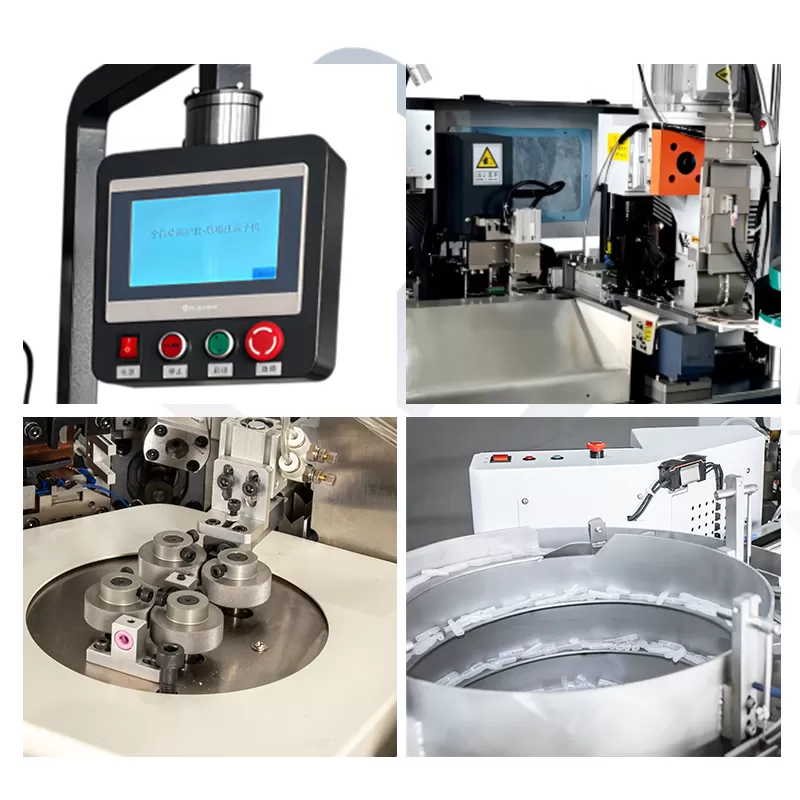

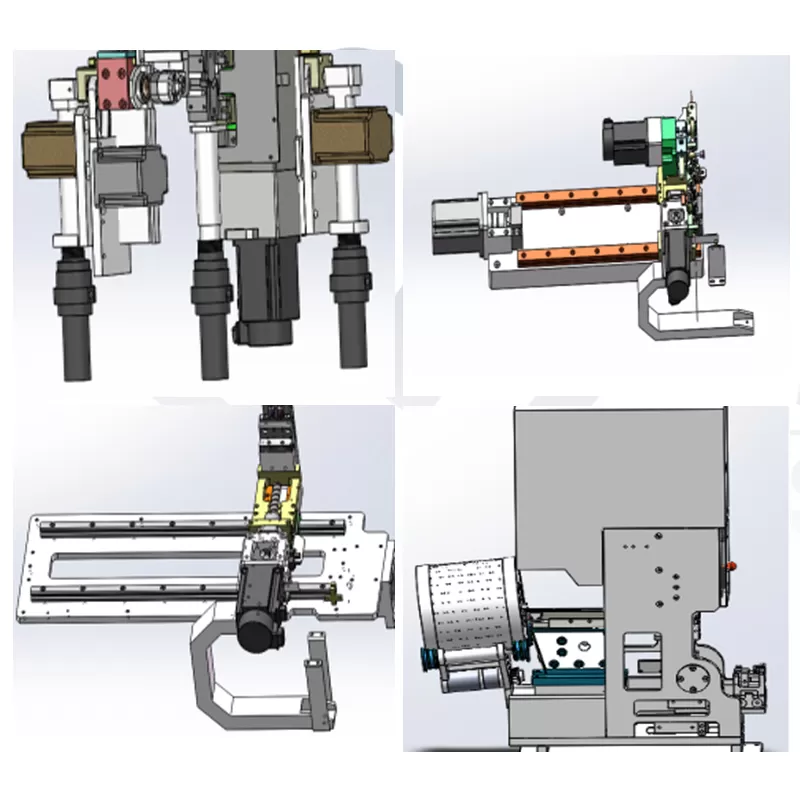

Features



Knife holder assembly

The production efficiency and quality are improved, and the quality of leaching tin is guaranteed

01


Front roller Horizontal wirefeeding assembly

The roller pressure can be precisely adjusted, 2-wheel wire feeding, flexible wire pressing, no wire damage

02


Translate backend components

Adopt precision ball screw ,auxiliary wireclamping mechanism to improve efficiency.

03


Waterproof plug assembly

It has breathable and sealing properties,which can effectively protect equipmentand structures from moisture.

04
