EW-8865

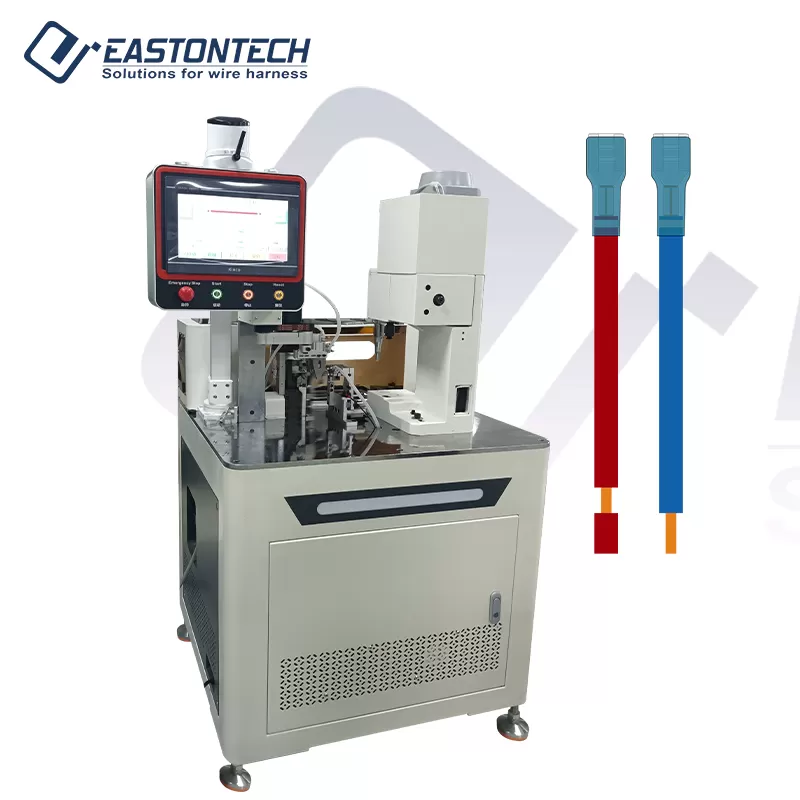

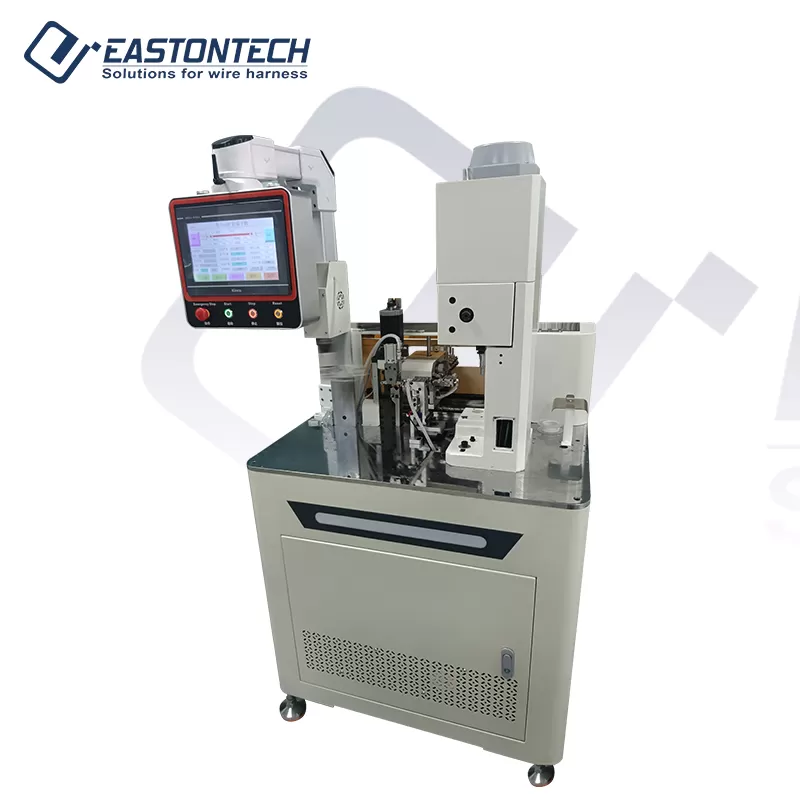

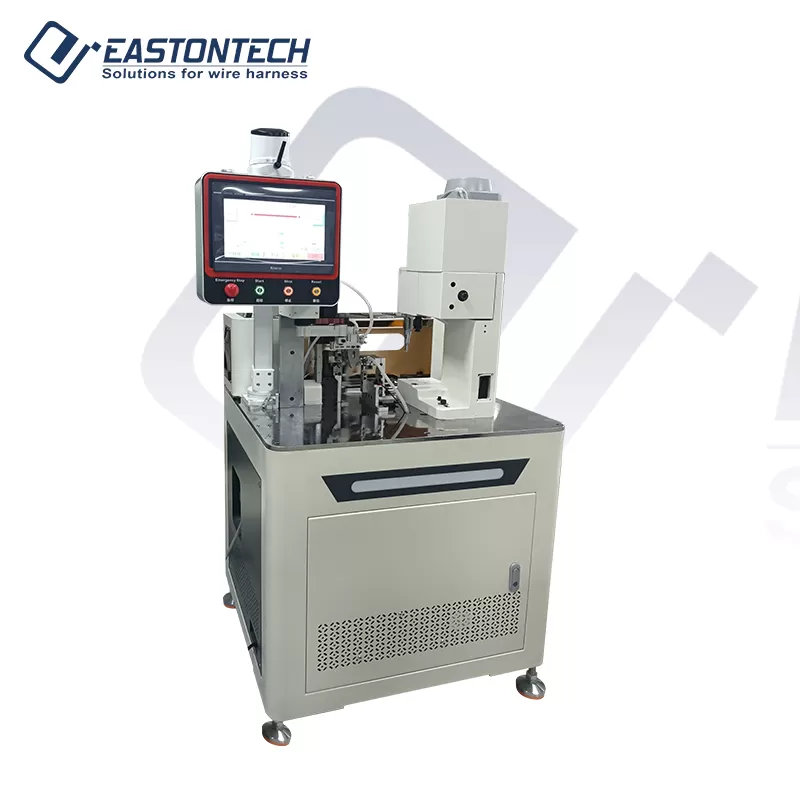

The Automatic Wire Crimping and insulation Sleeve Insertion Machine is an all-in-one solution for high-precision wire harness processing. This innovative system is specifically designed to support single-end terminal crimping and protective sleeve insertion on one side of the wire, while the other side only performs wire stripping. This unique configuration makes it an ideal choice for manufacturing applications requiring distinct processing on different ends of the wire.

For enhanced guality assurance, optional features such as crimping force monitors and visual inspection systems are available. The operator-friendly color touchscreen interface includes program memory for storing multiple setings, minimizing downtime during product changes. Advanced MES integration enables remote task management,real-time data monitoring, and seamless compatibility with smart factory operations.



Specifications of EW-8865

Model	EW-8865
Applicable wire range	AWG26-AWG14
Stripping length	Front end 0.5-8mm, rear end 0.1-10mm
Cut precision	Cut length <100mm, ±0.2% (cut length0.002) Cut length >100mm, ±0.5% (cut length0.005)
Cutting length	60-99999mm
Capacity	around 1400pcs/hour (Cut length 60-100mm), special wire around 1000pcs/hour
Air pressure	0.5-0.7Mpa
Stroke	30mm/40mm
Function	It can automatically complete cutting, stripping, wearing sheath and crimping
Power	220V/110V/50/60HZ 10A
Dimension	W800D700H1800 mm
Weight	300Kg
Options	CCD visual Inspection; CFM

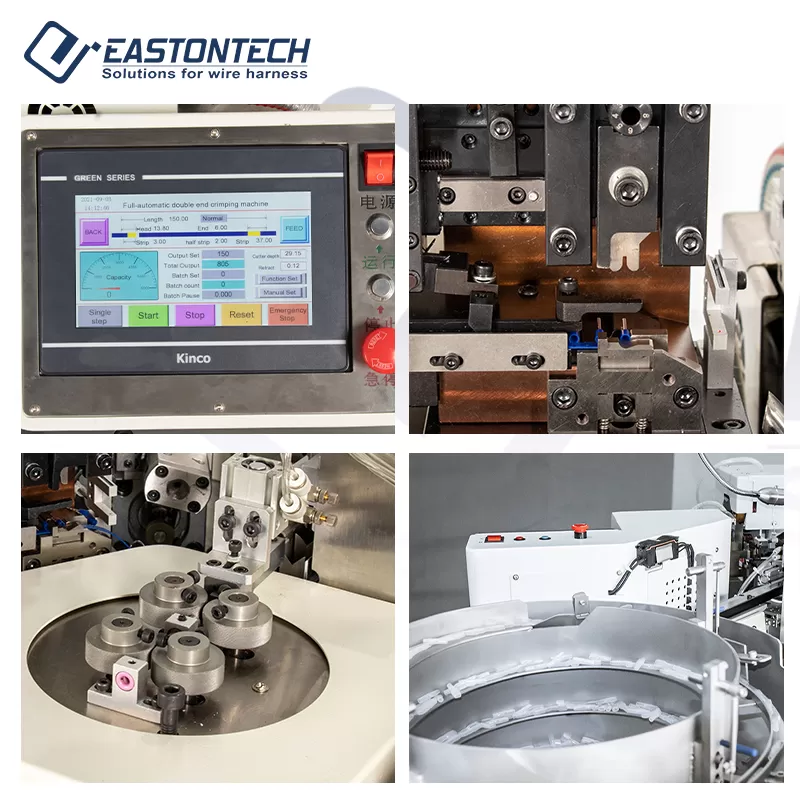

Features of EW-8865



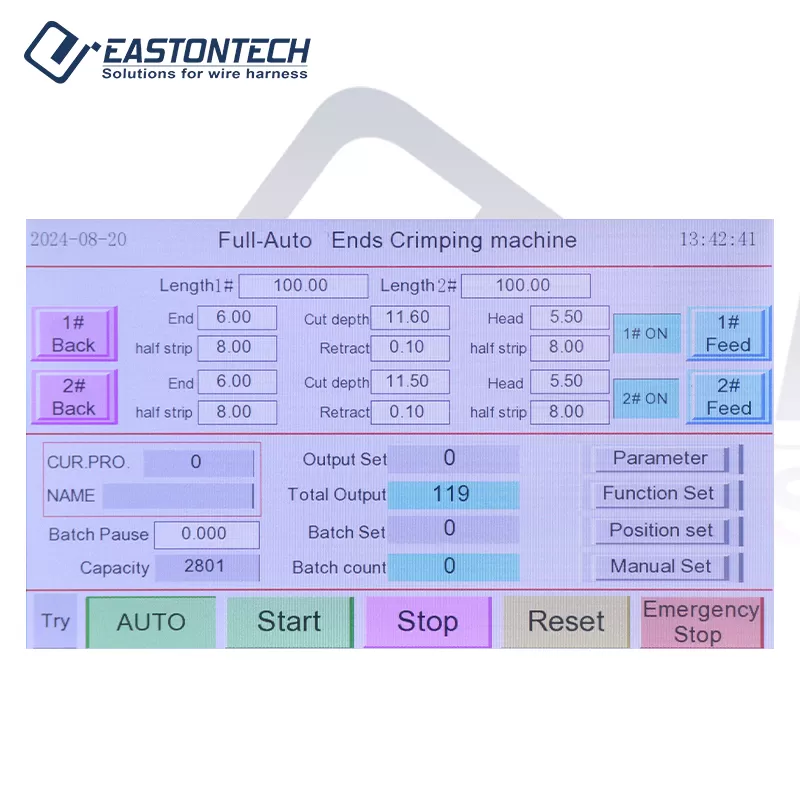

LCD Touch Screen

Supports Chinese and English dual language display,fully automatic computer programdesign, all operations are simple and clear.

01


Feeding Wheel

Imported aluminum knurled hardtreatment,good abrasion resistance,no damage to the wire skin,high wiredelivery accuracy,guaranteed size,not easy to slip and fall off.

02


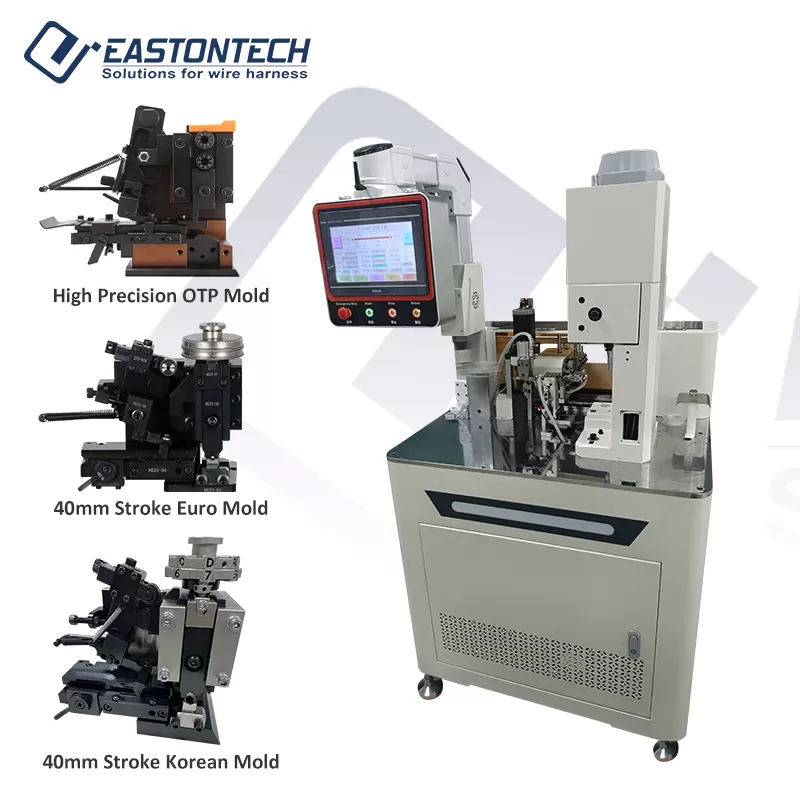

High Precision Mold

High-precision moldsmake processingmorestable and increaseproduction speed.

03


Viberation Feeding Plate

It is customized for PVC Sheathed, and the viberation feeding plate is customized according to the PVC Sheathed samples.

04
