Name: EW-8875
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8875

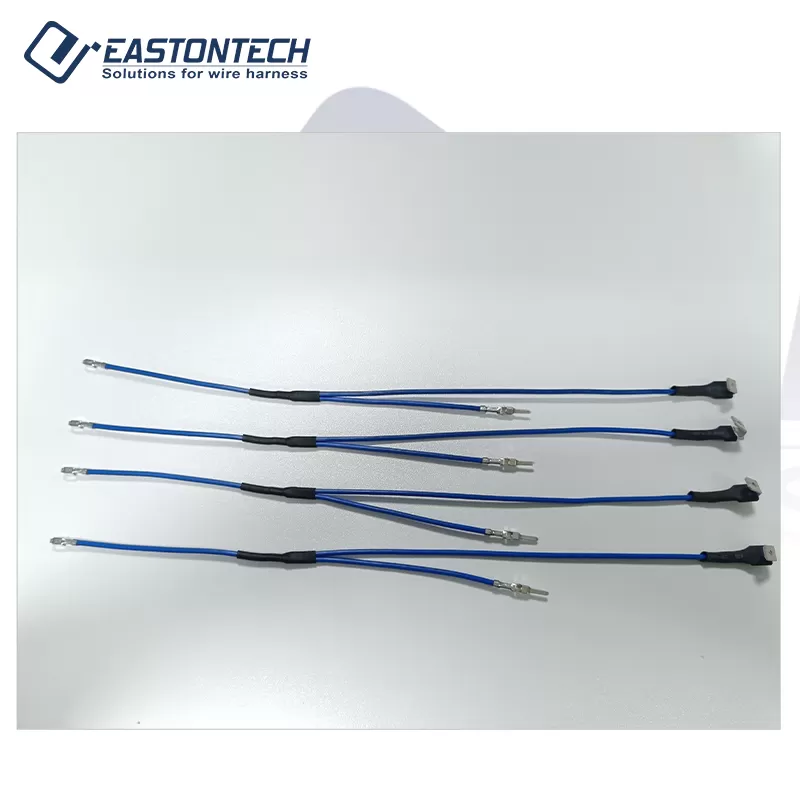

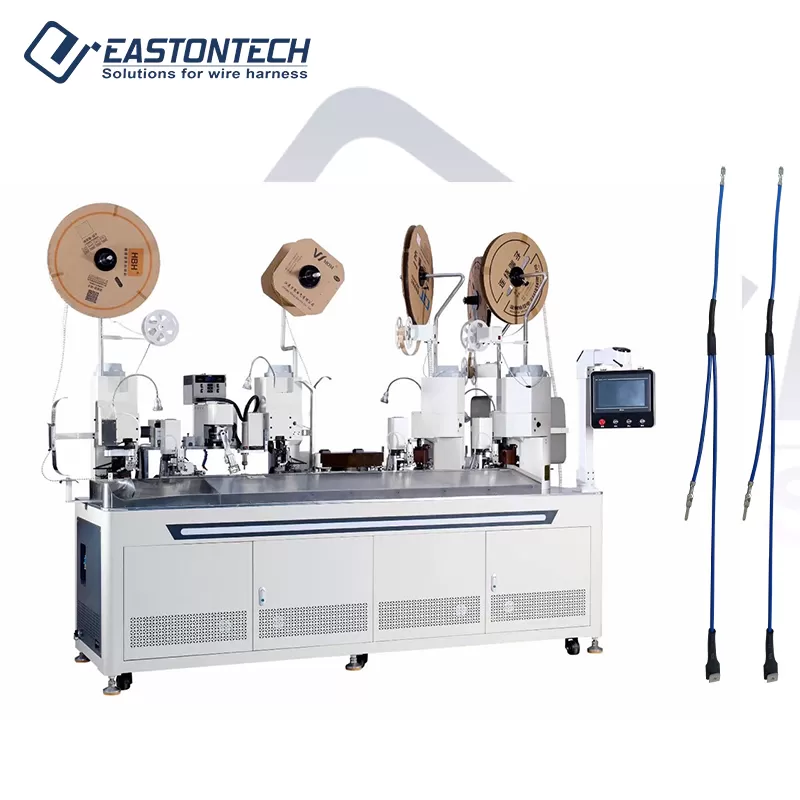

This fuly automatic multi-wire combined crimping machine is engineered for high-efficiency wire harness production in electric vehicles, industrial automation, and electronic manufacturing applications. The machine features advanced one-to-many crimping capabilities, utilizing U-shaped terminals to combine single wires with multiple conductors in a single operation.

Equipped with three independent wire feeding mechanisms and five dedicated crimping stations, this versatile system can simultaneously process three different wire gauges with customizable usage patterns. The first and second wire feeds can be programmed for multiple uses within a single cycle, while the third wire feed provides single-use functionality, enabling complex harness configurations such as four-wire combination assemblies.



Specifications of EW-8875

Model	EW-8875
Applicable wire range	AWG22-AWG16
Stripping length	Front: 0.5-8mm; Rear: 0.1-10mm
Cut precision	±(0.5+0.002*L) mm, L=cut length
Cutting length	76-9999mm
Capacity	800 sets/hour(L=80-150mm)
Crimping stroke	30mm/ 40mm
Air pressure	0.5Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Dimension	80026001800mm
Weight	900Kg
Pedal	N/A

Features of EW-8875



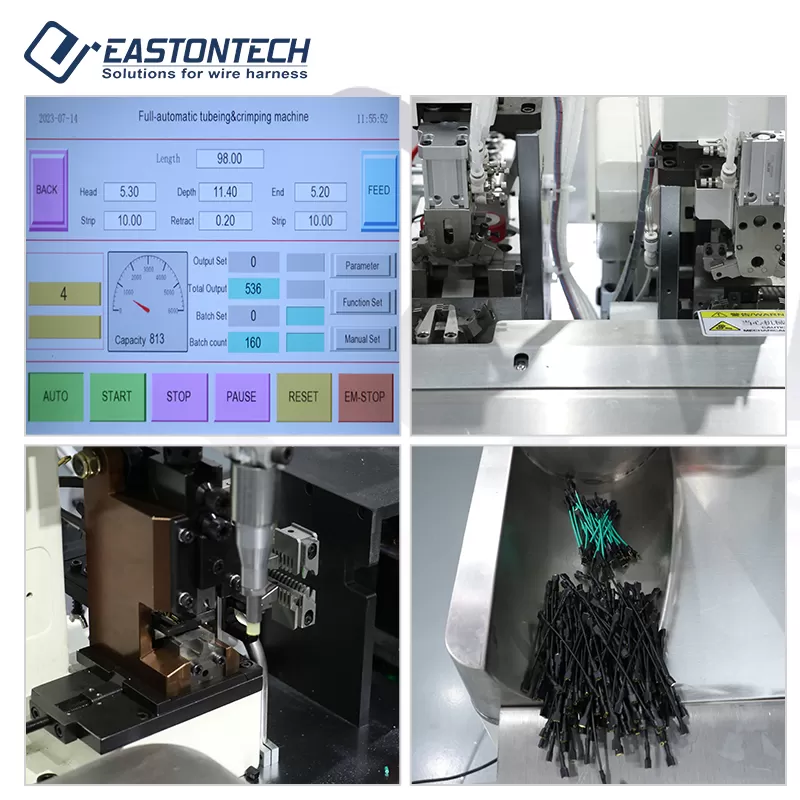

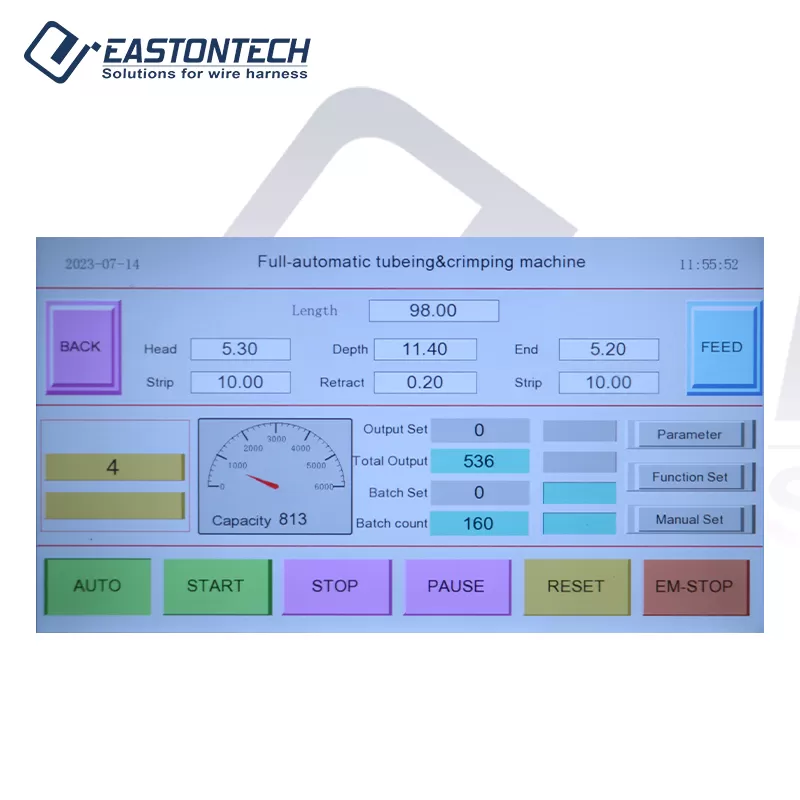

LCD Touch Screen

Supports Chinese and English dual language display,fully automatic computer programdesign, all operations are simple and clear.

01


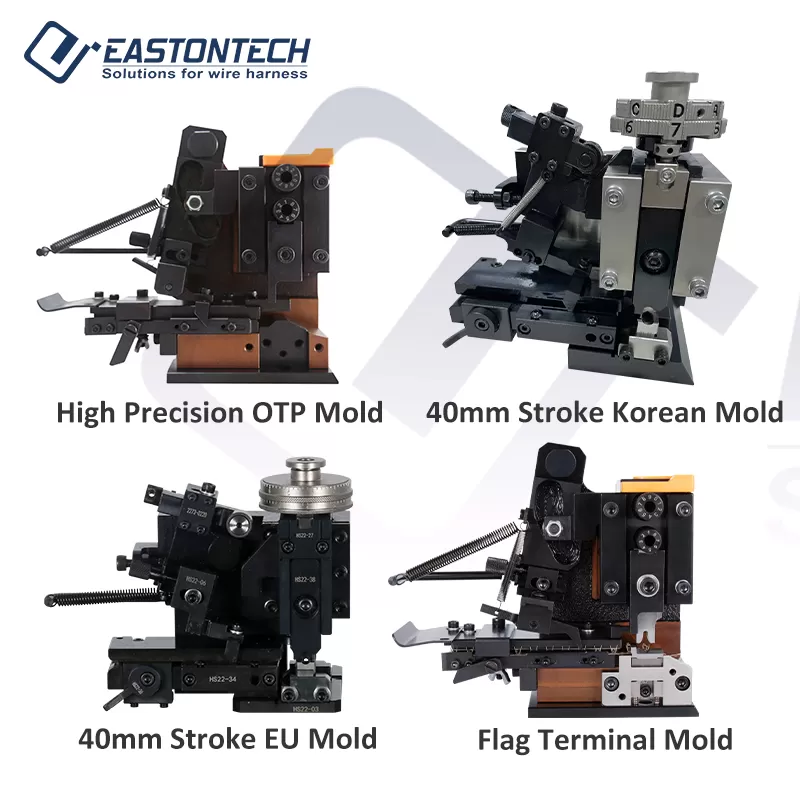

High Precision Mold

High-precision molds make processingmorestable and increases production speed.

02
